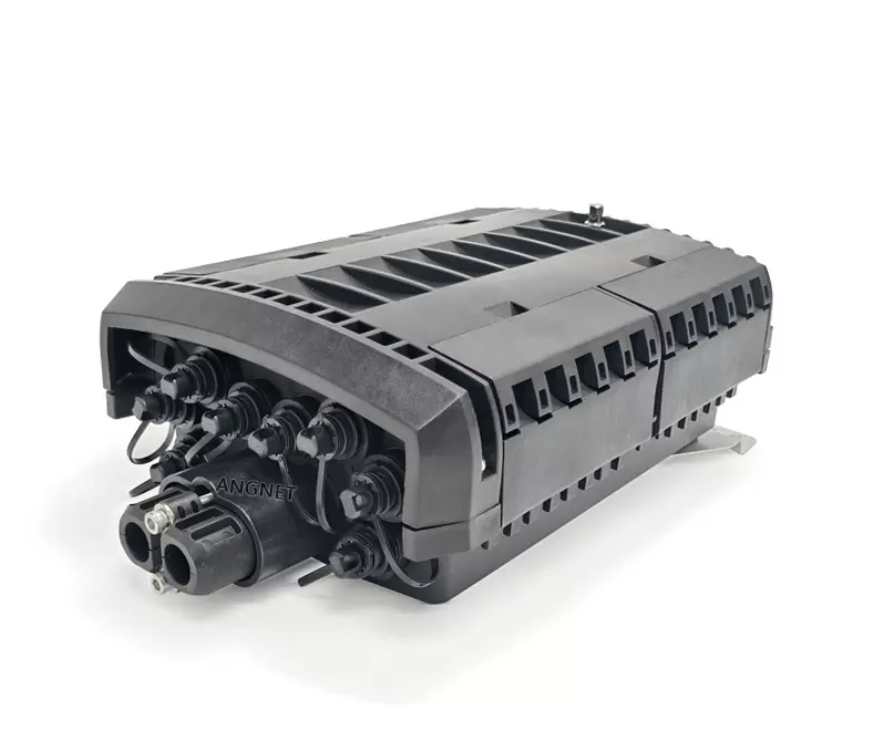

8 Port Optitap Hub Box-(FTB-8F-01)

Multiport Service Terminal MSTs is a new economic fiber distributed solution for outdoor use. Compared to traditional products, FiberHub is easy to operate and has high compatibility. It can be used for wall mounting, aerial installation, or holding pole installation, based on different situations.MSTs are not only used in the FTTH field, but also used in FTTA or other harsh environment fields.

Product details

Product Descritpiton:

The closure is available in multiple port configurations, including 2-port, 4-port, and 8-port options. It supports pole-mounting, underground, aerial, and pedestal installations, making it suitable for a wide range of FTTH deployment scenarios.

Technical features:

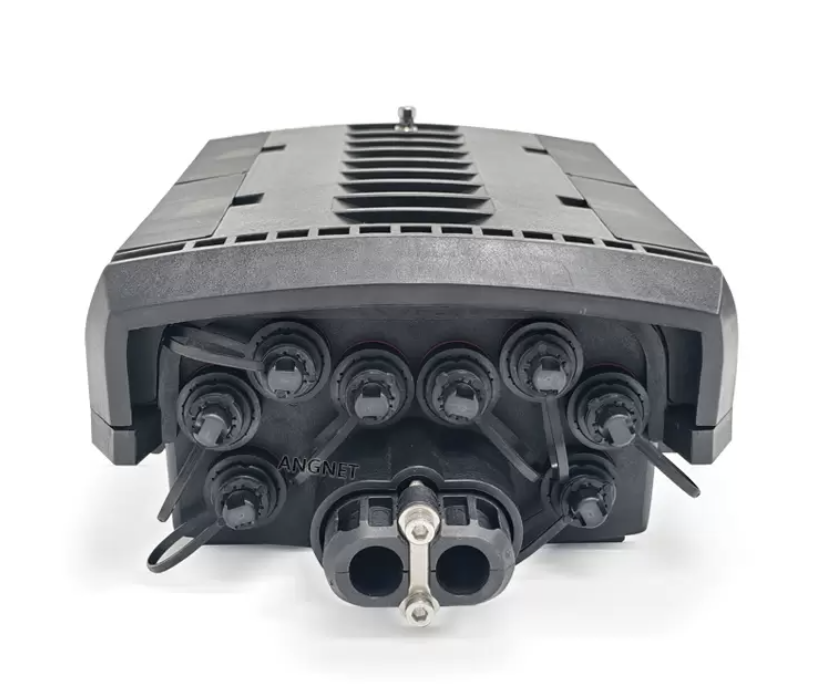

  • Front panel with adaptor interface compatible with Optitap hardened connectors
  • Supports plug and play connection with pre-connectorized male connectors
  • Available in 2 port, 4 port and 8 port configuration
  • Suitable for pole/aerial/wall mounted and underground installation
  • IP-68 waterproof protection

Application

  • FTTH.
  • Outdoor areas
  • Harsh environment

Technical specification

Technical paramter:

ModelFTB-8F-01
MaterialPP+GF
Dimensions380(L)×245(W)×130(H) mm
Weight (kg)3.2-3.5
Sealing TypeMechanical Seal
Protection GradeIP68
Cable portsInlet:1 Oval port
Cable diameterФ8-14mm,Ф14-18mm

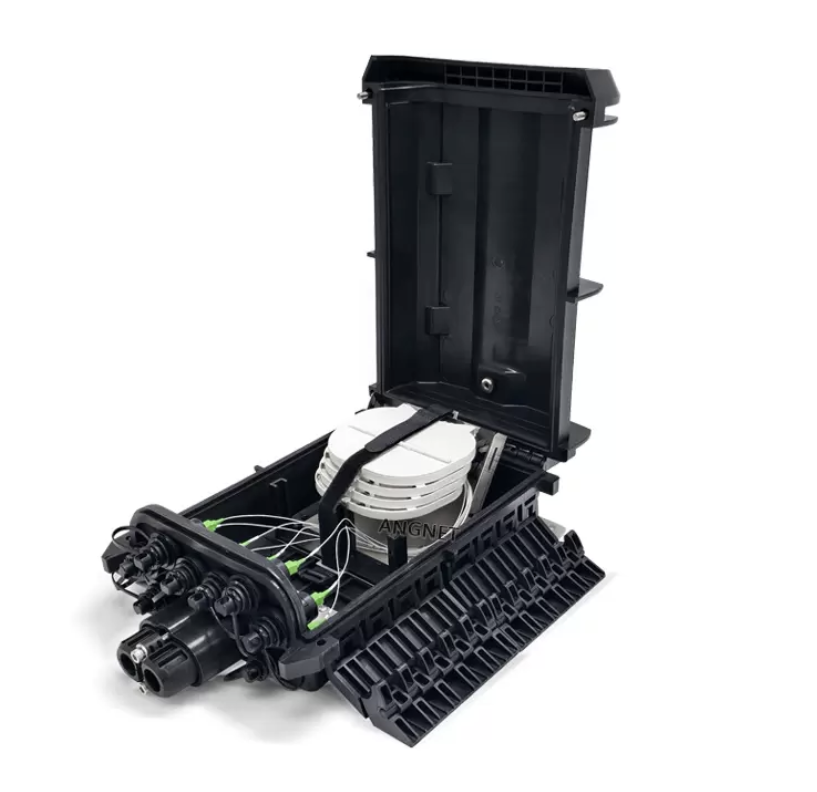

Fiber Splice Capacity96F
Tray Capacity24F
SplitterEach tray meet 1:8 mini PLC
Connector8 pcs (Optitap)
ApplicationAerial/Wall/Manhole mounting

Packaging data

ModeFTB 8F-01
Inner carton size395*255*165mmOuter carton size540*410*375mm(4PCS)
Pallet size1100*850*120Outer carton G.W19.5KG
