Product feature
Technical features:
- Be made of high quality engineering plastic
- Application cable diameter(Φ5mm～Φ20mm)
- For straight and branching application
- Four cable ports: two inlet and two outlet

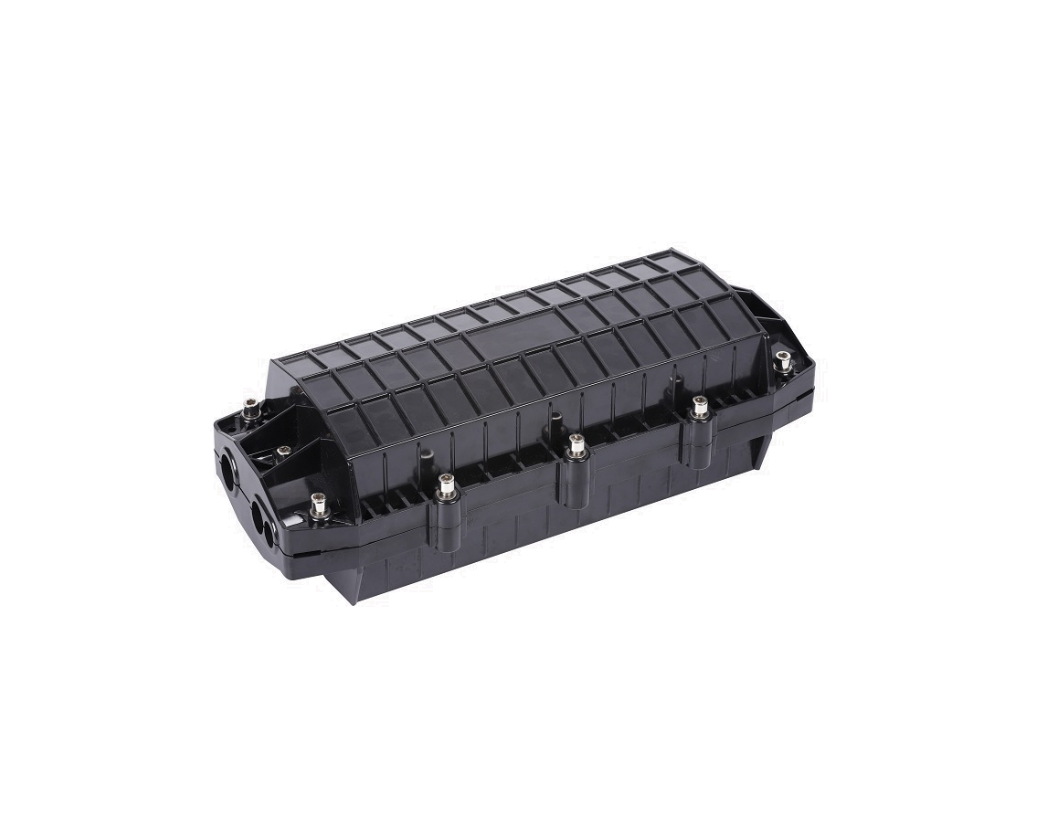

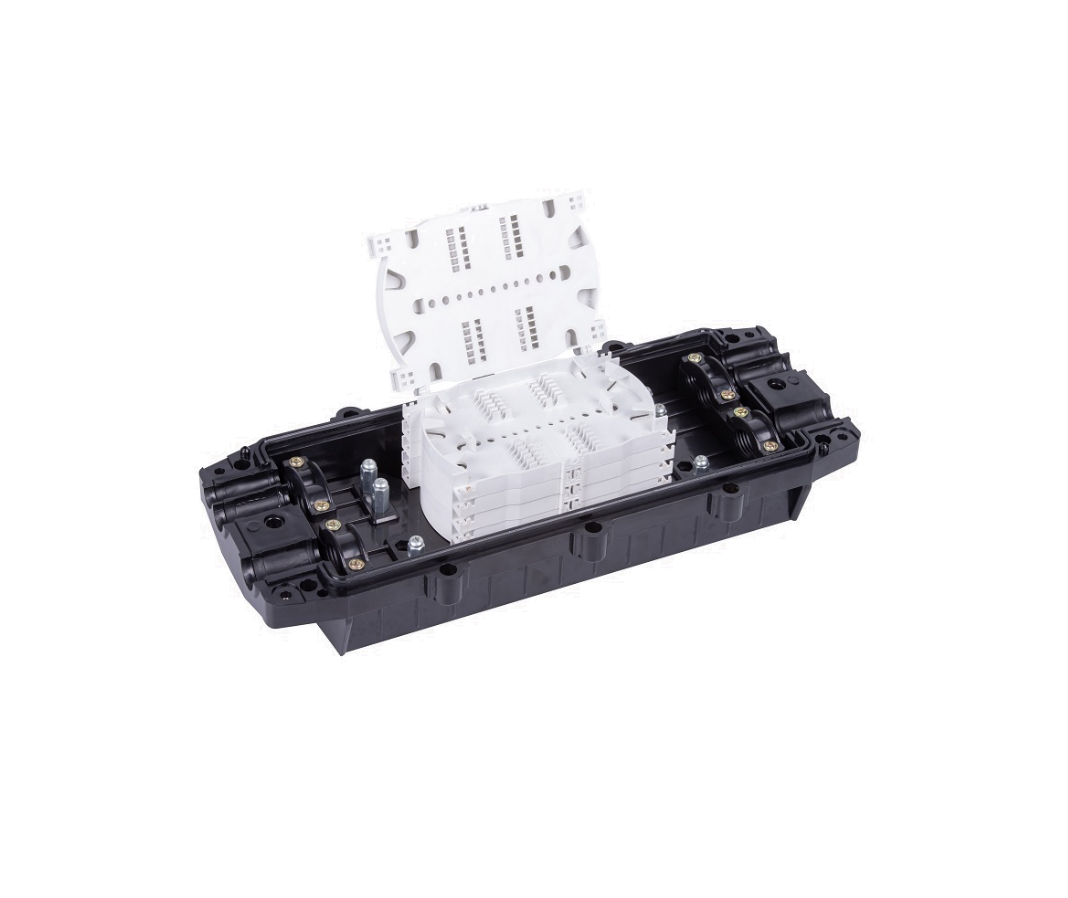

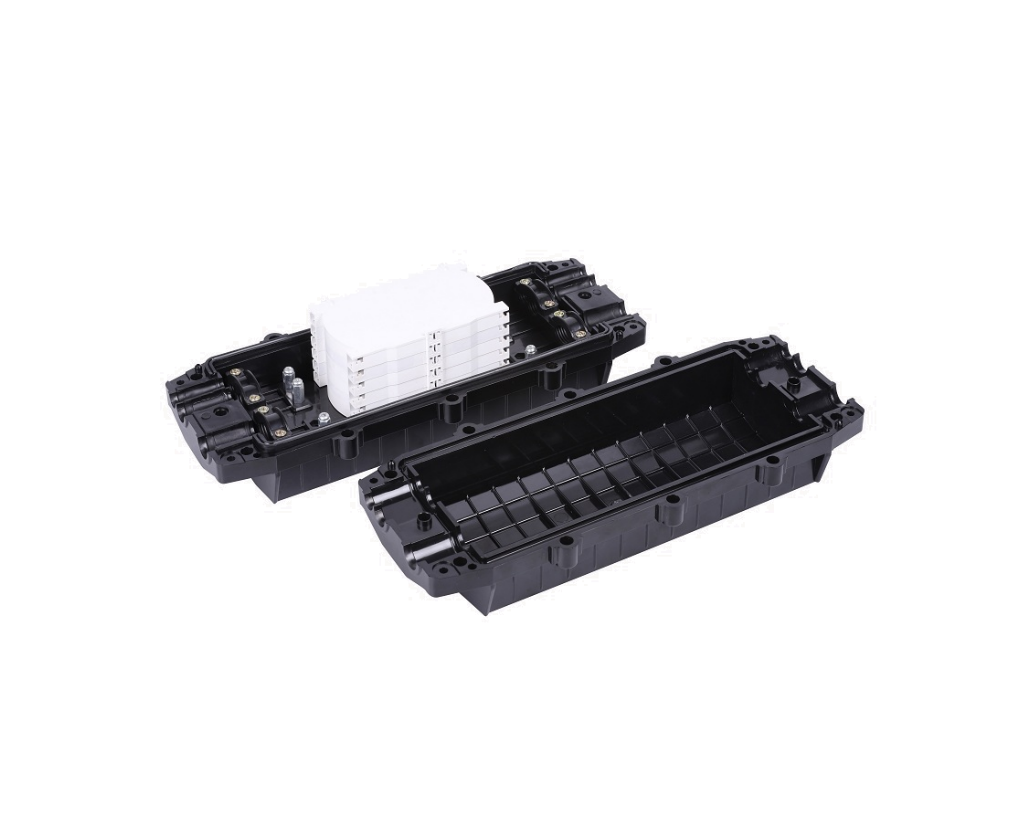

144 Cores In-line Fiber Splicing Closure
The Model No. SC-H144-02 in-line fiber closure is designed for straight-through line, branching applications, ensuring protection from the environment and is suitable for underground, wall mounting, duct mounting and manhole mounting deployment.
Technical specification
| Mode | SC-H014-02 | ||
|---|---|---|---|
| Dimension | W430*L182*H124mm | Weight | 2.7Kg |
| Material | PC+ABS/PP | Sealing mode | Mechanical |
| Cable ports | Inlet port: 3pcs | Innet cable diameter | Φ15mm～Φ21mm |
| Outlet port: 3pcs | Outlet cable diameter | Φ15mm～Φ21mm | |
| Splice tray | 24C | Max capacity | 144C |
| Waterproof | IP68 | Installation mode | Aerial/Wall/ Underground mounting |
Packaging data
| Mode | SC-H144-02 | |||
|---|---|---|---|---|
| Inner carton size | 490*190*135mm | Outer carton size | 555*395*505mm(8PCS) | |
| Pallet size | 1120*1200*120 | Outer carton G.W | 22.5KG | |
