Introduction to 1×64 PLC Splitter SC APC

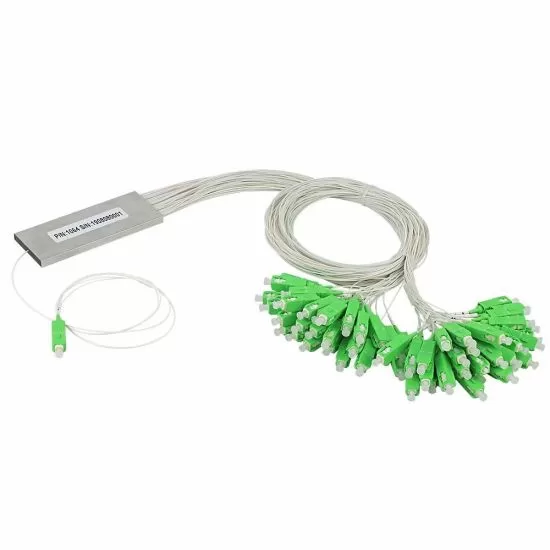

1×64 PLC Splitter SC APC feature low IL& PDL, high isolation suit for 1260nm~1650nm optical fiber signals’ splitter and distributing in PON networks. 1×64 PLC Splitter SC APC Blockless with one input and 64 output, assembled with 65 units SC/APC fiber optic connectors. 1×64 PLC Splitter SC APC use the G657A fiber and the max bending radius of the fiber is 15mm. 1×64 PLC Splitter SC APC directly with 2.0mm fiber terminals, tail length according to customer specified.
Applications
- LAN, WAN & Metro Networks
- Telecommunication Networks
- Passive Optical Networks
- FTT(X) Systems
- CATV
- Value Added Module
1×64 PLC Splitter SC APC Specifications
| Configuration Type | 1×64 |
| PLC Splitter Type | Blockless PLC Splitter |
| Connector Type | SC/APC |
| Fiber Type | Single Mode G657A1 or G652D |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | Blockless Steel Tube |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9mm |
| Typical Insertion Loss (≤) dB | 19.7 |
| Insertion Loss (≤) dB | 21.2 |
| Loss Uniformity (≤) dB | 2.5 |
| Polarization Dependent Loss (≤) dB | 0.4 |
| Wavelength Dependent Loss (≤) dB | 0.8 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 1 |
FAQs on 1×64 PLC Splitter SC APC
Is this splitter waterproof?
Thanks for your question, the PLC splitters we provide cannot achieve waterproof coefficient, sorry for that.
