Introduction to 1×64 PLC Splitter

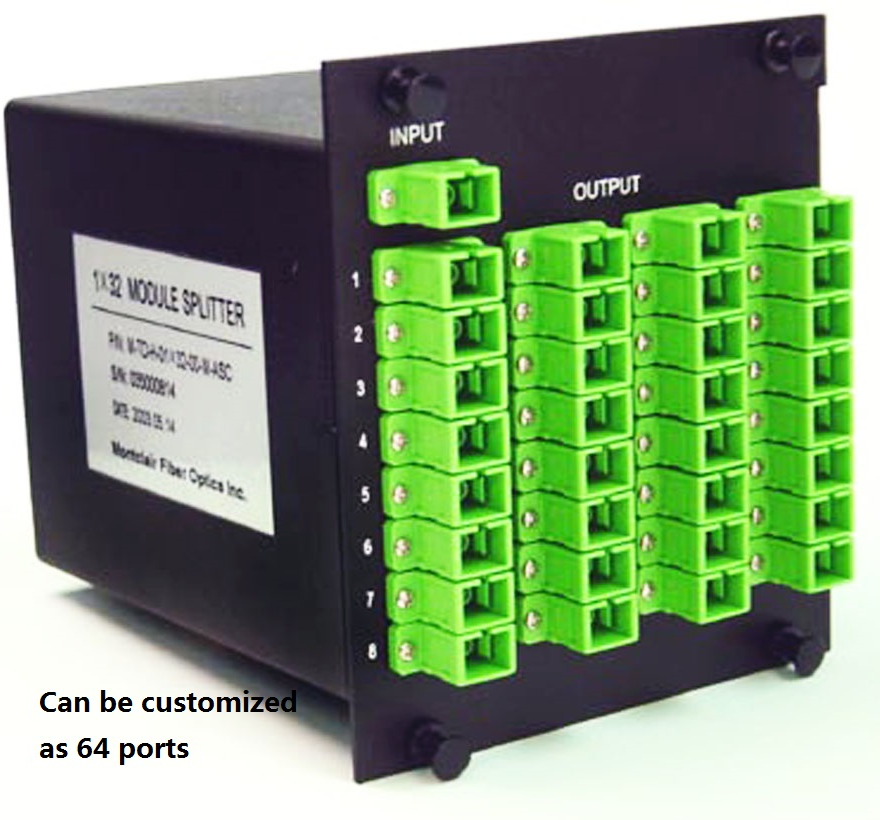

1×64 Fiber PLC Splitter with micro-package and SMF-28e single fiber terminal, tail length according to client’s specified. 1×64 Fiber PLC Splitter featured low IL& PDL, high isolation suit for 1260nm~1650nm optical fiber signals’ splitter and distributing in PON networks. 1×64 Fiber PLC Splitter with one input and 16 output. 1×64 PLC Splitter LGX Module is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
Application:
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
1×64 PLC Splitter Specifications
| Configuration Type | 1×64 |
| PLC Splitter Type | LGX Module PLC Splitter |
| Connector Type | SC/UPC |
| Fiber Type | Single Mode G657A1 or G652D |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | LGX Module |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9mm |
| Typical Insertion Loss (≤) dB | 16.2 |
| Insertion Loss (≤) dB | 17.1 |
| Loss Uniformity (≤) dB | 1.5 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |
FAQs on 1×64 PLC Splitter
Is this splitter waterproof?
Thanks for your question, the PLC splitters we provide cannot achieve waterproof coefficient, sorry for that.
