Introduction to 1×8 PLC Splitter

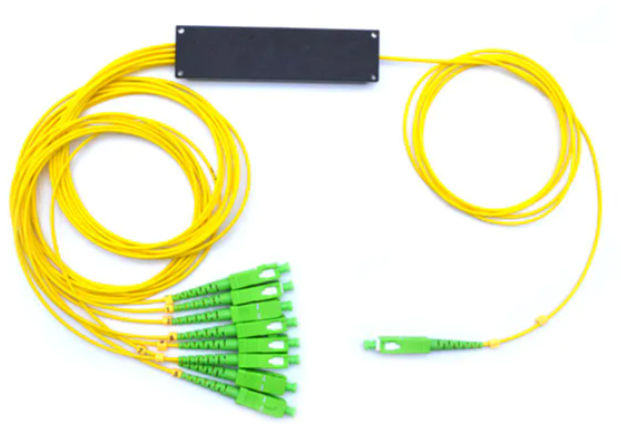

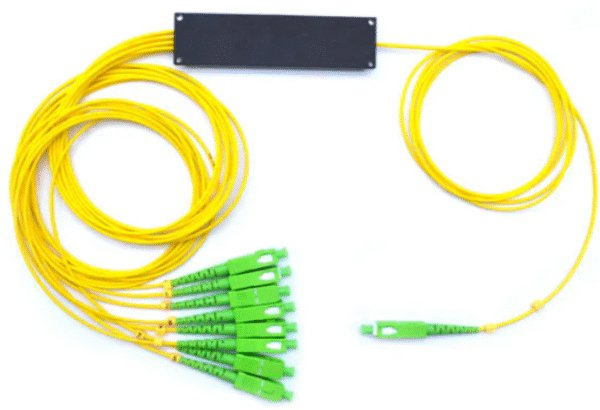

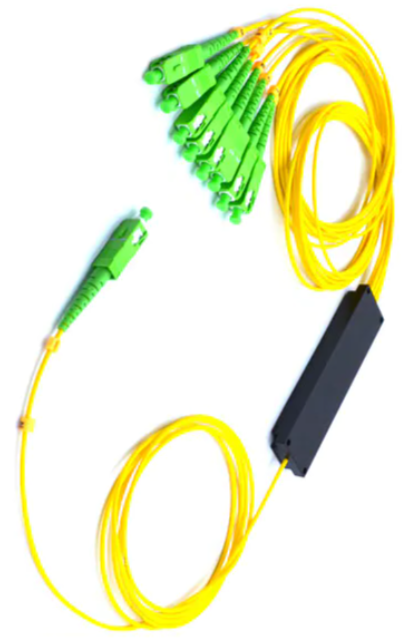

1×8 PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

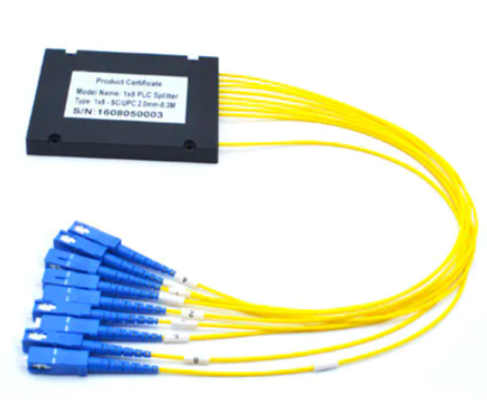

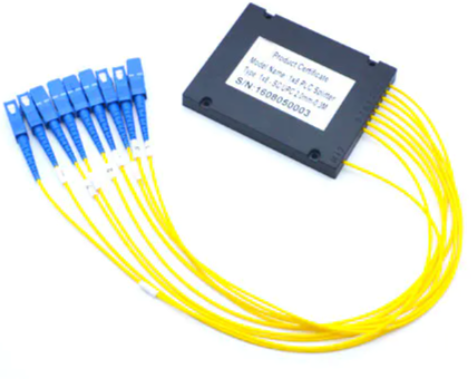

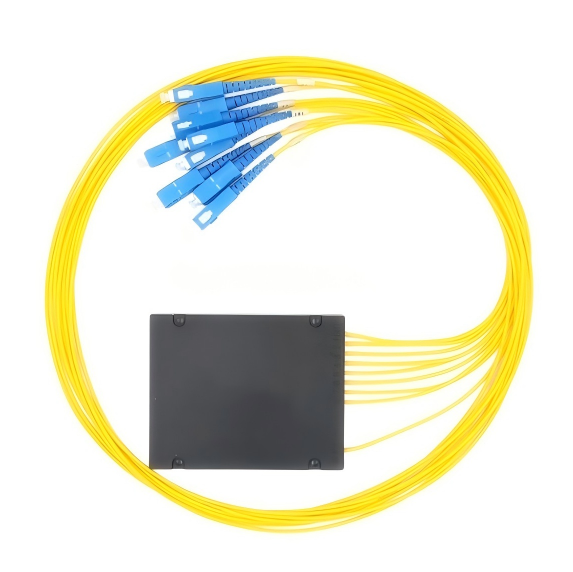

1×8 PLC Splitter ABS Box is most commonly used in the PON networks. 1×8 PLC Splitter provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but 1×8 PLC Splitter ABS Box volume is relatively large. 1×8 PLC Splitter mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.
Applications
- LAN, WAN & Metro Networks
- Telecommunication Networks
- Passive Optical Networks
- FTT(X) Systems
- CATV
- Value Added Module
1×8 PLC Splitter Specifications
| Configuration Type | 1×8 |
| PLC Splitter Type | ABS Box PLC Splitter |
| Connector Type | SC/APC |
| Fiber Type | Single Mode G657A1 or G652D |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | Blockless Steel Tube |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9mm |
| Typical Insertion Loss (≤) dB | 10.2 |
| Insertion Loss (≤) dB | 10.7 |
| Loss Uniformity (≤) dB | 0.4 |
| Polarization Dependent Loss (≤) dB | 0.2 |
| Wavelength Dependent Loss (≤) dB | 0.3 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.5 |
FAQs on 1×8 PLC Splitter
Does this splitter can be used in OM1 application?
No, it doesn’t. Our PLC splitters only support single mode application, and the fiber type is G657A1, if you want multimode splitters, please refer to FBT Coupler Splitters.
