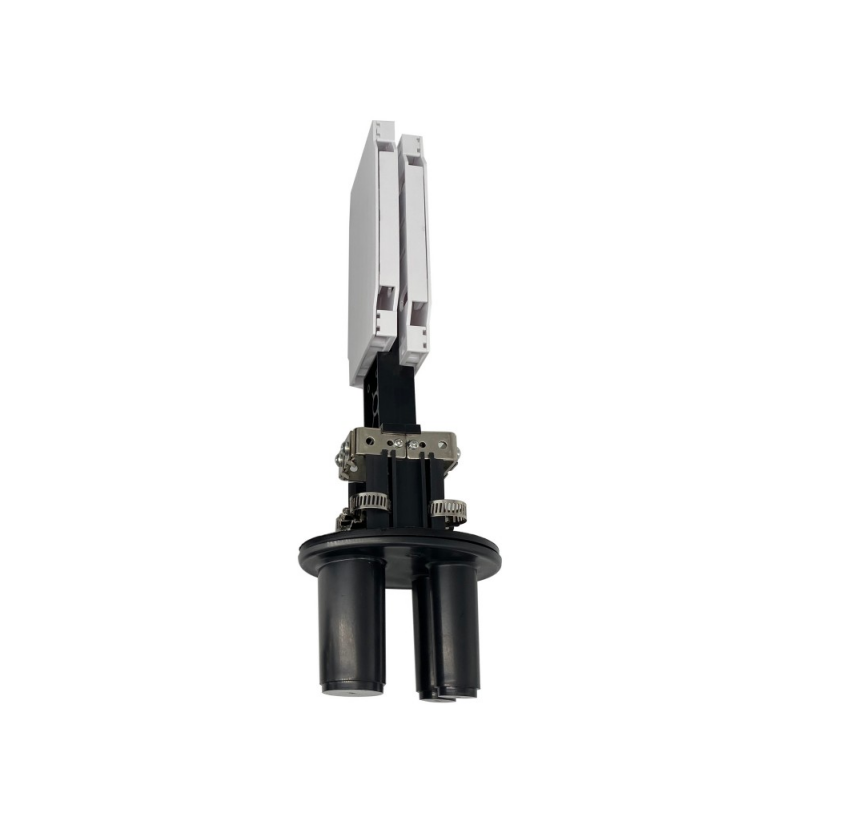

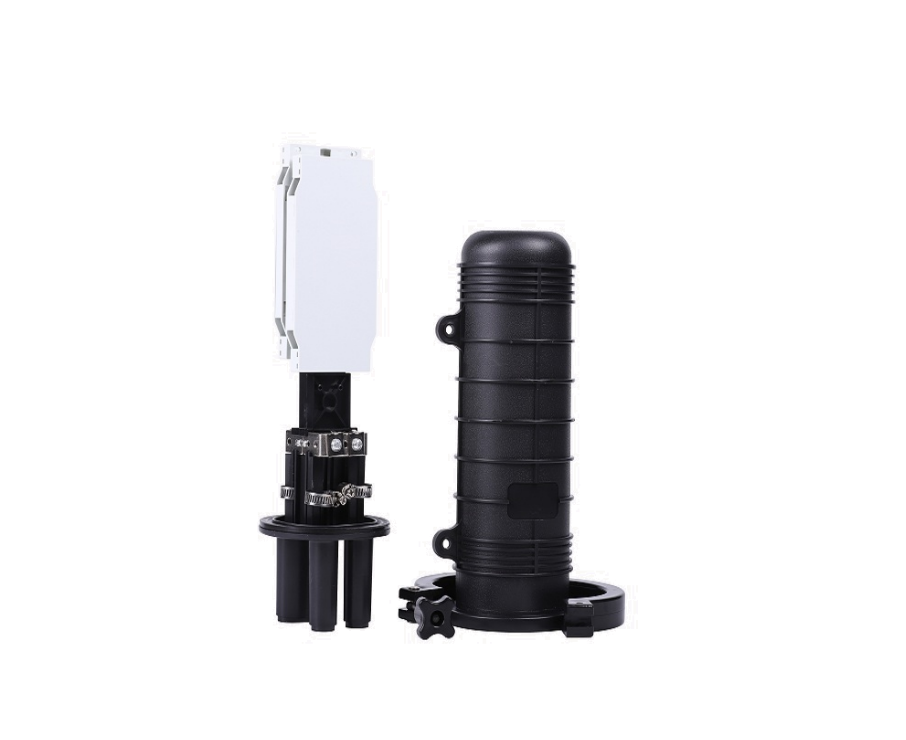

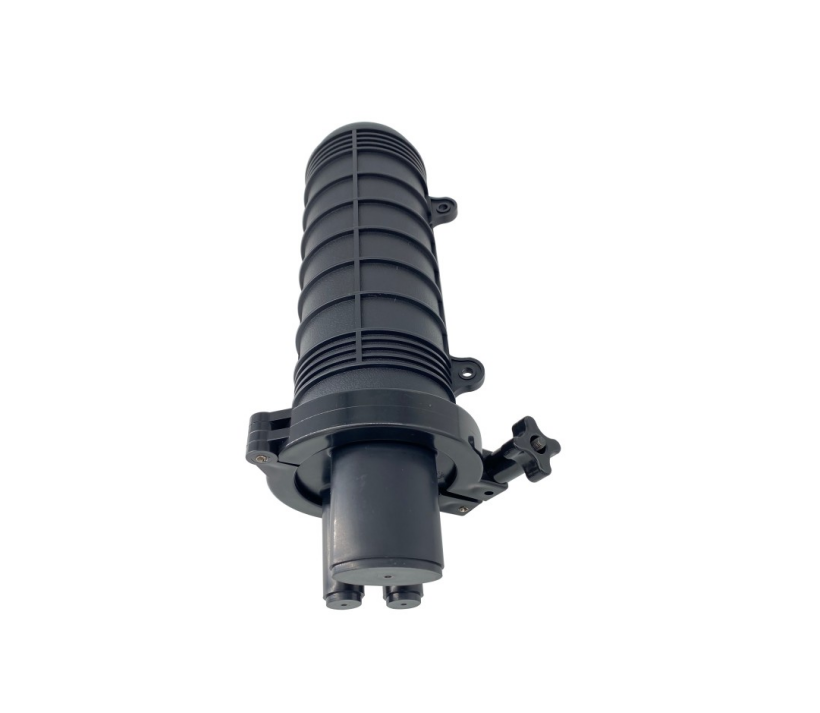

The Model SC-D024-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
.
Technical features:

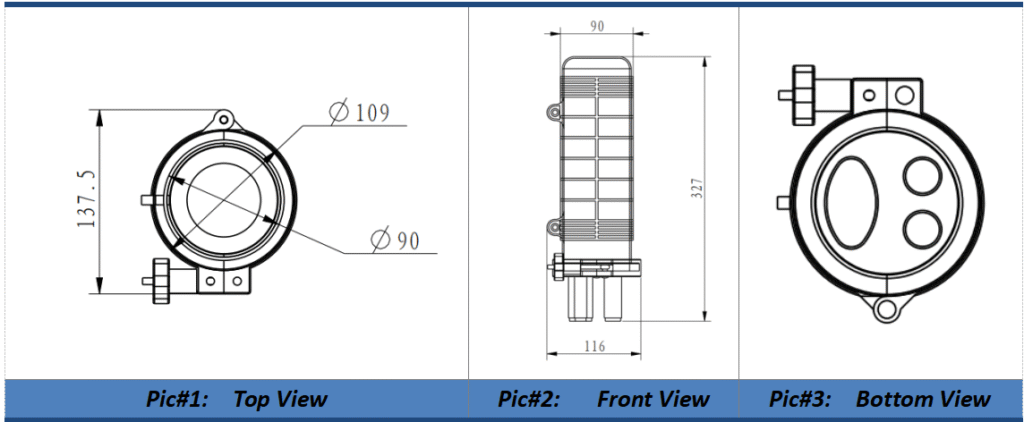

Dimension diagram:
| Mode | SC-D024-01 | ||
|---|---|---|---|
| Dimension | 327*Ф90 | Weight | 0.85Kg |
| Material | PC/PC+ABS/PP | Sealing mode | Heat shrink |
| Cable ports | Oval port: 1pcs | Innet cable diameter | Φ10mm～Φ18mm |
| Branch port: 2pcs | Outlet cable diameter | Φ8mm～Φ15mm | |
| Splice tray | 12C | Max capacity | 24C |
| Waterproof | IP68 | Installation mode | Aerial/Wall/Pole mounting |
| Mode | SC-D024-01 | |||
|---|---|---|---|---|
| Inner carton size | 340*160*130mm | Outer carton size | 665*355*495mm(15PCS) | |
| Pallet size | 1030*1030*120 | Outer carton G.W | 13.5KG | |
