Product details

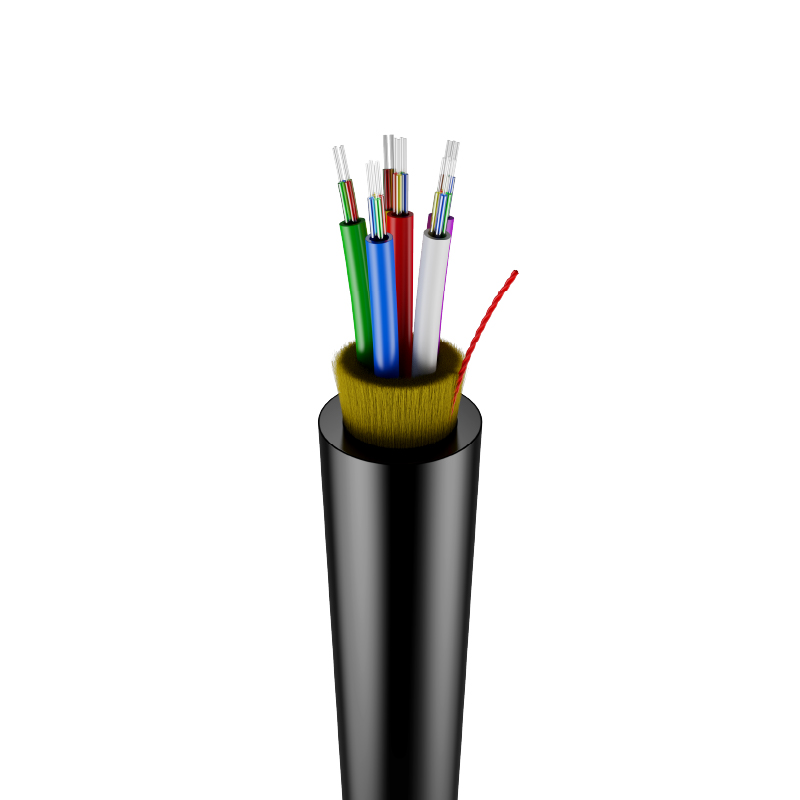

Micro-cluster indoor optical cables are used for vertically laying optical cables at indoor user access points and between floors. The dry design is easier to weld. The center of the micro-cluster optical cable uses FRP (rigid glass fiber) as the central tensile body. According to the number of users in the building, 2 cores/4 cores/6 cores/12 cores of different colors of optical fibers are placed in each cluster to form a micro-cluster (the so-called 2MB/4MB/6MB/12MB structure). Finally, Aramid Yarn (aromatic polyamide fiber) is added to enhance the tensile strength of the optical cable. The outer sheath uses low-smoke, halogen-free, environmentally friendly, and fire-safe materials.

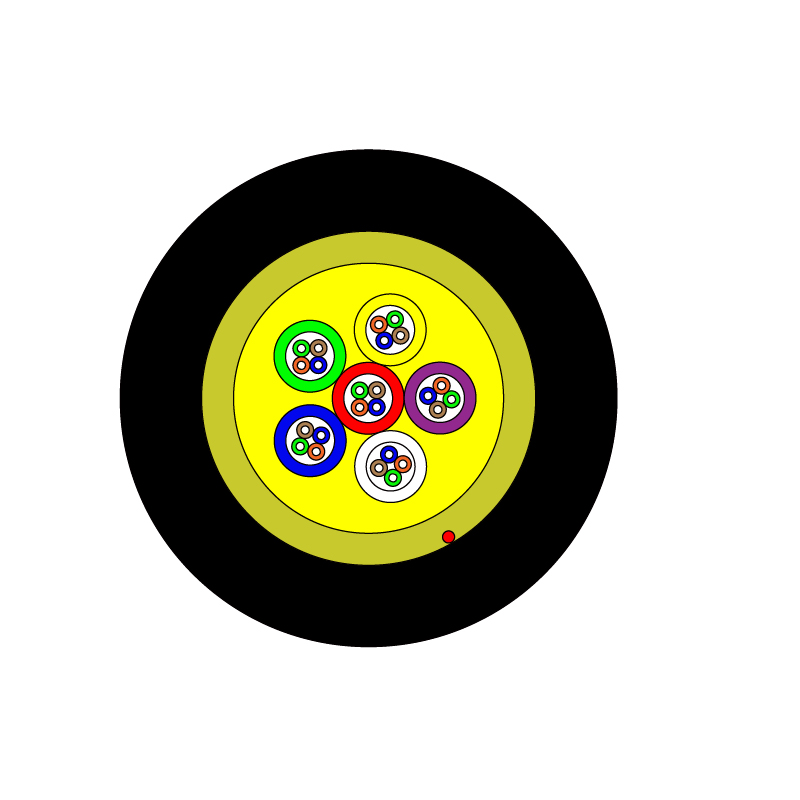

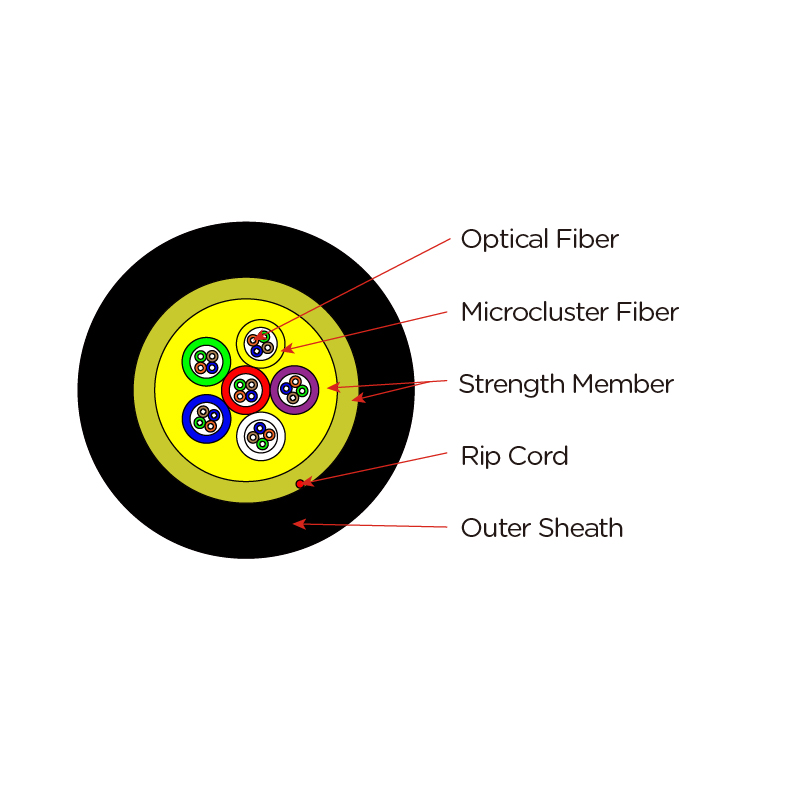

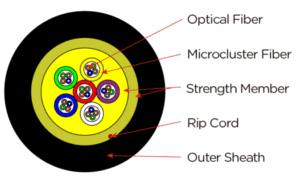

Cable section construction:
Product features:
- Non-metallic and environmentally friendly design with no internal glue filling.
- High-density optical cable with a small diameter and lightweight is easy to install and arrange.
- Single-mode, multi-mode, and micro-bend resistant optical fiber types are available.
- Fiber optic cables tend to split in the middle.
Product application:
- Vertical cabling use.
- FTTx indoor optical cable use.
- Fiber optic loop cabling.
- Data center access.
