Product details
Description

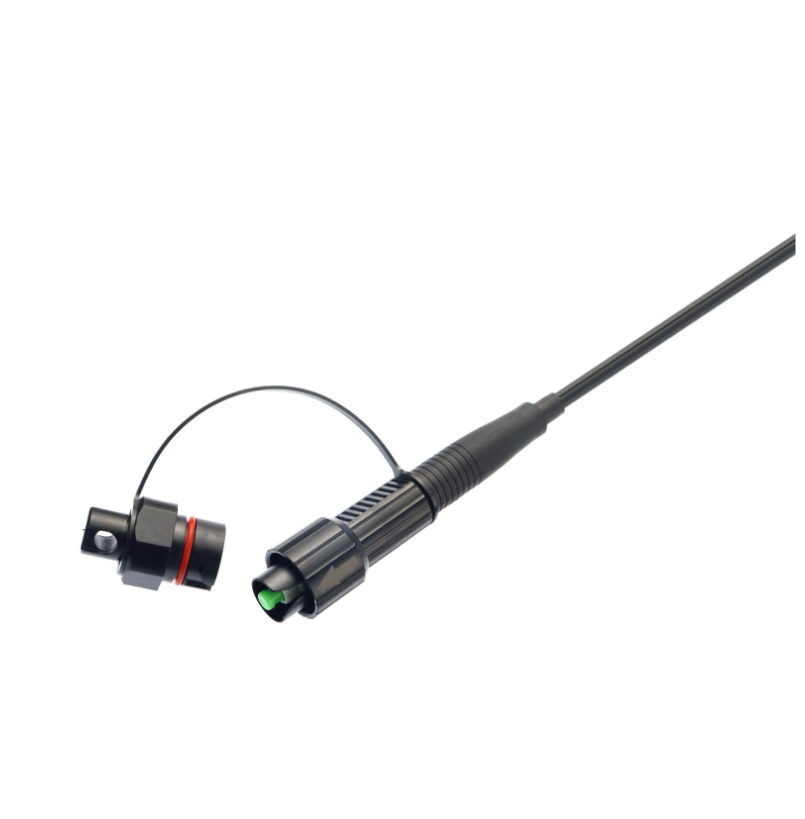

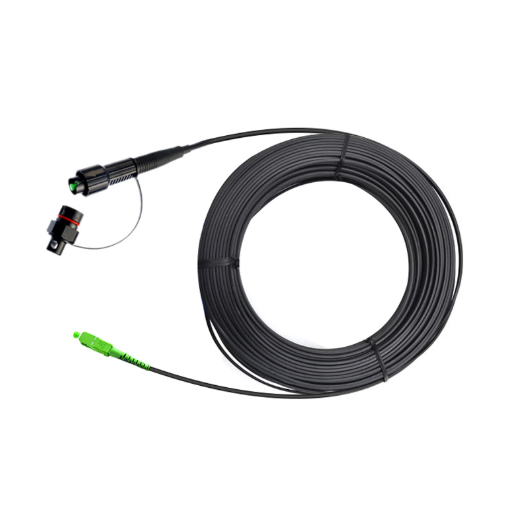

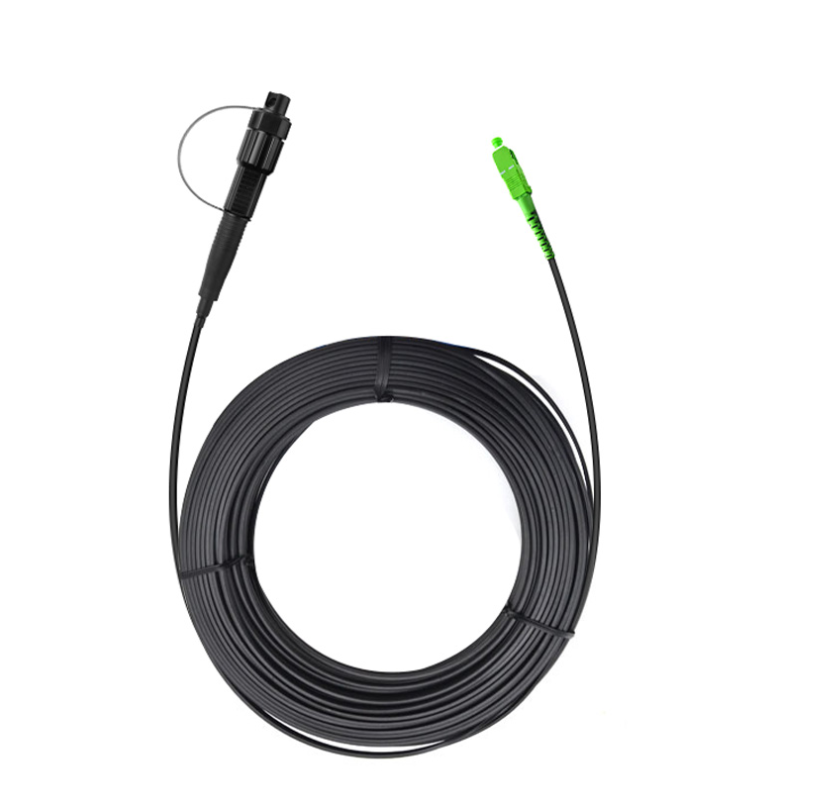

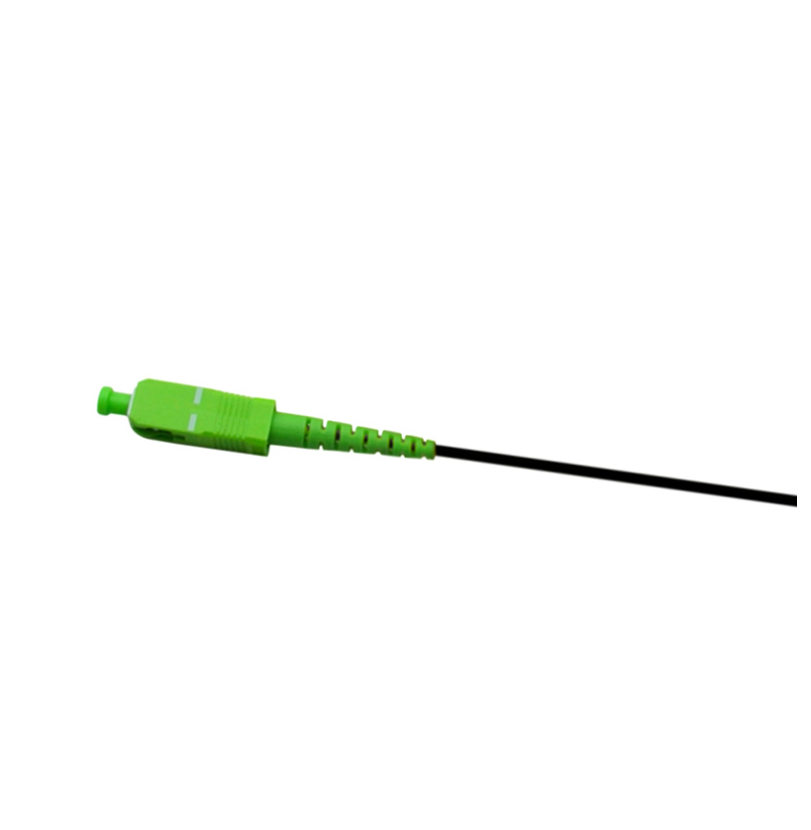

Mini SC connector assemblies provide a robust and sealed connection solution for fiber-to-the-home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round-style OSP cables, the hardened connector offers an ideal solution for direct burial, conduit, or aerial installations.
Product features
- Provides moisture and dust protection for use in harsh industrial environments.
- IP68 protection, salt-mist proof, humidity proof, dust proof.
- Drastically reduces field splicing with a predetermined loss at each waterproof tether access point. Reduce installation time by as much as 50 percent per network access point.
- 100% optically tested to ensure quality performance assemblies.
- “Available in single mode and multimode styles to work with any common fiber type.
- A broad temperature range (-40 to +70 °C) is ideal for indoor or outdoor applications.
- The spiral clamping mechanism ensures a long-term reliable connection.
- Guide mechanism can be inserted with one hand blind, simple and fast, connection installation.
Product application
- Optical fiber communication in a harsh outdoor environment
- Outdoor communication equipment connection
- Huawei SC waterproof fiber optic equipment port
- Pull far wireless base station
- FTTx wiring engineering
