Product feature
Technical features:
- Be made of high quality engineering plastic
- Application cable diameter(Φ5mm～Φ20mm)
- For straight and branching application
- Four cable ports: two inlet and two outlet

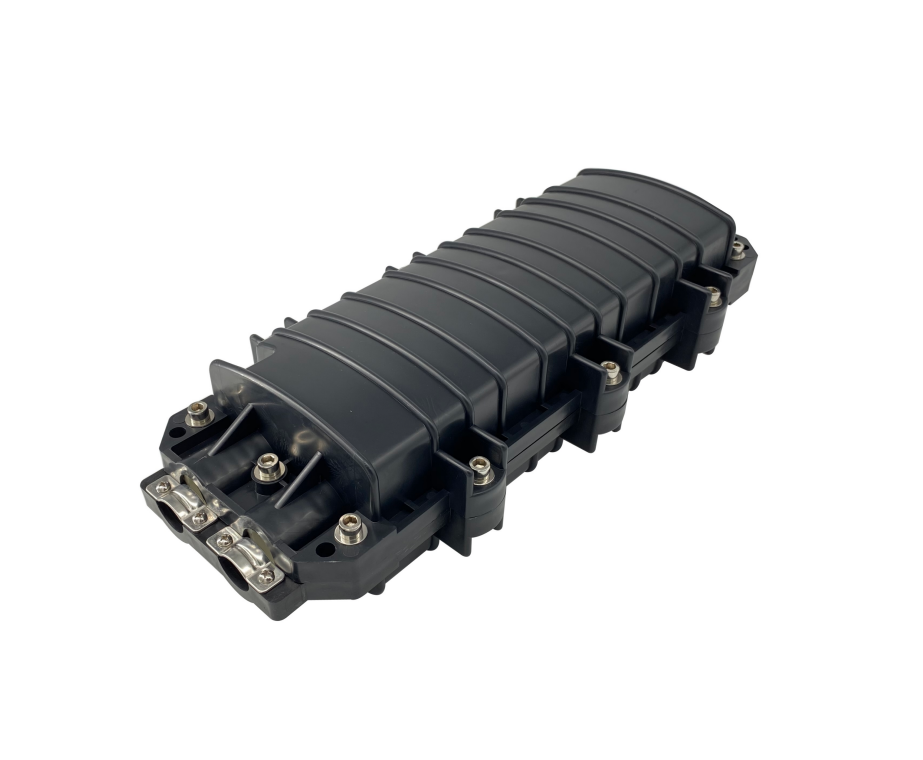

96F In-line Fiber Splicing Closure
The Model No. SC-H096-05 in-line fiber closure is designed for straight-through line, branching applications, ensuring protection from the environment and is suitable for underground, wall mounting, duct mounting and manhole mounting deployment.
Technical specification
| Mode | SC-H096-05 | ||
|---|---|---|---|

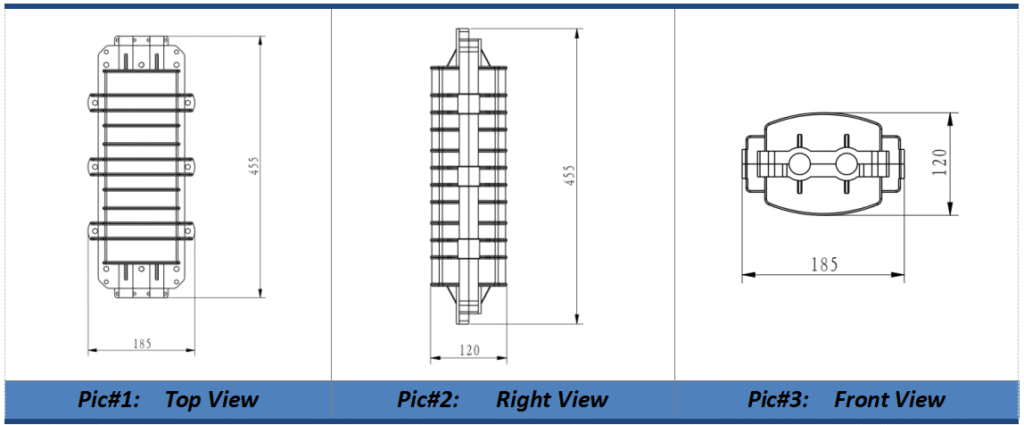

| Dimension | W440*L140*H105mm | Weight | 2.4Kg |
| Material | PC+ABS/PP | Sealing mode | Mechanical |
| Cable ports | Inlet port: 2pcs | Innet cable diameter | Φ8mm～Φ25mm |
| Outlet port: 2pcs | Outlet cable diameter | Φ8mm～Φ25mm | |

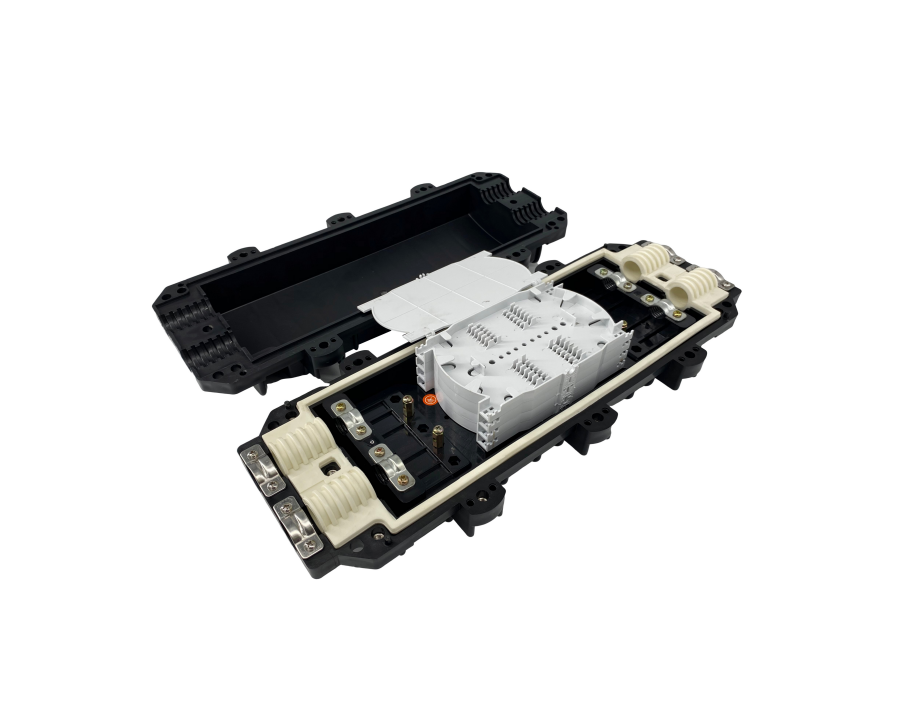

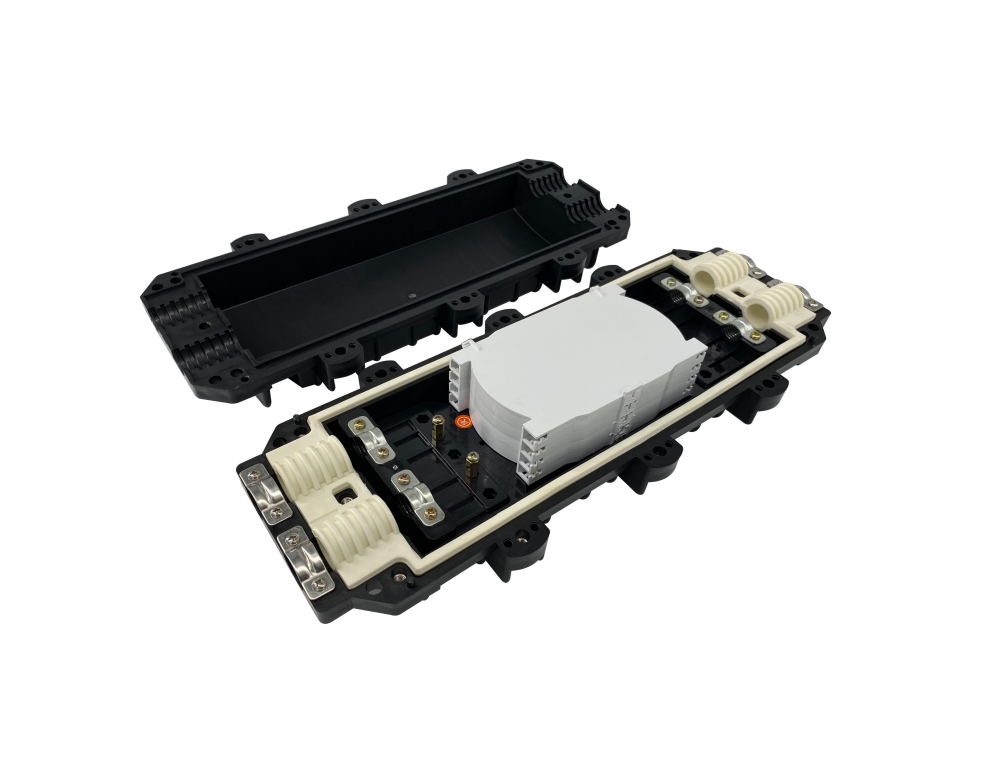

| Splice tray | 24C | Max capacity | 96C |
| Waterproof | IP68 | Installation mode | Aerial/Wall/ Underground mounting |
Packaging data
| Mode | SC-H096-05 | |||
|---|---|---|---|---|
| Inner carton size | 475*195*118mm | Outer carton size | 620*490*415mm(10PCS) | |
| Pallet size | 1120*1120*120 | Outer carton G.W | 25KG | |
