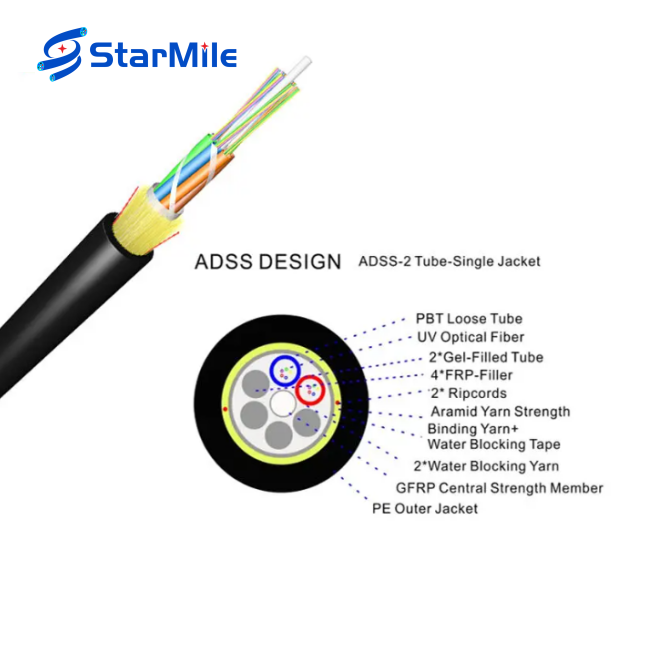

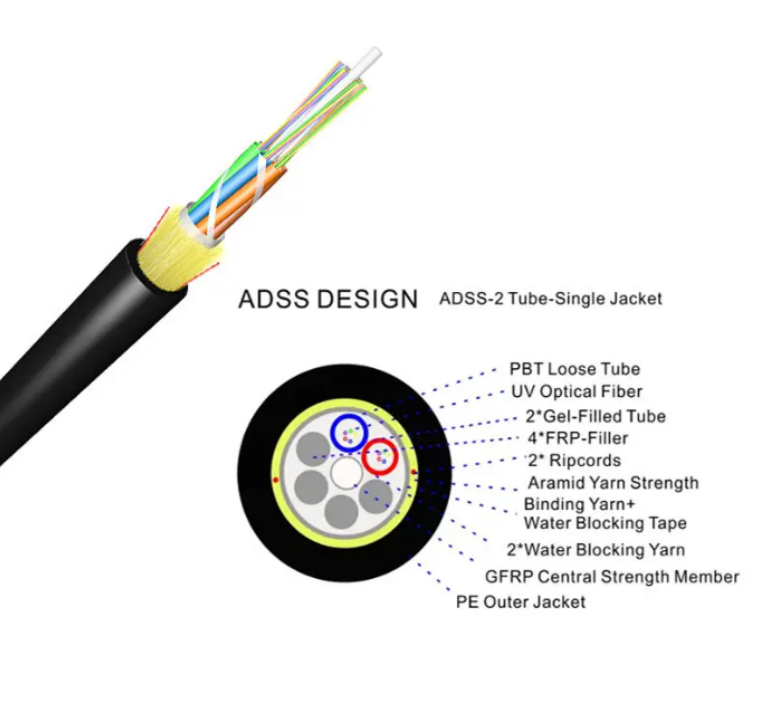

ADSS 12F 100M SPAN SM G652D Single Jacket Fiber Optical Cable
Max Span: 100m MAT=2700N
Max applied voltage: 110kv
Weather conditions: 25m/s wind speed + 0mm Ice Load

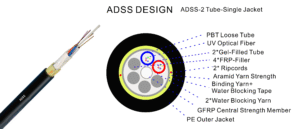

Item： Description
Fiber Optic： UV fiber G.652.D;@1310nm ≤0.35dB/km;
@1550nm ≤0.2dB/km;
Tube filling compound： Water Blocking & Moisture Proof Thyrotrophic gel
Loose tube： 1.8-2.0 mm PBT
Filler FRP： 1.8 mm LDPE / PP
Center strength member： 1.8 mm GFRP
Water blocking tape： 0.28mm thickness
Binder： 2 wires Polyester Yarns
Ripcords： 2 wires
Dielectric Strength Members： Aramid Yarns KEVLAR K49-3000D
Inner Jacket： 0.9-1.0mm thickness HDPE /MDPE
Outer Jacket： 1.6-2.0mm thickness HDPE /MDPE
Cable Out Diameter： 10.7±0.5mm
Cable Weight： 85±5kg
Length Cable/Spool： 3km or 4km (2% tolerance in more)
Temperature range： -20~+65℃
■ Standards:
ITU-T Rec. G.657A ISO9001
IEC 60794 ICEA-596
GR-409 YD/T 1997-2009
■ Colors -12 Chromatography:
■ Optical Characteristics:
Fiber Types:
1. G.652.D
2. G.655
3. 50/125μm Multimode
4. 62.5/125μm Multimode
Attenuation:
@850nm (Short wavelength)
o 50/125μm: ≤ 3.0 dB/km
o 62.5/125μm: ≤ 3.0 dB/km
@1300nm (Longer wavelength)
o 50/125μm: ≤ 1.0 dB/km
o 62.5/125μm: ≤ 1.0 dB/km
@1310nm (Standard transmission wavelength for single-mode)
o G.652.D: ≤ 0.36 dB/km
o G.655: ≤ 0.40 dB/km
@1550nm (Longest transmission wavelength, most efficient for long-distance transmission)
o G.652.D: ≤ 0.22 dB/km
o G.655: ≤ 0.23 dB/km
Bandwidth:
@850nm (High bandwidth for multimode)
o 50/125μm: ≥ 500 MHz·km
o 62.5/125μm: ≥ 200 MHz·km
@1300nm (Optimal for multimode fiber)
o 50/125μm: ≥ 1000 MHz·km
o 62.5/125μm: ≥ 600 MHz·km
Polarization Mode Dispersion (PMD):
· Individual fiber (Related to signal dispersion in fiber)
o G.652.D: ≤ 0.20 ps/√km
o G.655: ≤ 0.20 ps/√km
Design Link Value (M=20, Q=0.01%):
· G.652.D: ≤ 0.10 ps/√km
· G.655: ≤ 0.10 ps/√km
■ Technical Data:
Fiber Contents:
· Fiber Count Options:
o 6, 12, 24, 48, 72, 96, 144, 288 fibers
Loose Tube Configuration:
· Tubes per Fiber Count:
o 6 fibers: 1×6, 2×6, 4×6
o 8 fibers: 6×8
o 12 fibers: 4×12, 6×12, 8×12, 12×12
o 24 fibers: 24×12
Outer Diameter of Loose Tubes:
· Outer Diameter (mm):
o 1.8, 2.0, 2.5
o Adjustable (OEM): 1.5|2.0, 1.8|2.3, 2.1|2.3
Central Strength Member:
· Material: Glass Fiber Reinforced Plastic Rod (GFRP)
· Diameter (mm):
o Standard: 2.0, 2.5, 2.8, 3.7
o Adjustable (OEM): 1.8|2.3, 1.8|2.3, 2.5, 2.8, 3.7, 2.6
· PE Coated Diameter:
o No: Not PE coated for certain configurations
o Yes: PE coating on central strength member for specific designs
Water Blocking:
· Material: Water blocking tape for preventing water infiltration
Peripheral Strength Member:
· Material: Aramid Yarn for enhanced strength and protection
Outer Sheath:
· Thickness:
o Standard: 1.8mm (1.5-2.0mm for OEM)
· Cable Diameter (Approx.):
o 6 fibers: 9.5mm
o 12 fibers: 9.5mm|10mm
o 24 fibers: 12.2mm
o 48 fibers: 13.9mm
o 72 fibers: 17.1mm
o 96 fibers: 20.2mm
o Adjustable (OEM): 8.0|8.5|9.0|10.5|11.0mm
Operating Temperature Range:
· Range: -40°C to +70°C
Maximum Span:
· Span Options:
o 50m, 80m, 100m, 120m, 150m
Climate Conditions:
· No Ice: No ice formation is considered in design
· Maximum Wind Speed: 25m/s
MAT (Mechanical Test):
· Design Customization: Tailored according to customer-specific requirements
√ Other structure and fibre count are also available according to customer requirements.
√ Cable diameter and weight in this table is typical value, which will fluctuate according to different designs
√ The span needs to be recalculated due to other climate conditions according to the installation area.
