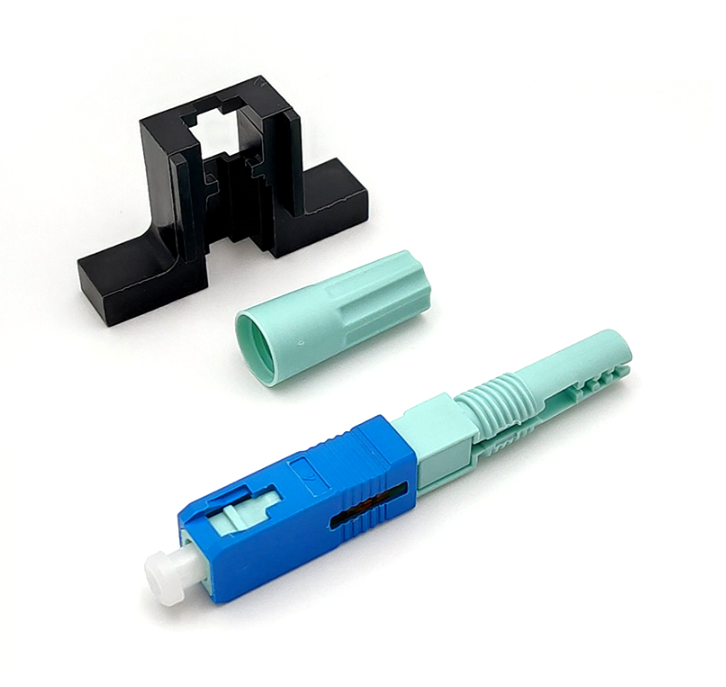

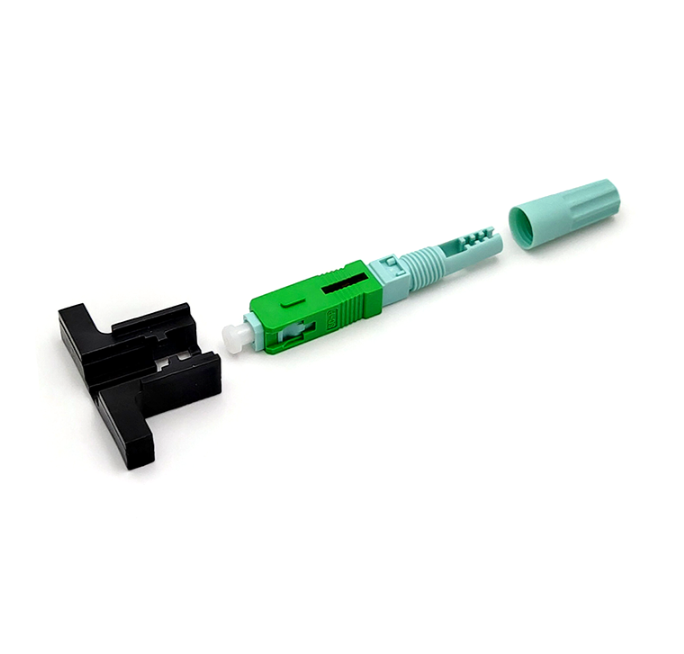

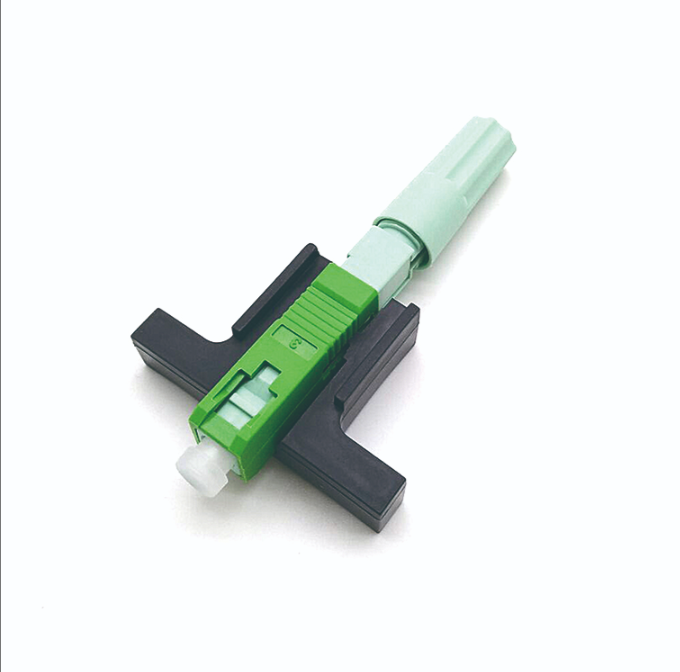

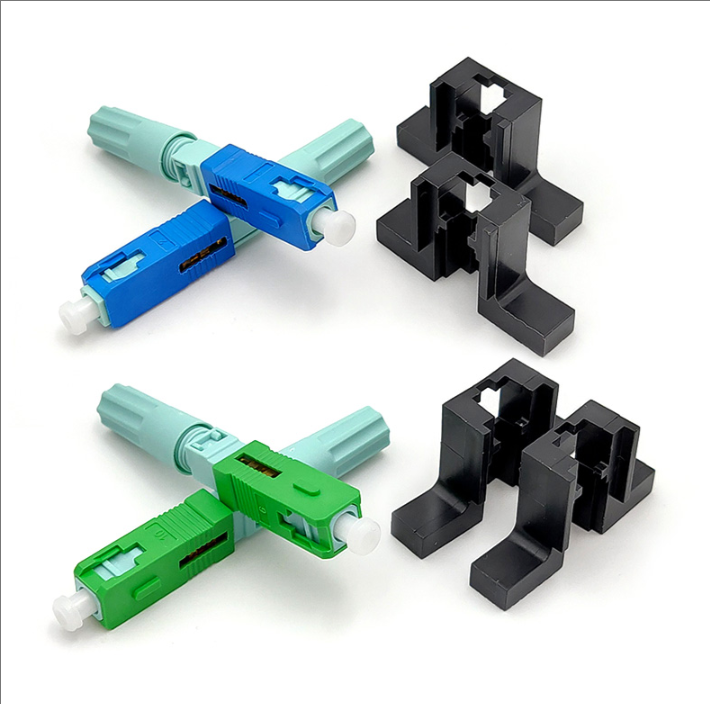

Aircraft Spiral SC Optic Fiber Fast Connector Assembly On-Site Fast Connector
They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is HW adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.
Aircraft Spiral SC Optic Fiber Fast Connector Assembly On-Site Fast Connector Features:
- Low insertion loss and high return loss.
- Excellent end-face geometry parameter.
- Easy to operate, high reliability.
Aircraft Spiral SC Optic Fiber Fast Connector Assembly On-Site Fast Connector Application Scenarios:
- FTTH、FTTR and FTTX
- Image transmission Networks
- Optical test instrument
- Photoelectric automatic control system
Aircraft Spiral SC Optic Fiber Fast Connector Assembly On-Site Fast Connector Technical Specifications:

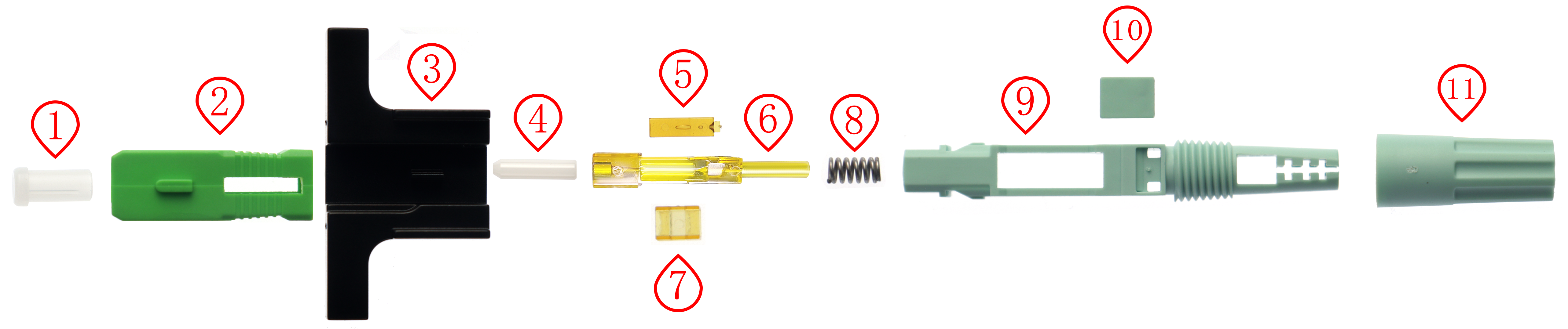

- Material
| SN | Part Name | Material | Remarks |
| 1 | Dust Cap | PE | Consistent with ROHS、REACH |
| 2 | Housing | PBT | |
| 3 | Opener | PC | |
| 4 | Ceramic Ferrule | Zirconia ceramics | |
| 5 | V-groove cover plate | PEI | |
| 6 | Fiber optic V-groove | PEI | |
| 7 | Fiber locking mechanism | PEI | |
| 8 | Spring | SUS304 | |
| 9 | Main-body | PC | |
| 10 | Spring cap | PC | |
| 11 | Tail sleeve | PC |
- Performance characteristics
| SN | Project | Index | Remarks |
| 1 | Applicable for | Indoor or Outdoor FTTH | Consistent with GR-326-CORE；
IEC 61300； YD/T2341.1-2011 |
| 2 | Cable diameter | φ3.0、2.0、round cable；2*3mm Flat cable | |
| 3 | Operating Wavelength | 1260～1650nm | |
| 4 | Insertion loss | 0.3dB（Typical）;0.5dB（Max.） | |
| 5 | Return loss | APC ≥50dB;UPC≥45dB | |
| 6 | Repeatability | ≤0.2dB | |
| 7 | Interchangeability | ≤0.2dB | |
| 8 | Tensile Strength | ≥45N(Δ IL≤ 0.2dB) | |
| 9 | Operation time | About 50S | |
| 10 | Reusable | ≥10 times | |
| 11 | Operating Temperature | -40～+85℃ |
