■ Introduction:

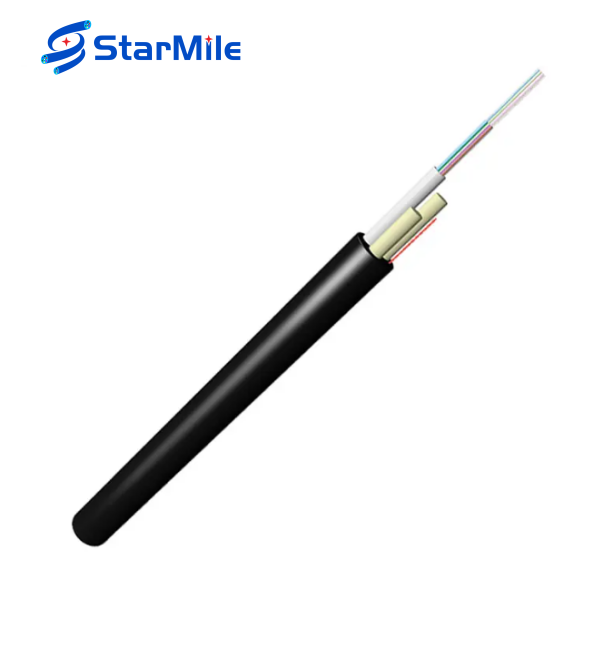

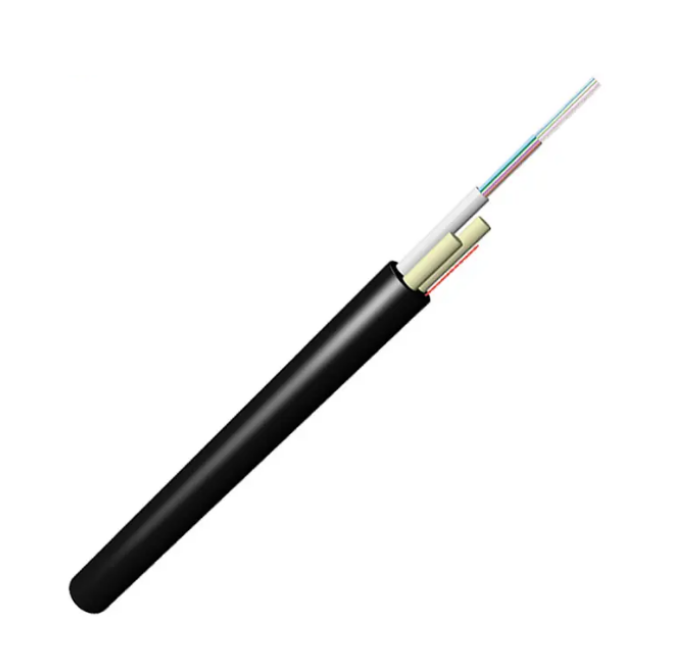

The typical ASU Self-supporting Drop Optical cable
Includes Central Tubes with optical fibre(s),Two Glass FRP as the strength members,
a LSZH Sheath is extruded outside.
■ Features:
Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable
■ Product Series:
· GJXFH
· Strength Member: FRP
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH-Small Diameter
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 1.6 x 2.0 mm
· GJX(F)DH
· Type: Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 2.0 x 4.0 mm
· GJYX(F)CH
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 2.0 x 5.2 mm
· GJYX(F)CH-Small
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GJYXFDCH (GJYXDCH)
· Strength Member: Self-Supporting Wires + Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GYFJU
· Strength Member: Aramid Yarn
· Sheath Material: LSZH
· Dimensions: Round Sheath
· GYGXY
· Strength Member: Central Tube Glass Yarns Armor
· Sheath Material: HDPE
· Dimensions: Round Sheath
· FDC
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 3.0 x 6.0 mm
· ASU
· Strength Member: Self-Supporting FRP Strength
· Sheath Material: HDPE
· Dimensions: 7.0/8.0 mm
· GYXY-8S
· Type: Figure-8 Self-supporting
· Strength Member: Aramid Yarns + Tubes
· Sheath Material: HDPE
· Dimensions: 4.6 x 8.8 mm
· GYFXBY
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 4.6 x 8.1 mm
■ Cross Section:
■ Technical Characteristics:
ASU-80:
· Diameter: 6.8 mm (with 2.0 mm tube)
· Weight: 45 kg/km
· Tensile Strength:
· Long-term: 300 N
· Short-term: 600 N
· Crush Strength:
·Long-term: 300 N/100mm
· Short-term: 600 N/100mm
· Bending Radius:
·Static: 10D (D = Cable Diameter)
·Dynamic: 20D
ASU-120:
· Diameter: 7.8 mm (with 2.5 mm tube)
· Weight: 60 kg/km
· Tensile Strength:
· Long-term: 300 N
· Short-term: 600 N
· Crush Strength:
· Long-term: 300 N/100mm
· Short-term: 600 N/100mm
· Bending Radius:
· Static: 10D (D = Cable Diameter)
· Dynamic: 20D
■ Environmental Characteristics:
Transport/storage temperature: -20℃~70℃
■ Delivery Length:
Standard length:1000m;Other length availabe
