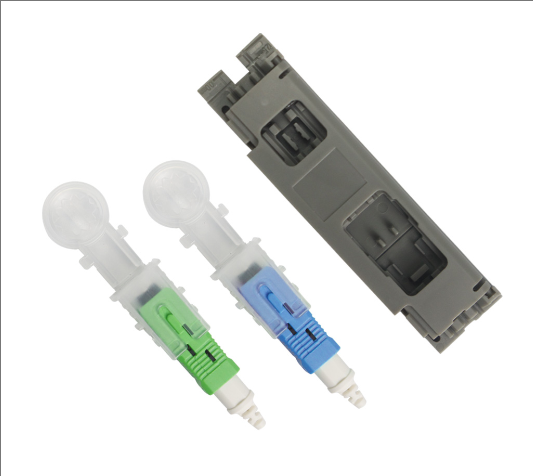

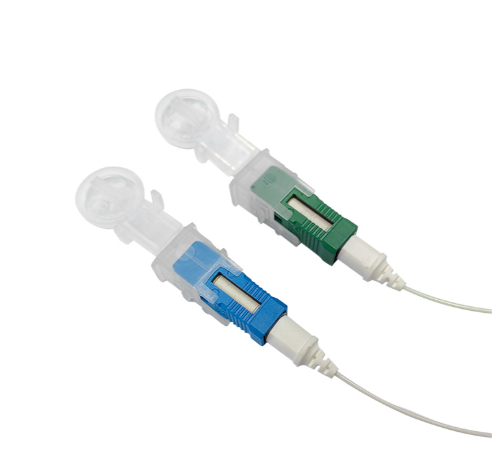

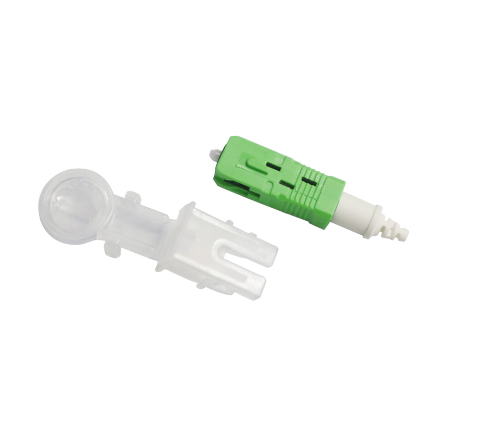

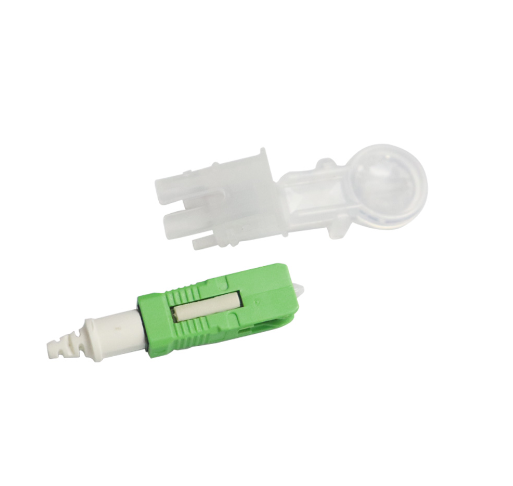

Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable
The invention relates to a fused optical fiber connector, which connects the product with the optical cable through the optical fiber welding machine, has the advantages of simple operation and stable product performance, and is widely used in optical fiber to the home.
Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Features:
- Low insertion loss and high return loss.
- Excellent end-face geometry parameter.
- Easy to operate, high reliability.
Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Application Scenarios:
- FTTH、FTTR and FTTX
- Image transmission Networks
- Optical test instrument
- Photoelectric automatic control system
Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Technical Specifications:
- Material

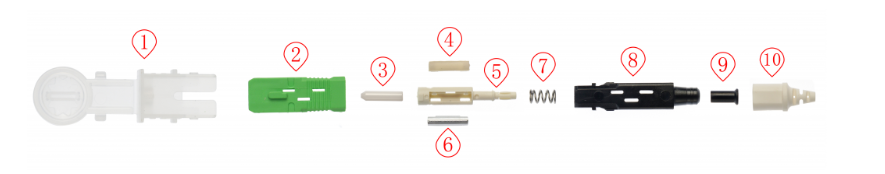

| SN | Part Name | Material | Remarks |
| 1 | Dust Cap and Opener | PE | Consistent with ROHS、REACH |
| 2 | Housing | PPT | |
| 3 | Ceramic Ferrule | Zirconia ceramics | |
| 4 | V-groove cover plate | PA46 | |
| 5 | Fiber optic V-groove | PA46 | |
| 6 | Fiber locking mechanism | Aluminum | |
| 7 | Spring | SUS304 | |
| 8 | Main-body | PC | |
| 9 | Optical cable lock | PC | |
| 10 | Tail sleeve | TPV |
- Performance characteristics
| SN | Project | Index | Remarks |
| 1 | Applicable for | Indoor or Outdoor FTTH | Consistent with GR-326-CORE；
IEC 61300； YD/T2341.1-2011 |
| 2 | Cable diameter | Φ0.9mm | |
| 3 | Operating Wavelength | 1260～1650nm | |
| 4 | Insertion loss | 0.3dB（Typical）;0.5dB（Max.） | |
| 5 | Return loss | APC ≥50dB;UPC≥45dB | |
| 6 | Repeatability | ≤0.2dB | |
| 7 | Interchangeability | ≤0.2dB | |
| 8 | Tensile Strength | ≥45N(Δ IL≤ 0.2dB) | |
| 9 | Operation time | About 50S | |
| 10 | Reusable | ≥10 times | |
| 11 | Operating Temperature | -40～+85℃ |
