■ Introduction:

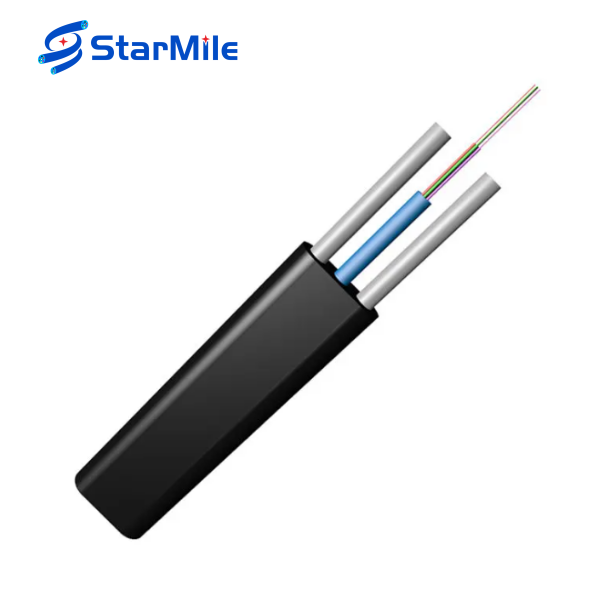

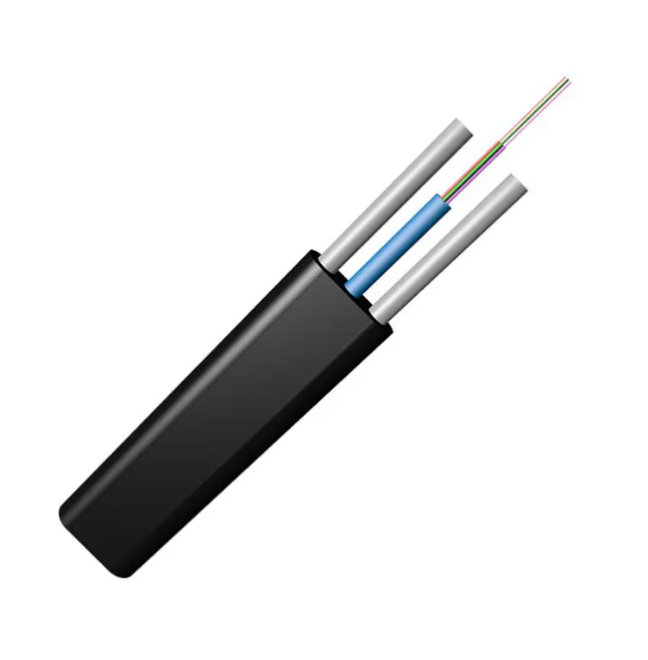

The typical Flat Drop Optical cable Includes Central Tubes with optical fibre(s), Glass FRP as the strength members, a LSZH Sheath is extruded outside.
■ Features:
Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable
■ Product Series:
GJXFH
- Strength Member: FRP
- Sheath Material: LSZH
- Dimensions: 2.0 x 3.0 mm
GJXH
- Strength Member: Steel Wire
- Sheath Material: LSZH
- Dimensions: 2.0 x 3.0 mm
GJXH-Small Diameter
- Strength Member: Steel Wire
- Sheath Material: LSZH
- Dimensions: 1.6 x 2.0 mm
GJX(F)DH
- Type: Ribbon Fibers
- Sheath Material: LSZH
- Dimensions: 2.0 x 4.0 mm
GJYX(F)CH
- Strength Member: Self-Supporting Wires
- Sheath Material: LSZH
- Dimensions: 2.0 x 5.2 mm
GJYX(F)CH-Small
- Strength Member: Self-Supporting Wires
- Sheath Material: LSZH
- Dimensions: 1.7 x 3.8 mm
GJYXFDCH (GJYXDCH)
- Strength Member: Self-Supporting Wires + Ribbon Fibers
- Sheath Material: LSZH
- Dimensions: 1.7 x 3.8 mm
GYFJU
- Strength Member: Aramid Yarn
- Sheath Material: LSZH
- Dimensions: Round Sheath
GYGXY
- Strength Member: Central Tube Glass Yarns Armor
- Sheath Material: HDPE
- Dimensions: Round Sheath
FDC
- Type: Flat Drop Cable
- Core: Central Tube
- Sheath Material: LSZH
- Dimensions: 3.0 x 6.0 mm
ASU
- Strength Member: Self-Supporting FRP Strength
- Sheath Material: HDPE
- Dimensions: 7.0/8.0 mm
GYXY-8S
- Type: Figure-8 Self-supporting
- Strength Member: Aramid Yarns + Tubes
- Sheath Material: HDPE
- Dimensions: 4.6 x 8.8 mm
GYFXBY
- Type: Flat Drop Cable
- Core: Central Tube
- Sheath Material: LSZH
- Dimensions: 4.6 x 8.1 mm
■ Cross Section:
■ Technical Characteristics:
FDC-4-6F
Type:
- 4 fibers
Diameter:
- 3.0 x 6.0 mm (1.5 Tube)
Weight:
- 25 kg/km
Tensile Strength (Long/Short term):
- 300 N / 600 N
Crush Resistance (Long/Short term):
- 300 N / 600 N per 100 mm
Bending Radius (Static/Dynamic):
- 15 mm (Static)
- 30 mm (Dynamic)
FDC-12-24F
Type:
- 12-24 fibers
Diameter:
- 4.0 x 7.0 mm (2.5 Tube)
Weight:
- 36 kg/km
Tensile Strength (Long/Short term):
- 300 N / 600 N
Crush Resistance (Long/Short term):
- 300 N / 600 N per 100 mm
Bending Radius (Static/Dynamic):
- 15 mm (Static)
- 30 mm (Dynamic)
■ Environmental Characteristics:
Transport/storage temperature: -20℃~70℃
■ Delivery Length:
Standard length:1000m;Other length availabe
