Product feature
1.1xN and 2xN splitters tailored per application
2.Low Insertion Loss and low PDL
3. Superior Uniformity
4. Wide Operation Wavelength
5. Wide Operation Temperature
6.High Stability and Reliability
Application
1.FTTX Networks
2.PON Networks
3.CATV Links
4.Data Communication

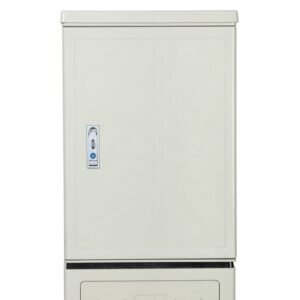

5.Optical Cable Cross Connection Cabinet
6.Optical Fiber Distribution Box/Cabinet
Design Type

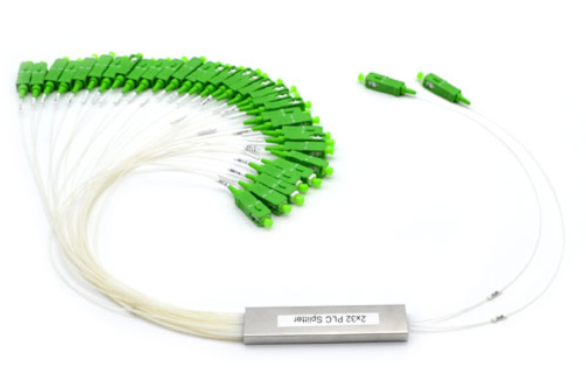

1、1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits
2、2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits
3、Type: Bare-fiber type, micro type, ABS box type, Cassette type
4、Adapter type of splitter: SC/UPC, SC/APC
| Technical specification | ||||
|---|---|---|---|---|

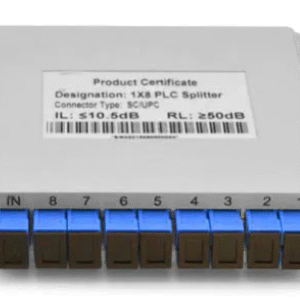

| Mode | Cassette PLC Splitter（1×2） | |||
| Type | 1*2/1*4/1*8/1*16/1*32/1*64 | |||
| Place of Origin | China | |||
| Splitter Channel | 2/4/8/16/32/64 Channels | |||
| Housing | ABS Plastic box | |||
| Connector | SC APC | |||
| Spliiter Sturcutre | Modular Design | |||
| Fiber Type | G657A1 | |||
| Operation Wavelength | 1260nm – 1650nm | |||
| Application | FTTH FTTB FTTX Networks | |||
| Specifications： | ||||
|---|---|---|---|---|
| 1、The Connector | ||||
| Project | Spec. | Standard | ||
| Operating wavelength | 1260～1650nm | GR-326-CORE；IEC 61300 | ||
| Insertion loss | ≤0.3dB（Typical value：0.2dB) | |||
| Return loss | ≥60dB（APC）≥50dB(UPC) | |||
| Repeatability | ≤0.2dB | |||
| Interchangeability | ≤0.2dB | |||
| Mechanical Endurance | ≥500 Times | |||
| Working temperature | -40～+85℃ | |||
| 2、Composition Information | ||||
| Category | Specification | Remarks | ||
| PLC Splitter | Fiber Type | G657A1 | ||
| Splitter Type. | 0.9mm-Mini Type | |||
| Product length | 0.4M | |||
| Connector Type | SC、FC or LC | |||
| The Box | Size | 130*100*25mm | ||
| Material | ABS | |||
| Color | Grayish White | |||
| Channel marking | Yes | |||
| Packaging data | ||||
| Mode | Cassette PLC Splitter（1x2） | |||
| Inner carton size | Outer carton size | |||
| Pallet size | Outer carton G.W | |||
