Figure 8 Fiber Optic Cable Aerial Stranded-(GYTC8S)

Model Name: Figure-8 Type Fiber Optic Cable  (GYFXJC8H)

Fiber: 1 fiber(Natural)

Buffer: Blue-PVC

Self supporting member: Steel strand wire

Strength Member: Aramid yarn

Sheath: Black-LSZH / Anti-UV



Product details

GYTC8S is a typical outdoor fiber optical cable used for aerial environment. It’s also called the figure 8 cable because its structure looks like the figure ‘8’. Due to equipped with self-supporting wire, there’s no need of other hanging wire to support it during the deployment.

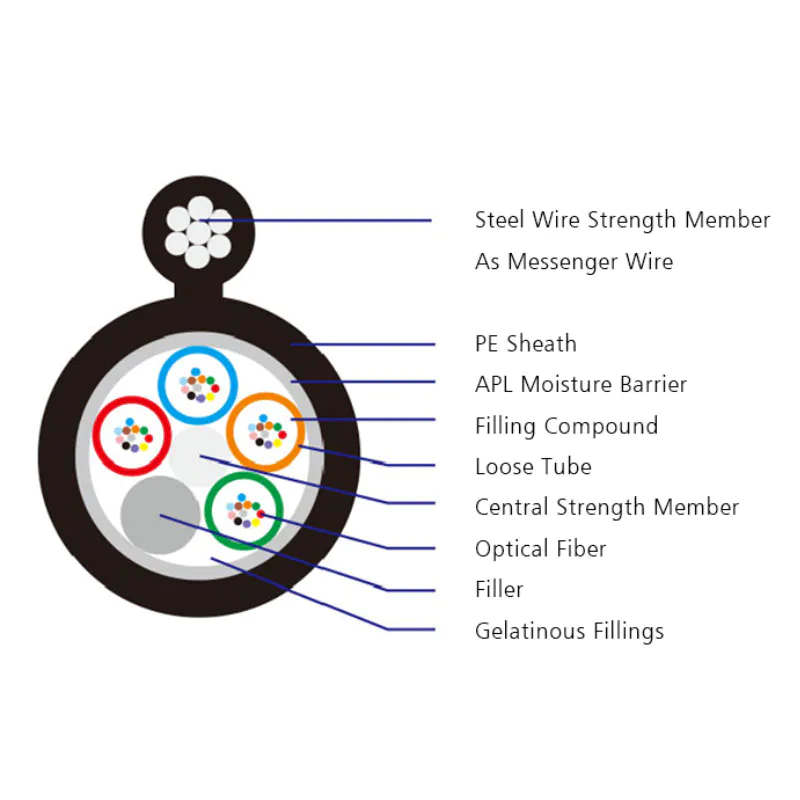

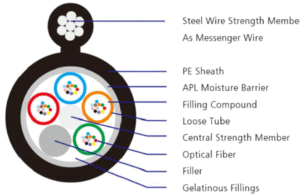

Cable section construction:

Product features:

  • Excellent mechanical and temperature performance.
  • Special tube filling oil ensures water-proof performance.
  • Loose tube stranding cable core ensures the cable structure stable.
  • Optional aluminum or corrugated steel sheathing.

Product application:

  • Long distance, LAN communication.
  • CATV &computer network system.
  • Junction communication system.
  • Self-supporting aerial

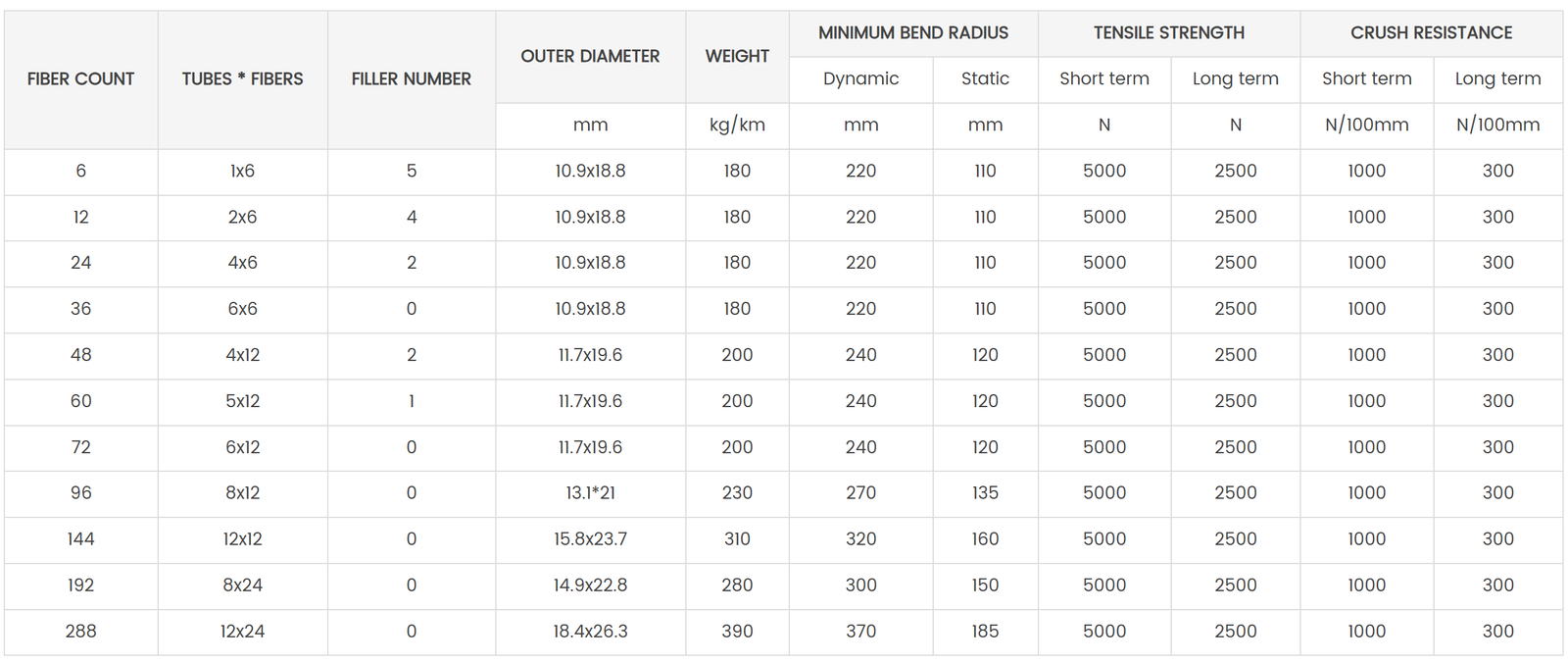

Technical specification

Packaging & Shipping

Multiple packaging options are available
