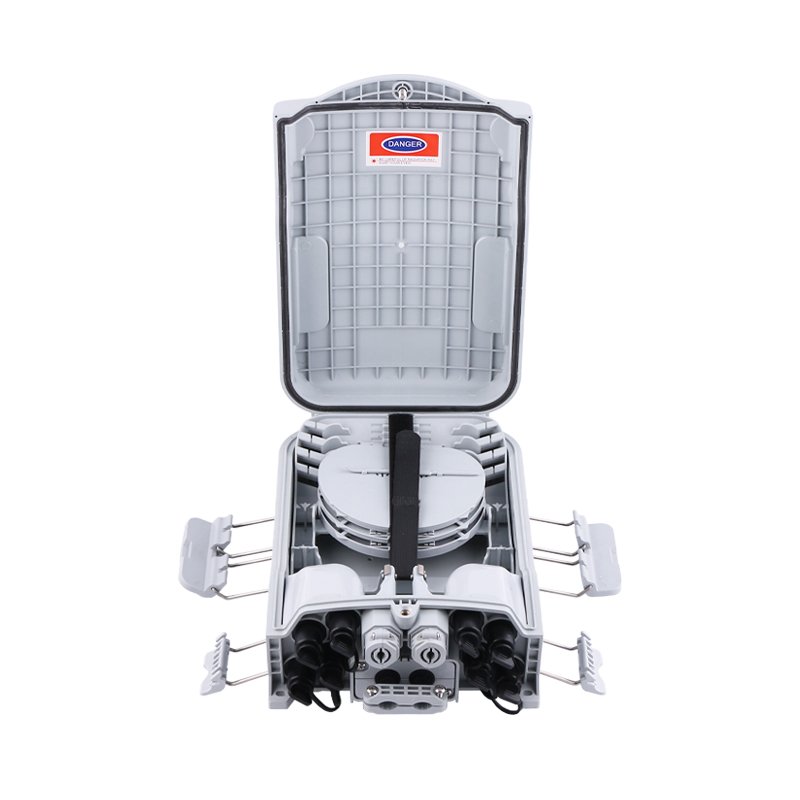

Specification
| Model No. | PTB-8D | Color | Grey,Black,White. |
| Capacity | 8ports SC+36F Splice | Protection Level | IP65 Indoor/Outdoor |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,) | 319.3x200x97.5mm | Splitter | Can be with 2×1:4 Plug in splitter or 1×1:8 plug-in Splitter |

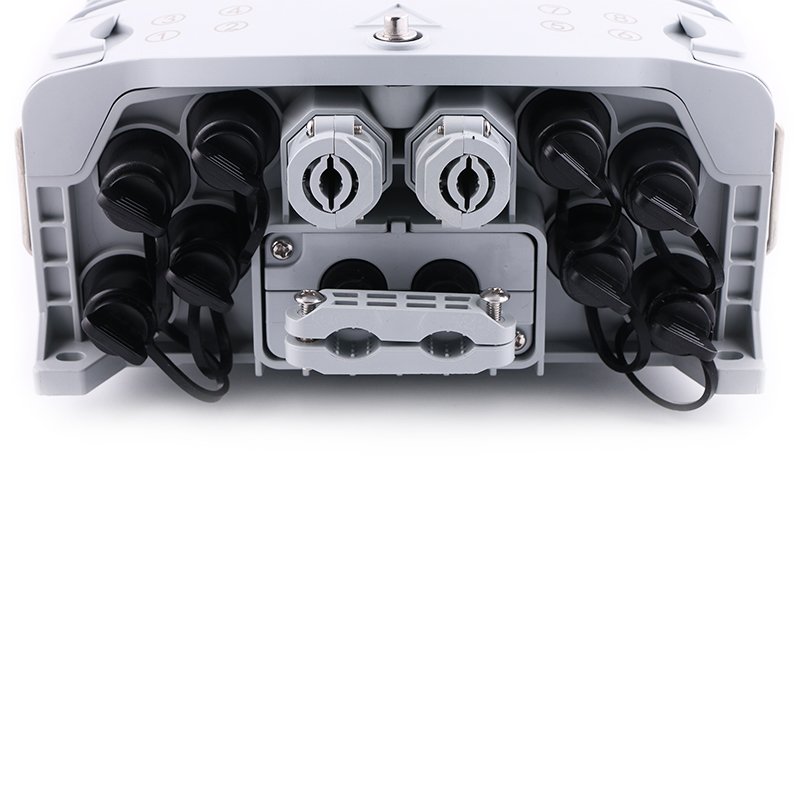

| Input Cable OD | 1mid span(Φ16mm Max), 2cable gland(Φ8-14mm) | Output Adapter | 8x Mini SCAPC waterproof adapters<0.2dB |
| Installation Method | Wall&Pole mounted | Insertion loss | ≤0.2dB（1310nm & 1550nm) |
Splice tray details
| Mold | SPTB8D-A |
| Dimension(mm) | 134*104*8 |
| Material | PC+ABS, ABS |
| Capacity | 12F, 1 slot for 1/8 PLC |
| Mold | SPTB8D-B |
| imension(mm) | 134*104*4 |
| Material | PC+ABS, ABS |
| Capacity | 8 |
Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
Main technical datasheet:
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2 x 104 MΩ/500V（DC）；IR≥2×104 MΩ/500V, The voltage resistance between the grounding device, and the box and its metal
parts is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
1.Wall-mounted installation
Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40,
place the box to match up the holes and use bolt to fasten
2.Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole

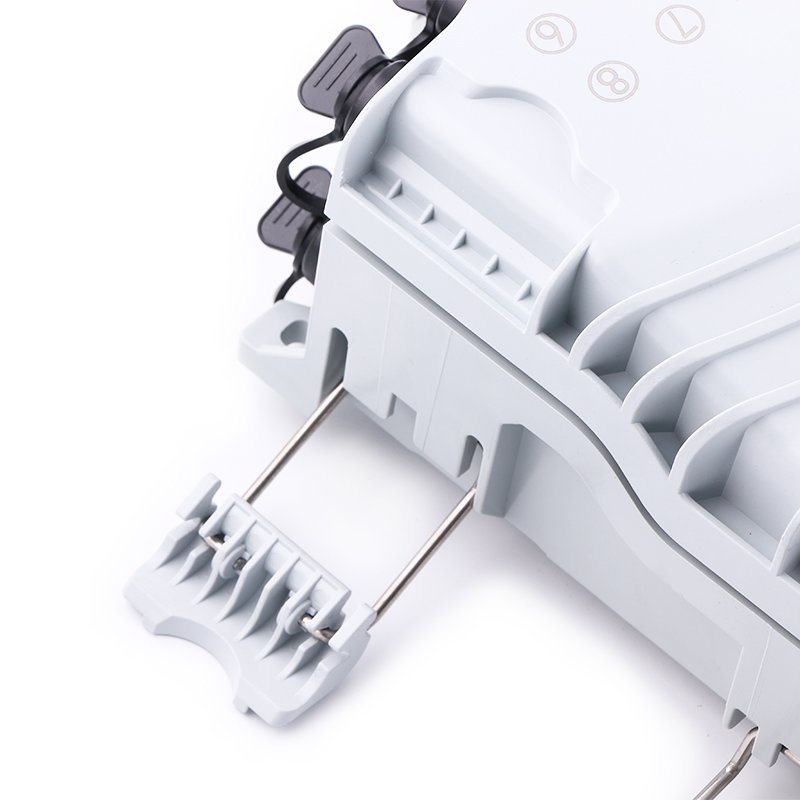

3.The overhead structure
Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.
