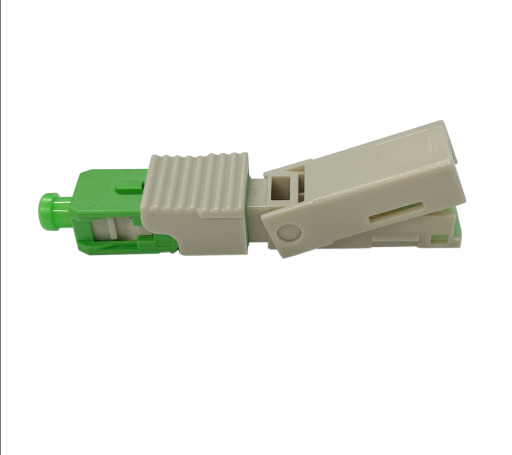

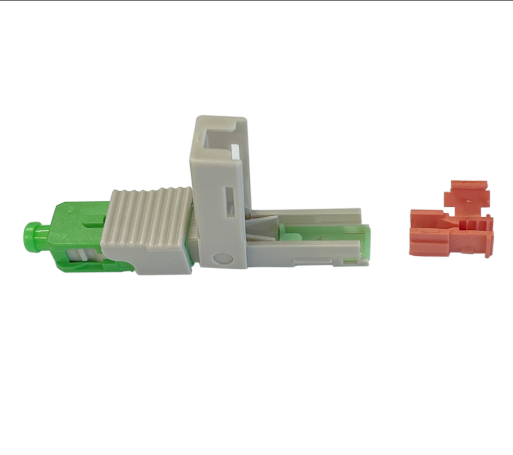

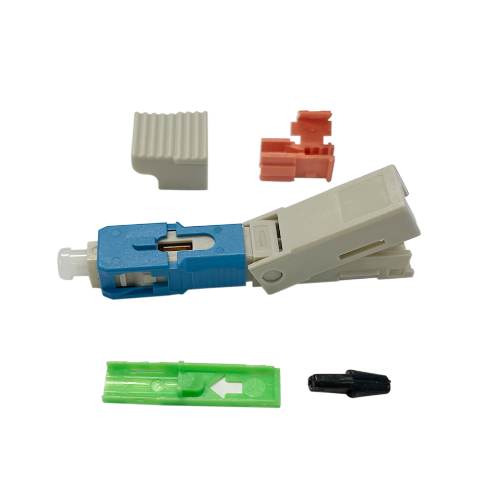

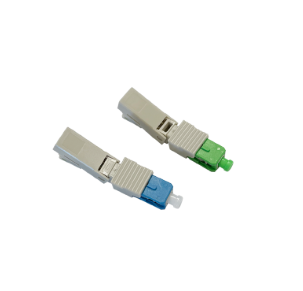

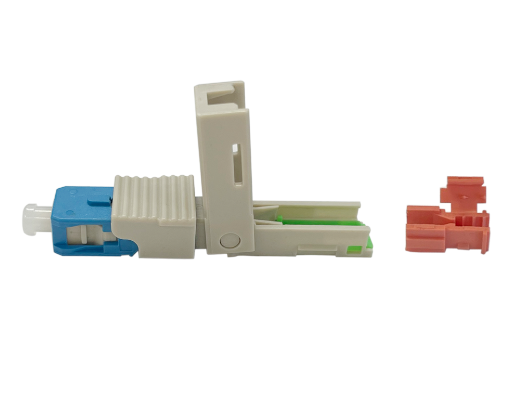

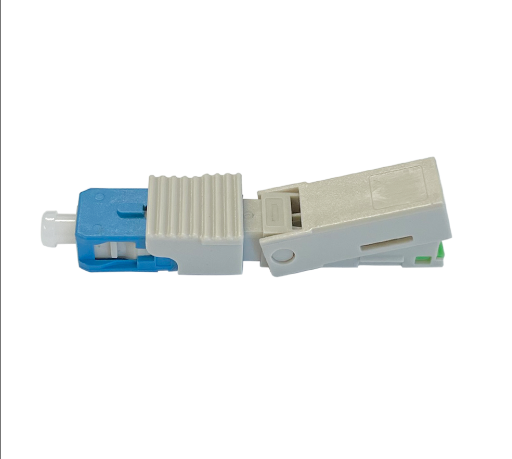

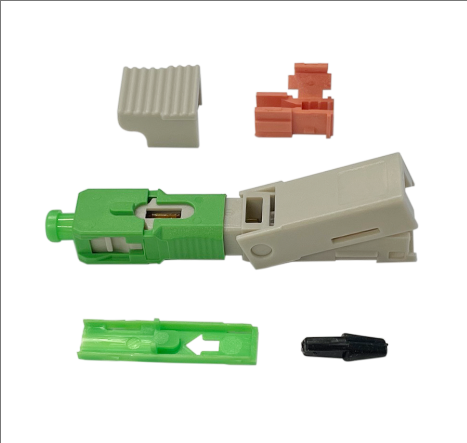

FTTH SC UPC APC 0.3dB Single Mode 52MM Fiber Optic Fast Connector
Mechanical connector provides quick and easy assembly in the field， the connector is similar to factory-installed connectors. Minimum amount of tools required and have an easy-to-follow installation method。
FTTH SC UPC APC 0.3dB Single Mode 52MM Fiber Optic Fast Connector Features:
- Low insertion loss and high return loss.
- Excellent end-face geometry parameter.
- Easy to operate, high reliability.
FTTH SC UPC APC 0.3dB Single Mode 52MM Fiber Optic Fast Connector Application Scenarios:
- FTTH、FTTR and FTTX
- Image transmission Networks
- Optical test instrument
- Photoelectric automatic control system
FTTH SC UPC APC 0.3dB Single Mode 52MM Fiber Optic Fast Connector Specifications:

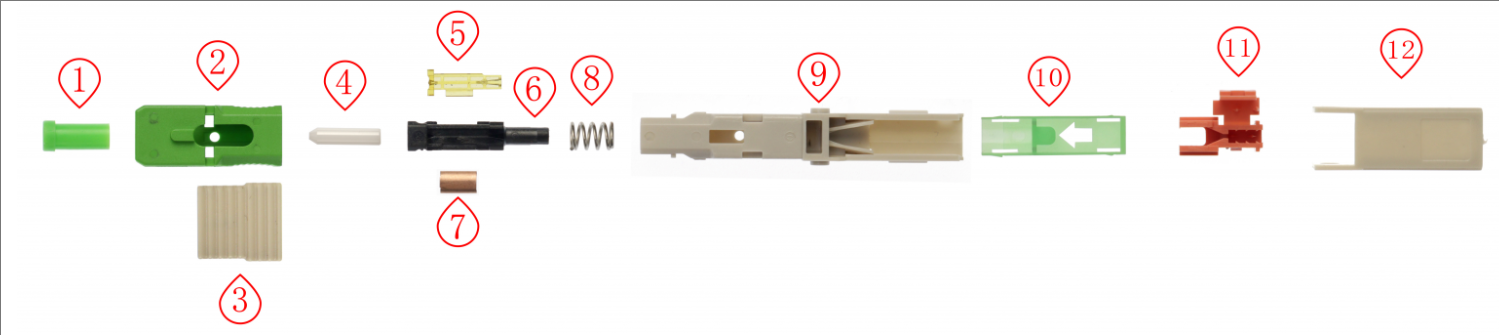

- Material
| SN | Part Name | Material | Remarks |
|---|---|---|---|
| 1 | Dust Cap | PE |
Consistent with ROHS、REACH |
| 2 | Housing | PPT | |
| 3 | Opener | PC | |
| 4 | Ceramic Ferrule | Zirconia ceramics | |
| 5 | V-groove cover plate | PEI | |
| 6 | Fiber optic V-groove | PEI+GF | |
| 7 | Fiber locking mechanism | Copper（Qbe2 ） | |
| 8 | Spring | SUS304 | |
| 9 | Main-body | PC | |
| 10 | Guide slide | PC | |
| 11 | Tail clip | PC | |
| 12 | Optical cable cover | PC |
- Performance characteristics
| SN | Project | Index | Remarks |
|---|---|---|---|
| 1 | Applicable for | Indoor or Outdoor FTTH | Consis tent with GR-326-CORE；IEC 61300； YD/T2341.1-2011 |
| 2 | Cable diameter | 2*3mm Flat cable；
Φ0.9mm Round cable |
|
| 3 | Product length | Abouot 52mm | |
| 4 | Operating Wavelength | 1260～1650nm | |
| 5 | Insertion loss | 0.3dB（Typical）;0.5dB（Max.） | |
| 6 | Return loss | APC ≥50dB;UPC≥45dB | |
| 7 | Repeatability | ≤0.2dB | |
| 8 | Interchangeability | ≤0.2dB | |
| 9 | Tensile Strength | ≥45N(Δ IL≤ 0.2dB) | |
| 10 | Operation time | About 50S | |
| 11 | Reusable | ≥10 times | |
| 12 | Product life | ＞15 years | |
| 13 | Operating Temperature | -40～+85℃ |
