Uni-tube Air-Blown Micro Optical Fiber Cable For FTTx Network
Power system Lighting-prone areas
■ Product Overview:
The cable structure consists of optical fibers housed in a high-modulus plastic loose tube filled with tube-filling compound. Aramid yarn reinforcement is applied outside the loose tube, followed by an extruded grooved sheath. This cable is specifically designed for air-blowing installations in access networks.
■ Key Features:
- Compact size and lightweight: Facilitates easy deployment.
- Tube filling compound: Provides critical fiber protection.
- Grooved sheath design: Enhances air-blowing efficiency.
- Phased blowing installation: Reduces initial investment costs.
- High-speed blowing (up to 50 m/min) and long-distance blowing (up to 1,000 m).
- Replaceable design: Allows cable removal and replacement for future upgrades.
- On-demand branching: Enables micro-duct cutting at any point without disrupting existing cables, minimizing manholes and splice points.
■ Performance Comparison of Air-Blown Micro Cables:
Enhanced Performance Fiber Unit (EPFU):
- Features include small size, lightweight, excellent bending performance, and suitability for indoor installations.
- Blowing performance rated at 3 stars (★★★).
- Primarily used in FTTH (Fiber to the Home) applications.
Uni-tube Air-Blown Micro Cable (GCYFXTY):
- Compact design with lightweight construction, superior tensile strength, and crush resistance.
- Blowing performance rated at 4 stars (★★★★).
- Ideal for power systems and lighting-prone areas.
Stranded Loose Tube Air-Blown Micro Cable (GCYFY):
- High fiber density and duct utilization, significantly reducing initial investment costs.
- Blowing performance rated at 5 stars (★★★★★).
- Suitable for FTTH, metropolitan networks, and access networks.
■ Cross Section:

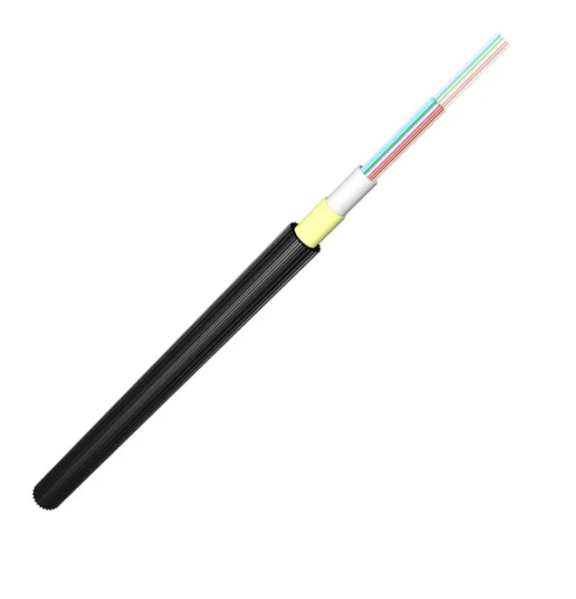

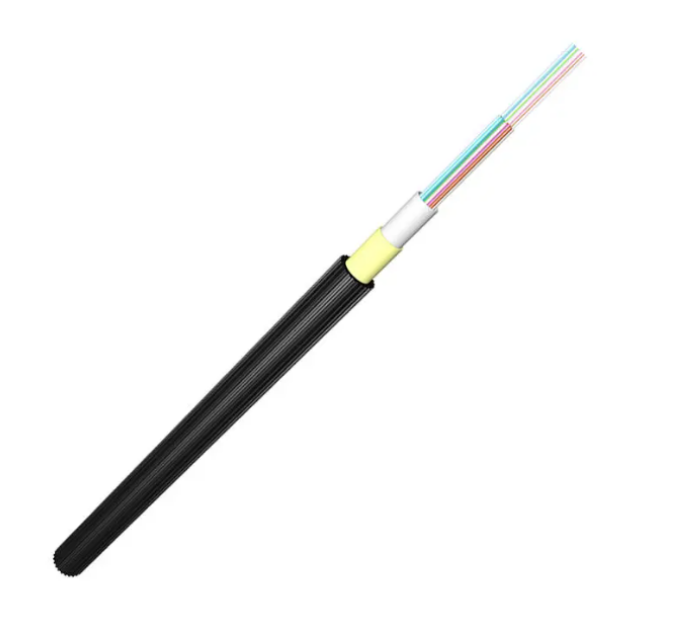

1. PE Sheath with Groove 2. Aramid Yarn 3. Fibress 4. Tube Filling Compound 5. Loose Tube
■ Key Parameters:
- GCYFXTY-02 G657A2: 2 fibers, diameter 2.3 ± 0.05 mm, weight 4.0 ± 0.1 kg/km, tensile strength 0.15G/0.5G (long/short term), crush resistance 150/450 N/100mm (long/short term).
- GCYFXTY-04 G657A2: 4 fibers, identical dimensions and mechanical properties as GCYFXTY-02.
- GCYFXTY-06 G657A2: 6 fibers, identical dimensions and mechanical properties as GCYFXTY-02.
- GCYFXTY-08 G657A2: 8 fibers, identical dimensions and mechanical properties as GCYFXTY-02.
- GCYFXTY-12 G657A2: 12 fibers, identical dimensions and mechanical properties as GCYFXTY-02.
- GCYFXTY-24 G657A2: 24 fibers, diameter 2.7 ± 0.05 mm, weight 6.5 ± 0.1 kg/km, tensile and crush resistance matching other models.
Note: “G” denotes the weight of 1 km of optical cable.
■ Blowing Characteristics:
2/4/6/8 fibers:
- Compatible with 5.0/3.5 mm ducts.
- Requires blowing pressure of 8 bar (for 500 m) or 10 bar (for 1,000 m).
- Blowing time ranges from 15 to 30 minutes.
12 fibers:
- Compatible with 5.0/3.5 mm ducts.
- Requires blowing pressure of 8 bar (for 500 m) or 10 bar (for 800 m).
- Blowing time ranges from 15 to 30 minutes.
■ Environmental & Application Details:
Temperature Tolerance: Transport/storage at -20°C to +70°C.
■ Applications:
FTTH Networks: Deployed as drop cables for connecting distribution points to end-users.
Backbone/Metropolitan Networks: Optimized for high-efficiency air-blown installations.
Delivery Length: Standard 2,000 m; custom lengths available upon request.
