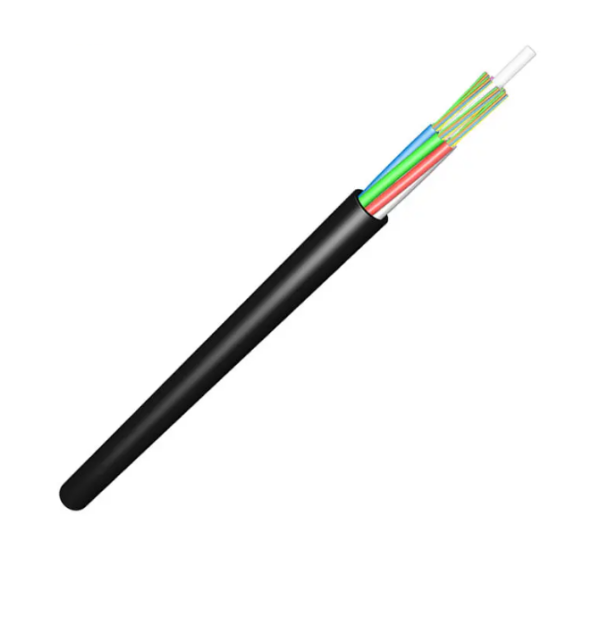

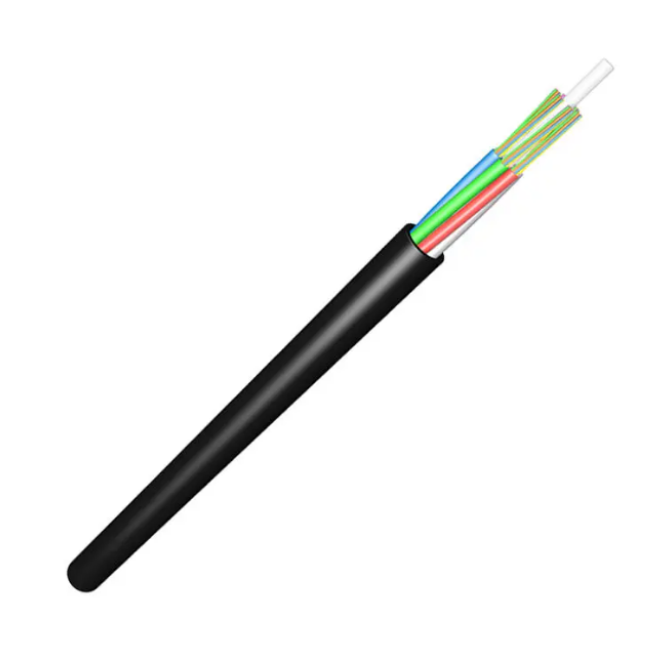

GCYFY-Small
Stranded Loose Tube Air-blown Micro Fiber Optic Cable for FTTH
■ Introduction:
Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compounds.Aramid yarns are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks.
■ Features:
- Smaller Diameter and light weight.
- Tube filling compound providing key protection for fibres.
- Unique design of sheath with grooves ensuring good air blowing performance.
- Allowing to blow by phases to reduce initial investment.
- High blowing speed up to 50m/min, and long blowing distance up to 1000m.
- Allowing to blow out and replace with new cables to keep technical superiority.
- Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints.
■ Performance Comparison of Air-blown Micro Cables:
Enhanced Performance Fibre Unit (EPFU)
· Characteristics:
o Small size
o Lightweight
o Good bending performance
o Suitable for indoor installations
· Blowing Effect: 3 Stars (*).**
· Application: FTTH (Fiber to the Home)
Uni-Tube Air-Blown Micro Cable (GCYFXTY)
· Characteristics:
o Small size
o Lightweight
o Good tensile and crush resistance
· Blowing Effect: 4 Stars (****).
· Application: Power systems and lighting-prone areas
Stranded Loose Tube Air-Blown Micro Cable (GCYFY)
· Characteristics:
o High fiber density
o High duct utilization
o Much less initial investment
· Blowing Effect: 5 Stars (*).
· Application: FTTH, Metropolitan areas, and Access networks
■ Cross Section:
1. PE Sheath 2. Water Blocking Yarn 3. Loose Tube 4. Strength Member 5. Fibre 6. Tube Filling Compound 7. PE Layer
■ Technical Characteristics:
General Specifications:
· Fiber Count: Ranges from 24 to 576 fibers.
· Tube Structure: The fiber count is split across tubes, typically in multiples of 12 fibers per tube.
· Cable Diameter: The diameter varies from 4.5mm to 11.2mm depending on the fiber count.
· Weight: Cable weight ranges from 16 kg/km (for smaller counts) to 110 kg/km (for the largest count).
Mechanical Properties:
· Tensile Strength:
o Long-term: 150 N
o Short-term: 500 N
· Crush Resistance:
o Long-term: 150 N/100mm
o Short-term: 500 N/100mm
Cable Types and Fiber Counts:
· GCYFY-24 G657A2: 24 fibers (2 tubes of 12 fibers), 4.5 mm diameter, 16 kg/km weight.
· GCYFY-48 G657A2: 48 fibers (4 tubes of 12 fibers), 4.5 mm diameter, 16 kg/km weight.
· GCYFY-72 G657A2: 72 fibers (6 tubes of 12 fibers), 4.5 mm diameter, 16 kg/km weight.
· GCYFY-96 G657A2: 96 fibers (8 tubes of 12 fibers), 5.6 mm diameter, 26 kg/km weight.
· GCYFY-144 G657A2: 144 fibers (12 tubes of 12 fibers), 7.2 mm diameter, 43 kg/km weight.
· GCYFY-192 G657A2: 192 fibers (16 tubes of 12 fibers), 7.8 mm diameter, 48 kg/km weight.
· GCYFY-216 G657A2: 216 fibers (18 tubes of 12 fibers), 7.8 mm diameter, 48 kg/km weight.
· GCYFY-240 G657A2: 240 fibers (20 tubes of 12 fibers), 7.8 mm diameter, 48 kg/km weight.
· GCYFY-288 G657A2: 288 fibers (24 tubes of 12 fibers), 8.1 mm diameter, 58 kg/km weight.
· GCYFY-144 G657A2: 144 fibers (6 tubes of 24 fibers), 6.2 mm diameter, 32 kg/km weight.
· GCYFY-192 G657A2: 192 fibers (8 tubes of 24 fibers), 7.2 mm diameter, 48 kg/km weight.
· GCYFY-240 G657A2: 240 fibers (10 tubes of 24 fibers), 8.1 mm diameter, 58 kg/km weight.
· GCYFY-288 G657A2: 288 fibers (12 tubes of 24 fibers), 9.3 mm diameter, 80 kg/km weight.
· GCYFY-432 G657A2: 432 fibers (18 tubes of 24 fibers), 9.6 mm diameter, 78 kg/km weight.
· GCYFY-576 G657A2: 576 fibers (24 tubes of 24 fibers), 11.2 mm diameter, 110 kg/km weight.
■ Environmental Characteristics:
Transport/storage temperature: -40℃~70℃
■ Applications:
The cab le can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cab le is also applicable in backbone networks, metropolitan area networks and access networks.
■ Delivery Length:
Standard length:2000m;Other length availabe
