GYFXY

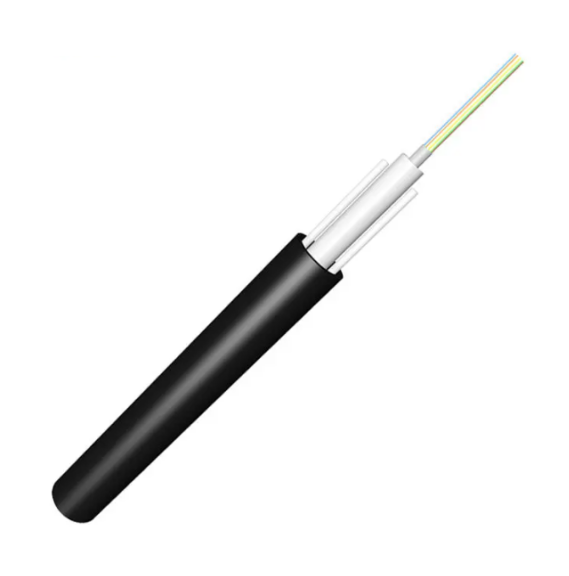

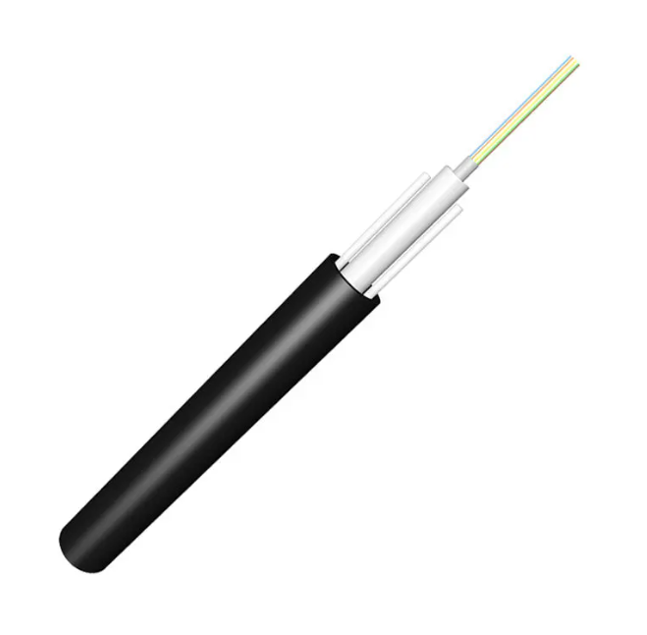

Optical Fiber Cable FRP rods Uni-Tube
Duct Installation
- Strength Member: two phosphate steel wires.
- Loose Tube: thermoplastic material, containing opticalfibres and water blocking yarm.
- Longitudinal Water Blocking Material: Water blocking tape.
- Armor: corrugated steel tape.
- Outer Sheath: black polyethylene.
■ Features and Applications:
- Small diameter, light weight,easy for transportation and installation.
- Duct installation or aerial installation
- Lighting resistance
■ Optical Characteristics:
Attenuation:
At 850 nm:
o 50/125µm: ≤ 3.0 dB/km
o 62.5/125µm: ≤ 3.0 dB/km
o G.652.D and G.655: Not applicable at 850 nm.
At 1300 nm:
o 50/125µm: ≤ 1.0 dB/km
o 62.5/125µm: ≤ 1.0 dB/km
o G.652.D: ≤ 0.36 dB/km
o G.655: ≤ 0.40 dB/km
At 1310 nm:
o G.652.D: ≤ 0.36 dB/km
o G.655: ≤ 0.40 dB/km
o 50/125µm and 62.5/125µm: Not applicable.
At 1550 nm:
o G.652.D: ≤ 0.22 dB/km
o G.655: ≤ 0.23 dB/km
o 50/125µm and 62.5/125µm: Not applicable.
Bandwidth:
At 850 nm:
o 50/125µm: ≥ 500 MHz·km
o 62.5/125µm: ≥ 200 MHz·km
o G.652.D and G.655: Not applicable.
At 1300 nm:
o 50/125µm: ≥ 1000 MHz·km
o 62.5/125µm: ≥ 600 MHz·km
o G.652.D and G.655: Not applicable.
Polarization Mode Dispersion (PMD):
Individual Fiber:
o G.652.D: ≤ 0.20 ps/√km
o G.655: ≤ 0.20 ps/√km
o 50/125µm and 62.5/125µm: Not applicable.
Design Link Value (M=20, Q=0.01%):
o G.652.D: ≤ 0.1 ps/√km
o G.655: ≤ 0.1 ps/√km
o 50/125µm and 62.5/125µm: Not applicable.
■ Technical Data:
Fiber Count: 6 and 12 fibers
Loose Tube:
· Number of tubes/fibers per tube: 1×6 and 1×12
· Outer Diameter: 2.0 mm
Strength Member:
· Material: GFPR (Glass Fiber Reinforced Plastic)
· Diameter: 1.0 mm
Water Blocking Material: Water blocking yarn
Outer Sheath:
· Thickness: Nominal 2.5 mm
Cable Diameter (approx.): 7.5 mm
Cable Weight (approx.): 65 kg/km
Operating Temperature Range: -20°C to +70°C
Tensile Strength:
· Short Term: 2000 N
· Long Term: 600 N
Crush Resistance:
· Short Term: 2000 N/100mm
· Long Term: 600 N/100mm
