GYTS53 Double Sheath PSP Enhanced Armor Direct Buried Installation Optical Cable

GYTS53 Double Sheath PSP Enhanced Armor Direct Buried Installation Optical Cable

  • Double Sheath PSP Enhanced Armor
  • Direct Buried
  • ISO9001
  • 3km/Spool
  • Wooden Spool ，Φ1200*750mm
  • 40km
  • 5-25 Days
  • NINGBO CHINA
  • 30%TT as deposit,70%Balance before shipping.
Categories ,
Chat on WhatsApp
Get Information

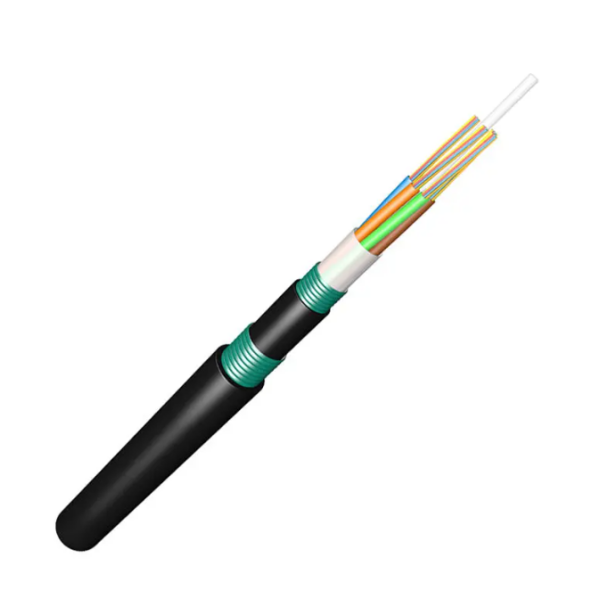

GYTS53

Direct Buried Installation Optical Fiber Cable Double Sheath
PSP Enhanced Armor







Application:

Excellent Anti-rodent performance.

Excellent crush resistance

Direct-buried installation and aerial installation.

Characteristics:

G.652.DG.65550/125um62.5/125um
Attenuation@850nm––≤3.0 dB/km≤3.0 dB/km
@1300nm––≤1.0 dB/km≤1.0 dB/km
@1310nm≤0.36 dB/km≤0.40 dB/km––
@1550nm≤0.22 dB/km≤0.23 dB/km––
Bandwidth@850nm––≥500 MHz · km≥200 MHz · km
@1300nm––≥1000 MHz · km≥600 MHz · km
Polarization
mode
dispersion		lndividual fibre≤0.20 ps/√km≤0.20 ps/√km––
Design link value
(M=20,Q=0.01%)		≤0.1 ps/√km≤0.1 ps/√km––

Technical Data:

ItemContentsValue
Fiber Count24487296144288
Loose TubeNo. of tubes*fibres per tube4*64*126*128*1212*1224*12
Outer diameter (mm)1.92.42.42.42.42.4
Central strength memberMaterialPhosphated steel wire
Diameter (mm)2.02.02.02.02.02.0
Coated CSM diameter (mm)–2.62.64.27.44.8
Water Blocking materialMaterialCable filling compound
ArmorMaterialCorrugated steel tape
Inner SheathThickness (mm)Nominal:1.0
Anti-Rodent ArmorMaterialCorrugated steel tape
Outer SheathThickness (mm)Nominal:2.0
Cable diameter(mm)Approx.14.215.715.717.521.023.0
Cable weight(kg/km)Approx.230265265305390460
Operating temperature range(℃)-40~+70
Tensile Strength Short/ Long Term(N)3000/1000
Crush resistanoe short/long term (N/100mm)3000/1000
The colour arrangement of fibre and tube is specified in the colour identification table.
Other structure and fibre count are also available according to customer requirements.
