■ Introduction:

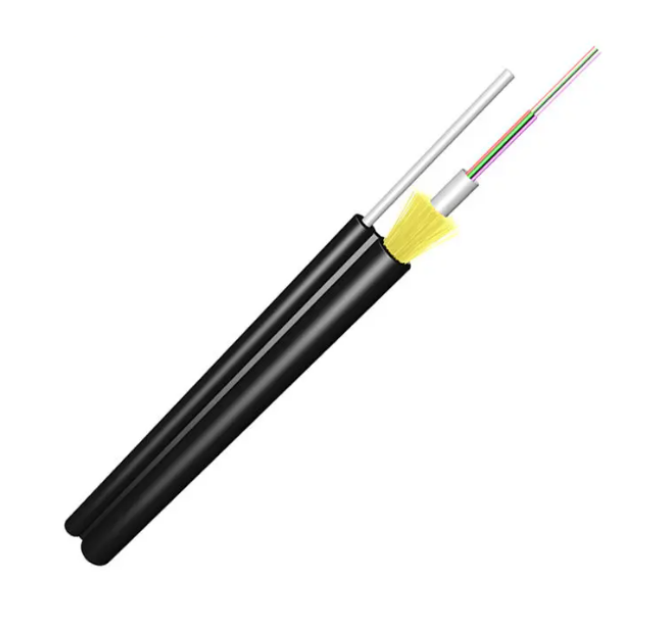

The typical GYXY-8S Self-supporting Drop Optical cable
Includes Central Tubes with optical fibre(s), Aramid yarns as the strength members, Steel wires as the Self-supporting,
a HDPE Sheath is extruded outside.
■ Features:
Figure-8 Self-supporting
Aerial installation
Suitable for FTTH application as drop cable
■ Product Series:
· GJXFH
· Strength Member: FRP
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH-Small Diameter
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 1.6 x 2.0 mm
· GJX(F)DH
· Type: Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 2.0 x 4.0 mm
· GJYX(F)CH
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 2.0 x 5.2 mm
· GJYX(F)CH-Small
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GJYXFDCH (GJYXDCH)
· Strength Member: Self-Supporting Wires + Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GYFJU
· Strength Member: Aramid Yarn
· Sheath Material: LSZH
· Dimensions: Round Sheath
· GYGXY
· Strength Member: Central Tube Glass Yarns Armor
· Sheath Material: HDPE
· Dimensions: Round Sheath
· FDC
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 3.0 x 6.0 mm
· ASU
· Strength Member: Self-Supporting FRP Strength
· Sheath Material: HDPE
· Dimensions: 7.0/8.0 mm
· GYXY-8S
· Type: Figure-8 Self-supporting
· Strength Member: Aramid Yarns + Tubes
· Sheath Material: HDPE
· Dimensions: 4.6 x 8.8 mm
· GYFXBY
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 4.6 x 8.1 mm
■ Cross Section:
■ Technical Characteristics:
· Type:
2-12F
· Diameter:
2.8 x 4.6 x 8.8 mm (2.5 Tube)
· Weight:
41 kg/km
· Tensile Strength (Long/Short term):
500 N / 1250 N
· Crush Resistance (Long/Short term):
300 N / 600 N per 100 mm
· Bending Radius (Static/Dynamic):
150 mm (Static)
75 mm (Dynamic)
■ Environmental Characteristics:
Transport/storage temperature: -20℃~70℃
■ Delivery Length:
Standard length:1000m; Other length availabe
