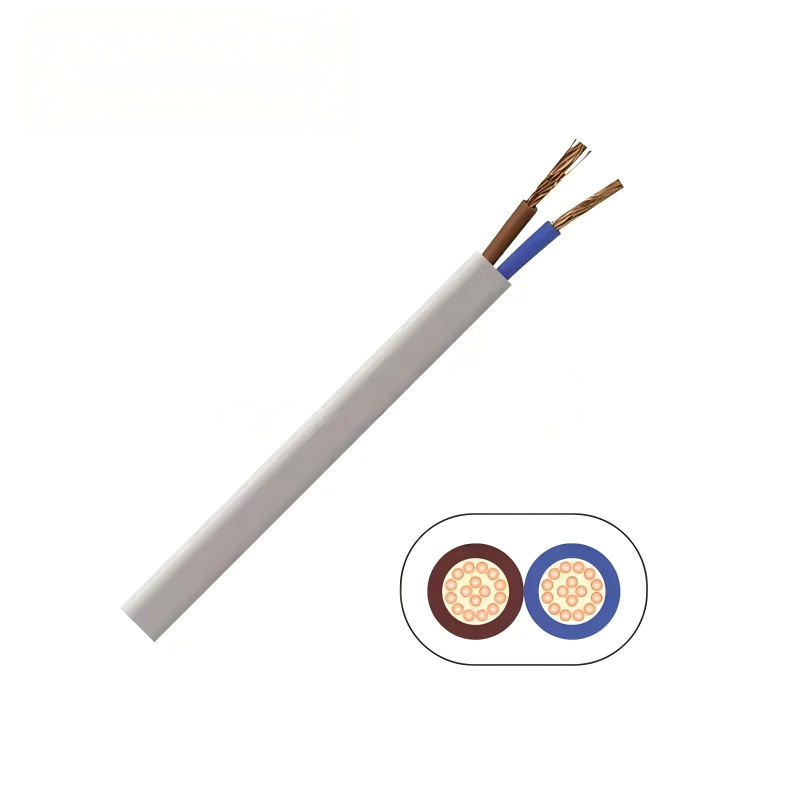

H03VVH2-F Flexible Cable







Application:

Cable Standards:
Light duty cable for use
in domestic premises, kitchens and offices.For use as pendant light drops and light supply leads.		EN 50525-2-11, EN 60228
Flame Retardant according to IEC/EN 60332-1-2

Product Description:

ConductorClass 5 flexible copper
InsulationPolyvinyl Chloride (PVC)
SheathPolyvinyl Chloride (PVC)

Characteristics:

Voltage Rating Uo/U300/300V
Temperature Rating+5°C to +70°C
Minimum Bending RadiusFixed: 8 x overall diameter

Core Identification:

2 Core:BlueBrown

Sheath Colour

WhiteBlack

Dimensions:

Zion CodeNo. Of
Cores		Nominal Cross Sectional Area(mm²)Nominal Overall
Diameter
(mm)		Nominal Weight
(mm)
H03VVH2-F2x0.520.500.63.35×530
H03VVH2-F2x0.7520.750.63.5×537

Conductors:

Nominal Cross Sectional Area(mm²)Maximum Diameter
Of Wires In Conductor		MAXIMUM RESISTANCE OF CONDUCTOR AT 60ºC
ohms/km
Plain WiresMetal-Coated Wires
0.50.213940.1
0.750.212636.7
The above table is in accordance with BS EN 60228 (previously BS 6360)

Current Carrying Capacity

Nominal Cross Sectional Area  (mm²)Current Carrying Capacity AmpsMaximum Mass Supportable
By Twin Flexible Cord
 Kg
Single-Phase ACThree-Phase AC
0.53.03.02
0.7556.06.03
The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations.

Voltage Drop:

Nominal Cross Sectional Area  (mm²)DC Or Single-phase AC
(mV/A/m)		Three-phase AC
(mV/A/m)
0.593.080.0
0.7562.054.0
Conductor operating temperature: 60ºC
The above table is in accordance with Table 4F3B of the 18th Edition of IEE Wiring Regulations BS7671 and IEC 60364-5-52.
