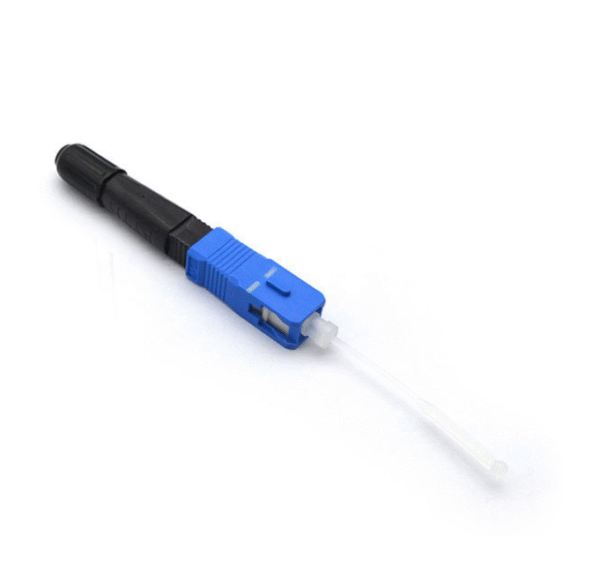

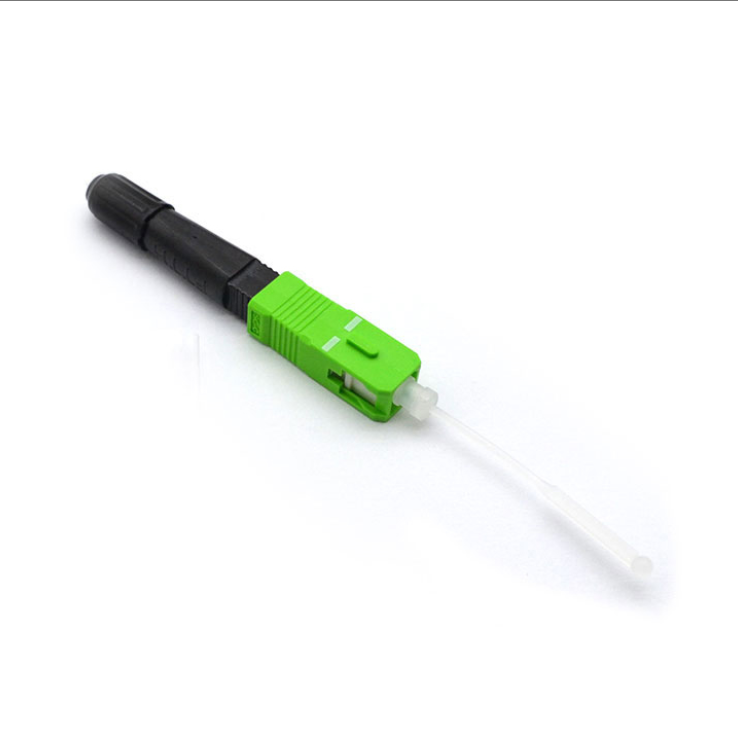

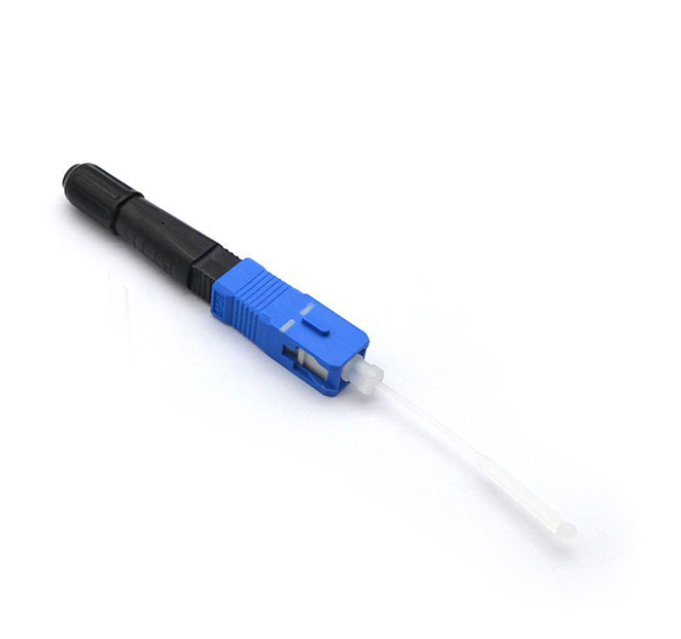

Hot Melt FTTH SC/APC SC/UPC Quick Assembly Connector
The invention relates to a fused optical fiber connector, which connects the product with the optical cable through the optical fiber welding machine, has the advantages of simple operation and stable product performance, and is widely used in optical fiber to the home.
Hot Melt FTTH SC/APC SC/UPC Quick Assembly Connector Features:
- Low insertion loss and high return loss.
- Excellent end-face geometry parameter.
- Easy to operate, high reliability.
Hot Melt FTTH SC/APC SC/UPC Quick Assembly Connector Application Scenarios:
- FTTH、FTTR and FTTX
- Image transmission Networks
- Optical test instrument
- Photoelectric automatic control system
Hot Melt FTTH SC/APC SC/UPC Quick Assembly Connector Technical Specifications:
- Material

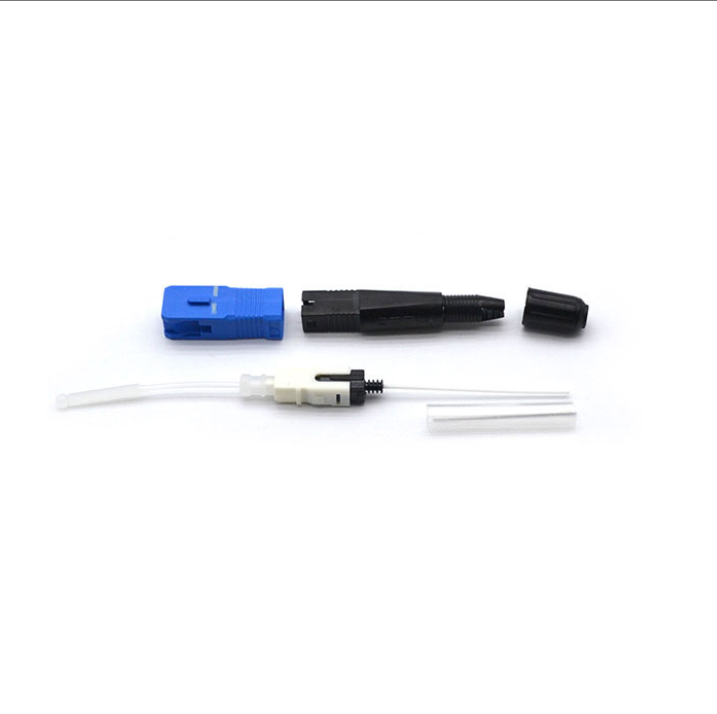

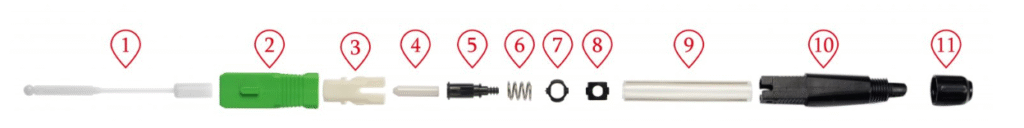

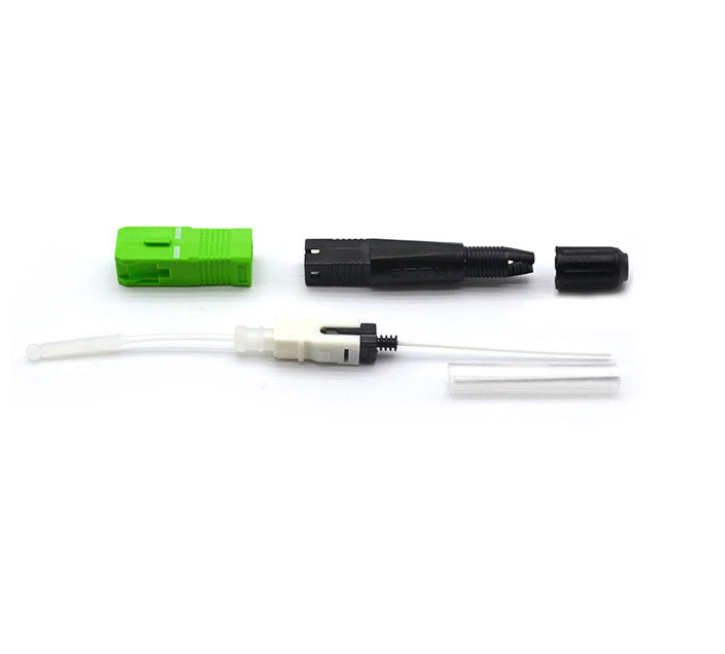

| SN | Part Name | Material | Remarks |
| 1 | Dust Cap | PE | Consistent with ROHS、REACH |
| 2 | Housing | PBT | |
| 3 | White Hou | PBT | |
| 4 | Ceramic Ferrule | Zirconia ceramics | |
| 5 | Caudal Peduncle | PC | |
| 6 | Spring | SUS304 | |
| 7 | Stopper | PC | |
| 8 | Clasp | PC | |
| 9 | Fusion tube | 304、PE、EVA | |
| 10 | Main-body | PC | |
| 11 | Tail sleeve | PC |
- Performance characteristics
| SN | Project | Index | Remarks |
| 1 | Applicable for | Indoor or Outdoor FTTH | Consistent with GR-326-CORE；
IEC 61300； YD/T2341.1-2011 |
| 2 | Cable diameter | 2*3mm、φ3.0mm | |
| 3 | Operating Wavelength | 1260～1650nm | |
| 4 | Insertion loss | 0.3dB（Typical）;0.5dB（Max.） | |
| 5 | Return loss | APC ≥50dB;UPC≥45dB | |
| 6 | Repeatability | ≤0.2dB | |
| 7 | Interchangeability | ≤0.2dB | |
| 8 | Tensile Strength | ≥45N(Δ IL≤ 0.2dB) | |
| 9 | Operation time | About 50S | |
| 10 | Reusable | ≥10 times | |
| 11 | Operating Temperature | -40～+85℃ |
