Product details
Description

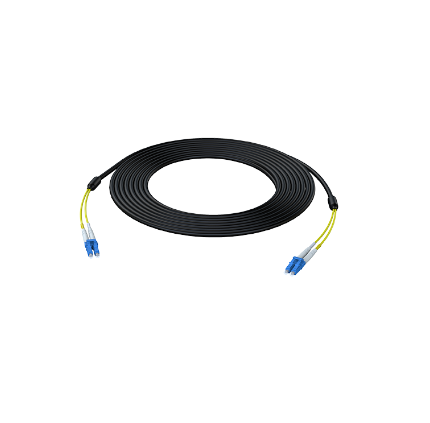

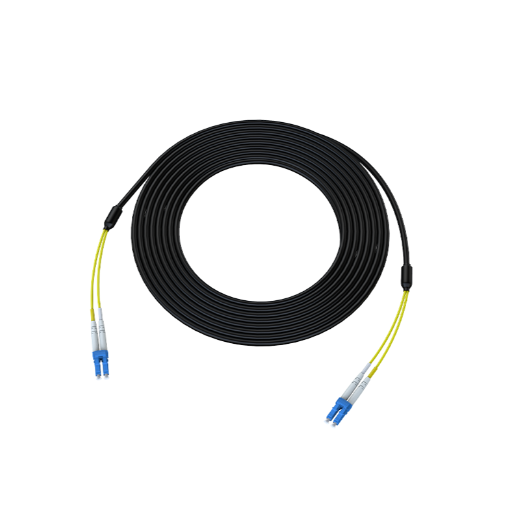

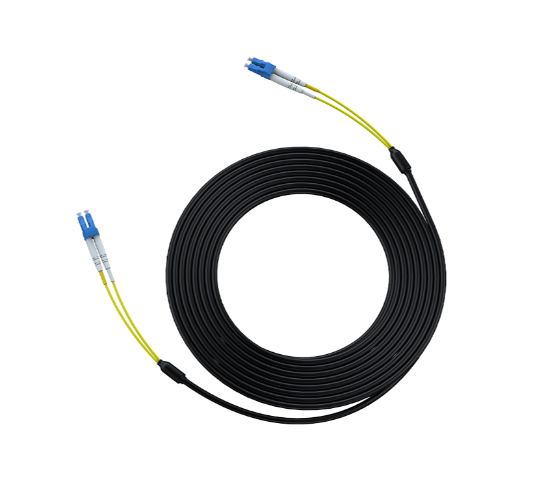

Bundle pigtails, or pigtail bundles and multi-core connectors, have only one end with a connector, and the other is a broken optical fiber end. They are connected to other optical fiber cores by fusion and often appear in optical fiber terminal boxes. They are used to connect optical cables and terminal equipment.

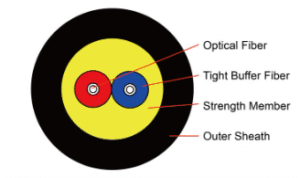

Pigtail drawing
Product features
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
- Provides moisture and dust protection for use in harsh industrial environments.
- 100% optically tested to ensure quality performance assemblies.
- “Available in single mode and multimode styles to work with any common fiber type.
- A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
- Special specifications are available upon the customer’s request.
Product application
- Data transmission Networks
- Image transmission Networks
- FTTA
- Optical test instrument
- Photoelectric automatic control system
