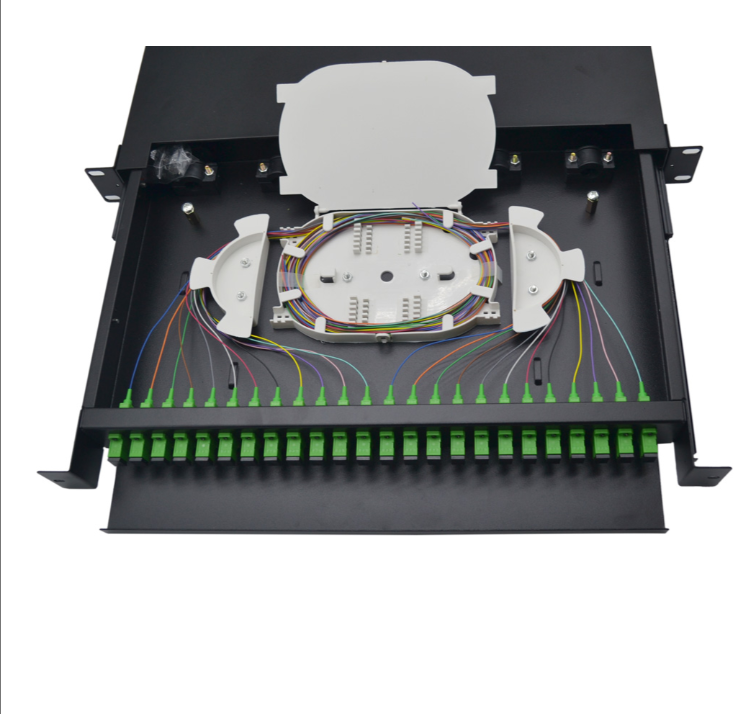

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 2

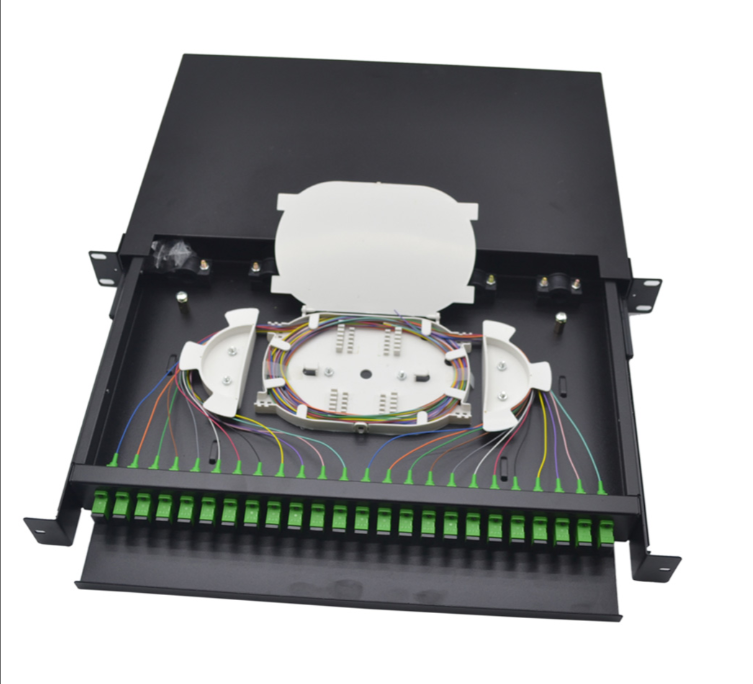

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 3

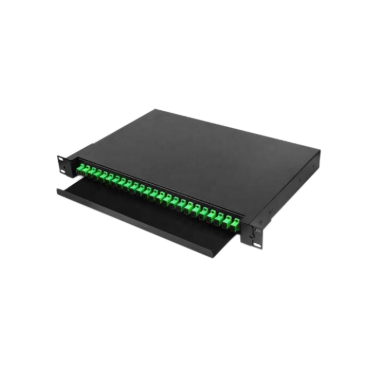

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 4

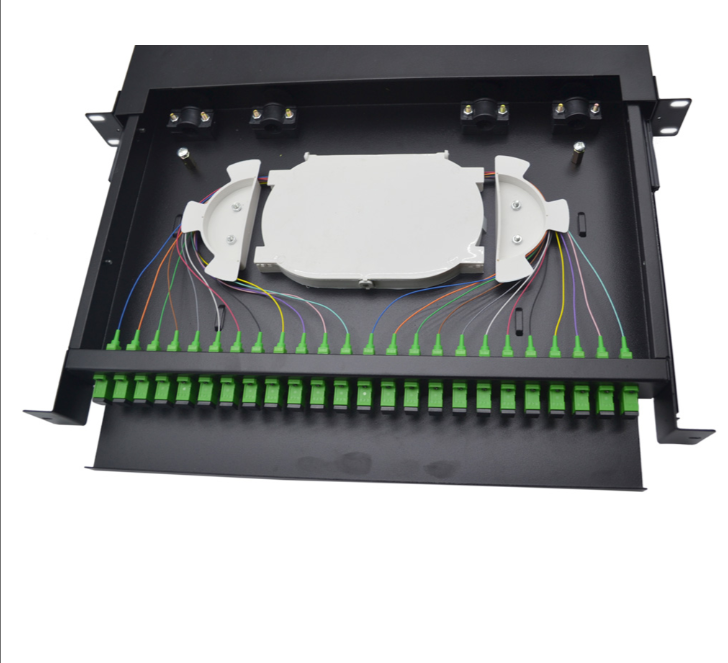

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 5

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel

  • Model Name: Optical Distribution Fram(CFO-ODF-02C)
  • Application: Data Processing Centers
  • Applicable cable types: optical cable, pigtail
  • Material: Cold-rolled Steel Plate
  • Color: Black
  • Capacity: 12  cores
  • Fit For: 19 Inch Rack
  • Suitable For: SC;LC;FC;ST Connectors
  • Plugging times：300
  • Operating Temperature: -40~ +85（℃）
Categories ,
Chat on WhatsApp
Get Information
Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel

The case is made of cold rolled steel, Electrostatic Spraying, and provides 12 single or double adapters, available for SC, LC, FC, ST

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Features:
  1. Design of fixed panel
  2. Drawing type structure, convenient construction operation
  3. Fit for“19” rack.
  4. Suitable for FC, SC, LC, ST, etc

Applications

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Applications :

  1. Optical Access Network
  2. Data Processing Centers
  3. Cable television
  4. Local Area Network
  5. Coarse Wavelength Division Multiplexer

Configuration

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Configuration:

Item Specification Remark
Size 482mm*315mm*3U With Mounting rack
Length 435mm The mounting rack is not included
Capacity 12F
Splice Tray Quantity 1pcs Or 1*24F
Splice Tray Capacity 12 F
Adapter Type Simplex SC SCUPC or SCAPC
Adapter Quantity 12pcs
Pigtail 12 pcs（1 group ） 12 colors per group
Material of body Cold-Rolled steel plate
Thickness of material 1.2±0.1mm
Color Black According to customer requirements
Weight 3.6kg
Operating Temperature -40～+85℃
