Product details

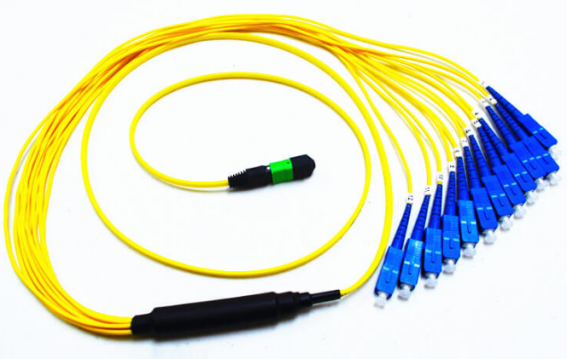

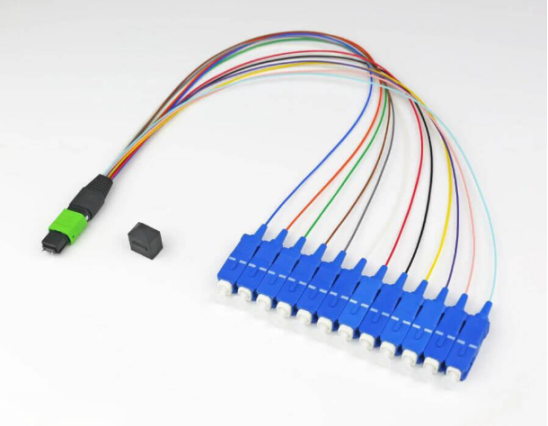

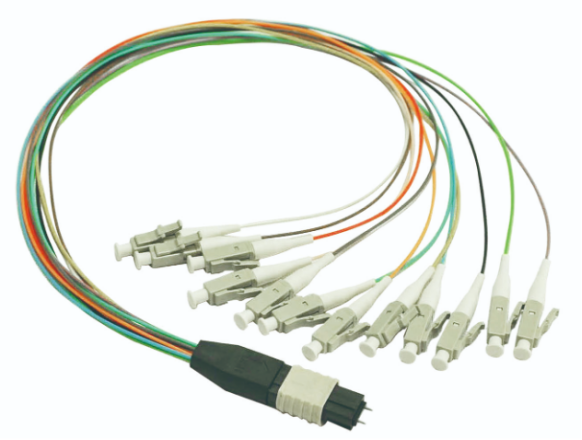

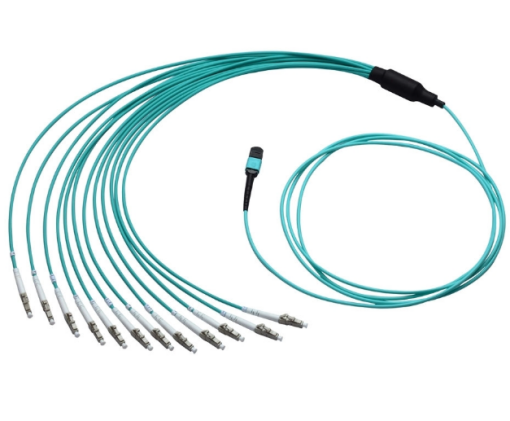

Breakout cable is used to split 12-core MPO/MTP connector terminated on trunk cable into simplex or duplex connectors. MPO/MTP connector is connected with trunk cable, while simplex or duplex connector on the other side can provide a different fan-out length which is convenient for device connection.
Product features:
- High-precision MPO/MTP connector and simplex/duplex LC/SC.
- Factory pre-termination, 100% tested to ensure the transmission performance.
- Rapid configuration, reduce installation time.
- Rapid upgrading, support parallel transmission.
- Two parallet steel wires ensure tensile strength
- customized cable length and fan-out length
- Loose tube structure, OFNR,OFNP and LSZH materials are available for outer sheath
Standards:
- TIA/EIA 604-5.
- IEC 61754.
- Telcordia GR-1435-CORE Issue 2
- Telcordia GR-326-CORE Issue 4
Applications
- Internal frame cabling
- MPO/MTP adapter panels
