Product details
Description

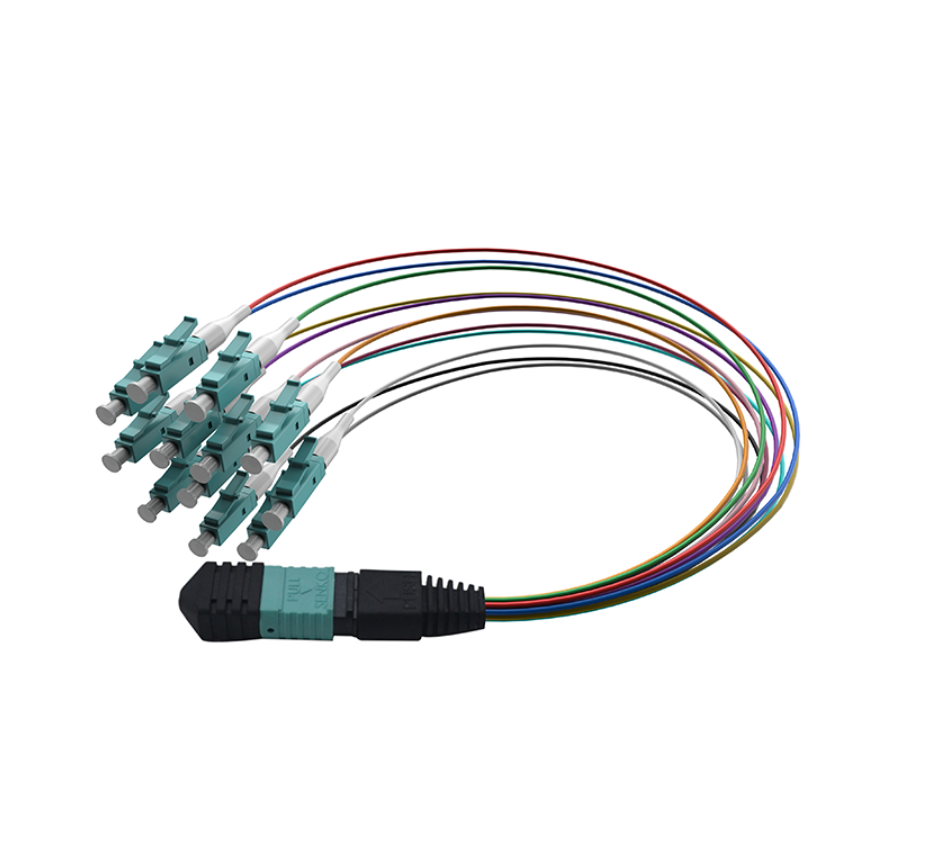

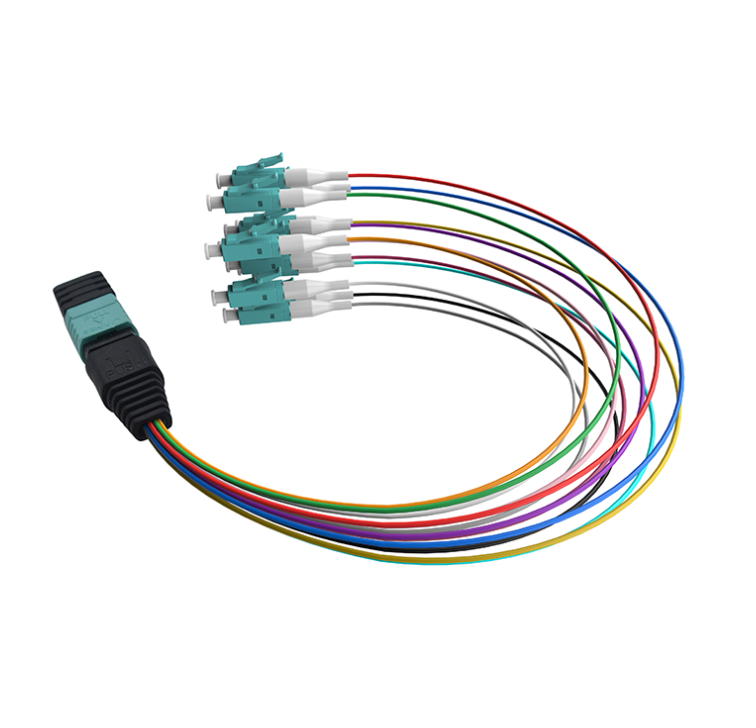

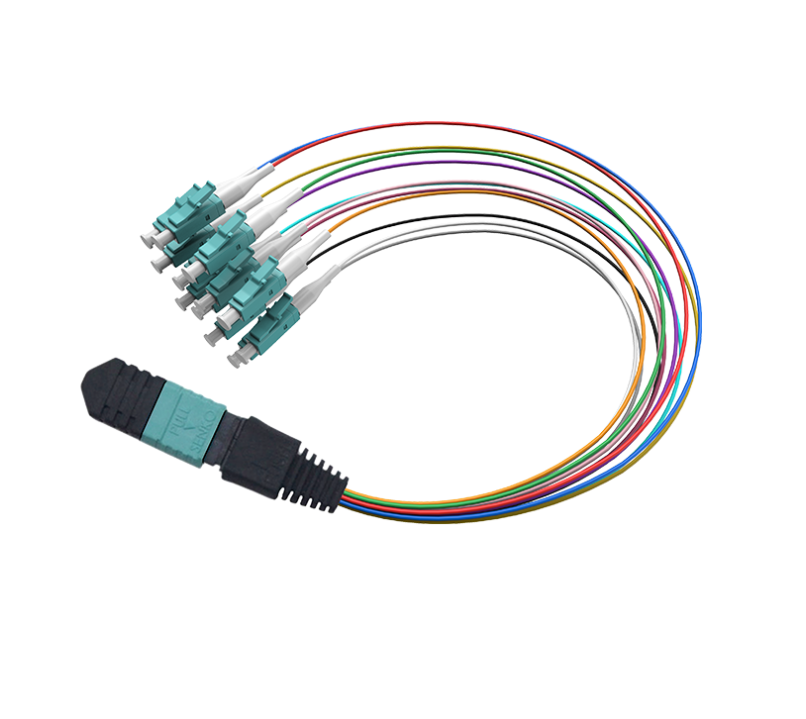

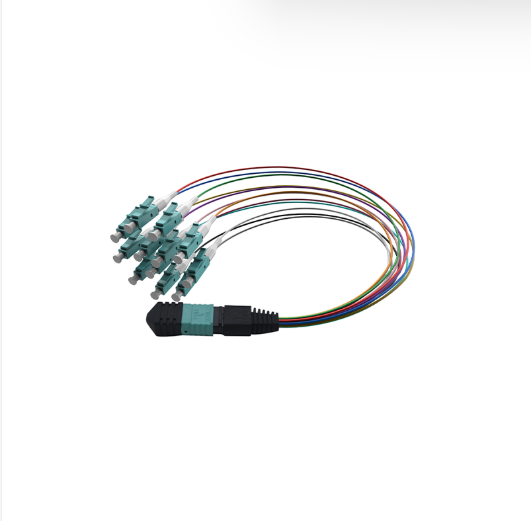

The MPO Fan-out Patch cord are multi-fiber ribbon cable rated for OM4 40GB Multimode applications. They offer up to 12 times the density when compared to the same-size SC connector and utilize a push-pull design for easy mating and removal. The MPO Fan-out Patch cord w/ pins to LC Fan-out cable assemblies are factory terminated and tested and provide significant installation time savings. The MPO to LC fan-out is ideal for making connections within a rack or wall-mounted fiber enclosures. Carefiber’s MPO products are fully compatible with US Conec MTP products.
Pigtail drawing
Product features
- 12 Fiber MPO w/ pins (male) to LC Fan-out for server-to-switch and other link aggregation
- .9mm Diameter OFNP (Plenum-Rated) Jacket complies with strict building codes
- OM4 40GB 50/125 Multimode cabling for aggregation of links
- Fully compatible with US Conec MTP products
Product application
- Ethernet
- LAN
- Server Farms
- Voice/Video/Data
