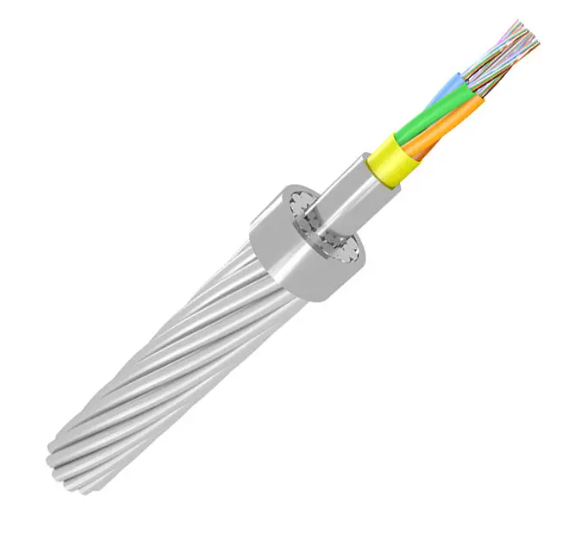

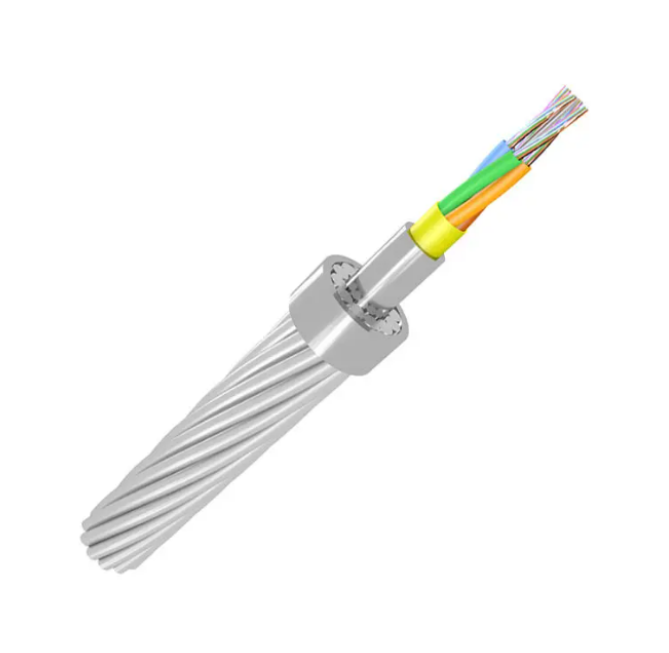

Aluminium tube OPGW

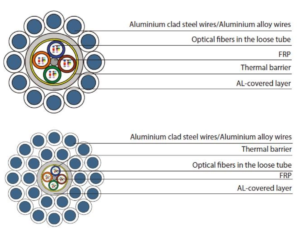

Single/Double Armour Layers
The Aluminium tube is surrounded by single or double layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
■ Characteristic and Application:
- Good anti-corrosion performance.
- Material and structure are uniform, good resistance to vibration fatigue.
- Short circuit current has small effect on the optical ber transmission properties.
- Good anti-lightning performance.

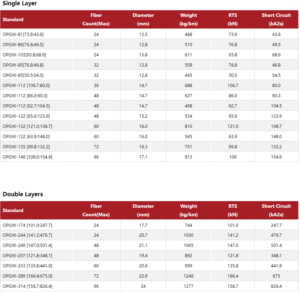

■ Typical Parameters:
■ Packaging and Drum:
1.Cable Sheath Marking
Unless otherwise specified, the cable sheath marking shall be as follows:
Color：White
Contents：starmile, the year of manufacture, the type of cable, cable number, length marking Interval: 1±0.2% m
Outer sheath marking legend can be changed according to user’s requests.
2.Reel Length
Standard reel length: 2/3 km/reel, other length is also available.
3.Cable Drum
The cables are packed in fumigated wooden drums or plywood drums.
4.Cable Packing
Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage. The inner end is available for testing.
