Description
OptiTap-SC/APC Adapter
Product Description

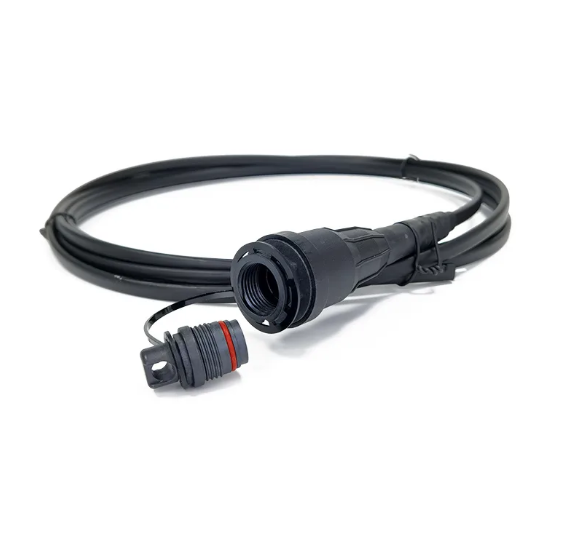

STARMILE Cable OptiTap Adapter provides a fast and reliable installation solution with a special fool-proof design that ensures blind-mating functionality. It delivers excellent performance when mating with H-connector receptacles and is fully compatible with Corning OptiTap-SC connectors.
The adapter supports both flat drop and round cables, available in armored or non-armored versions, offering flexibility for different deployment needs. Designed as an industrial-grade, panel-mount plastic adapter, it functions as a sealed feed-through for secure and durable fiber connections in outdoor environments.
Features
- IP68 waterproof, salt-mist proof, humidity proof, dust proof.
- Provides moisture and dust protection for use in harsh industrial environments.
- Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
- IL<0.3 typically.
Specification
| Adapter type | OptiTap-SC |
|---|---|
| Fiber Counts | Simplex |
| Insertion Loss Standard type | less than 0.3dB |
| Insertion loss Elite type | Less than 0.2dB |
| Return Loss | PC >50dB, APC>60dB |
| Durability (500 matings) | less than 0.2dB |
| Flammability Rate | UL94-V0 |
| Working Temperature | -25~70℃ |
Application
- FTTH
- Outdoor Areas
- Harsh Environment
