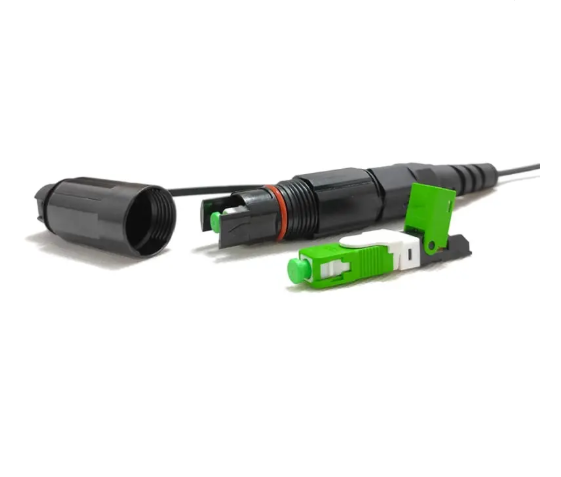

OptiTap Reinforced Optical Connector
Product Description
OptiTap Field Installable Connector is a hardened and reinforced fiber optical connector, which compatible with ESC250D, Sumitomo, Fujikura and Furukawa fast connector. Can be used for 2.0*5.0mm outdoor flat drop cable.
OptiTap reinforced adapter is an excellent solution compatible with Coring OptiTap equipment, it is a filed assembly connector adapter, don’t need to be terminated in a laboratory, it is easy to install and no need special tools.
Features
- Waterproof level: IP67;
- Compatible with ESC250D, Sumitomo, Fujikura and Furukawa fast connector;
- Fully compatible with the connector systems of OptiTap;
- Field installation, easily mounted on the field mount optical connector, don’t need any specific tools or devices;
- Low insert loss and high return loss;
- High mechanical strength performance;
- PEI material, Acid and alkali resistance, Ultraviolet resistanc;
- Outdoor use, 20-year service life.
Specification
Optical Characteristics | |
| Compatibility | Compatible with ESC250D/APC, Sumitomo, Fujikura and Furukawa fast connector |
| Cable type | 25mm or 23mm flat drop cable |
| Fiber count | 1F |
| Typical Insertion Loss | ≤0.3 dB |
| Max Insertion Loss | ≤0.5 dB |
| Time to terminate | 2 min |
| Max Tensile Strength | 200N/m |
Mechanical Characteristics | |
| Waterproof level | IP67 |
| Allowable mating | 50 times |
| Allowable tensile strength | 200N (within 60sec) |
| Material Plastic | Reinforced PEI |
| Color | Black |
| Operating Temperature | -40°C to +90 °C |
| Life Time | 20 years |
Application
- FTTH;
- Outdoor Areas;
- Harsh Environme.
