1 Core Round LSZH Optical Drop Cable (GJYFXJZY-1FO)

Model Name: Indoor and Outdoor Fiber Optical Cable (GJYFXJZY-1FO)

Fiber: 1 fibers(Natural)

Buffer: White -LSZH

Subunit: Grey- LSZH

Strength Member: Aramid yarn

Sheath: Grey-LSZH / Anti-UV

Diameter: 5.5±0.4mm

Product details

This drop cable is an LSZH sheath fiber cable for indoor wire and access network. The Aramid yarn strength member gives the cable good crush resistance and fiber protection performance.

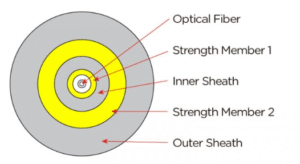

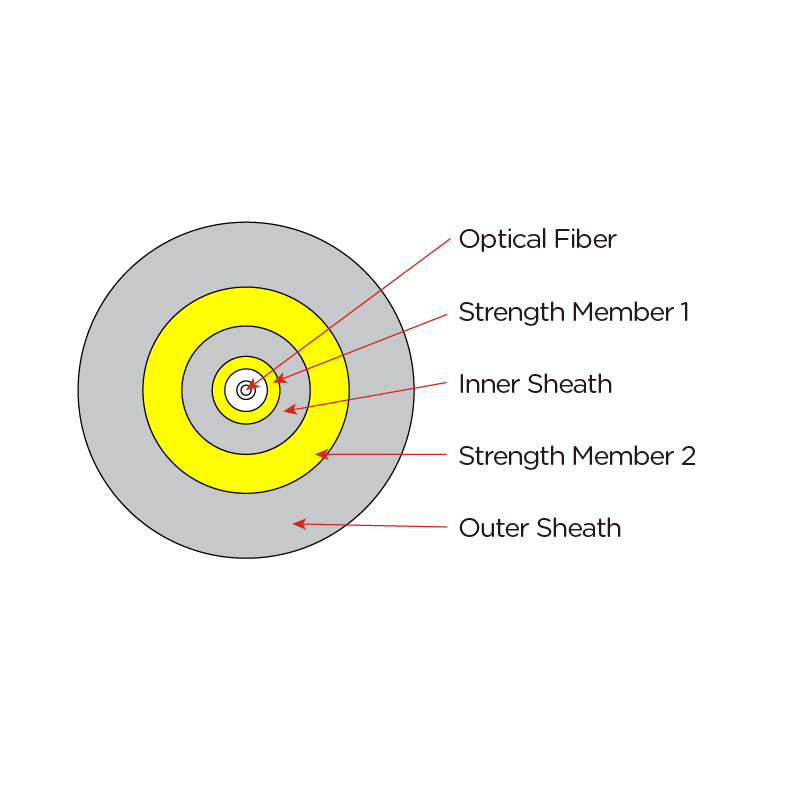

Cable section constucture:

Product features:

  • Non-metallic and environmentally friendly design with no internal glue filling.
  • High-density optical cable with a small diameter and lightweight is easy to install and arrange.
  • Single-mode, multi-mode, and micro-bend resistant optical fiber types are available.
  • Fiber optic cables tend to split in the middle.

Product application:

  • Vertical cabling use.
  • FTTx indoor optical cable use.
  • Fiber optic loop cabling.
  • Data center access.

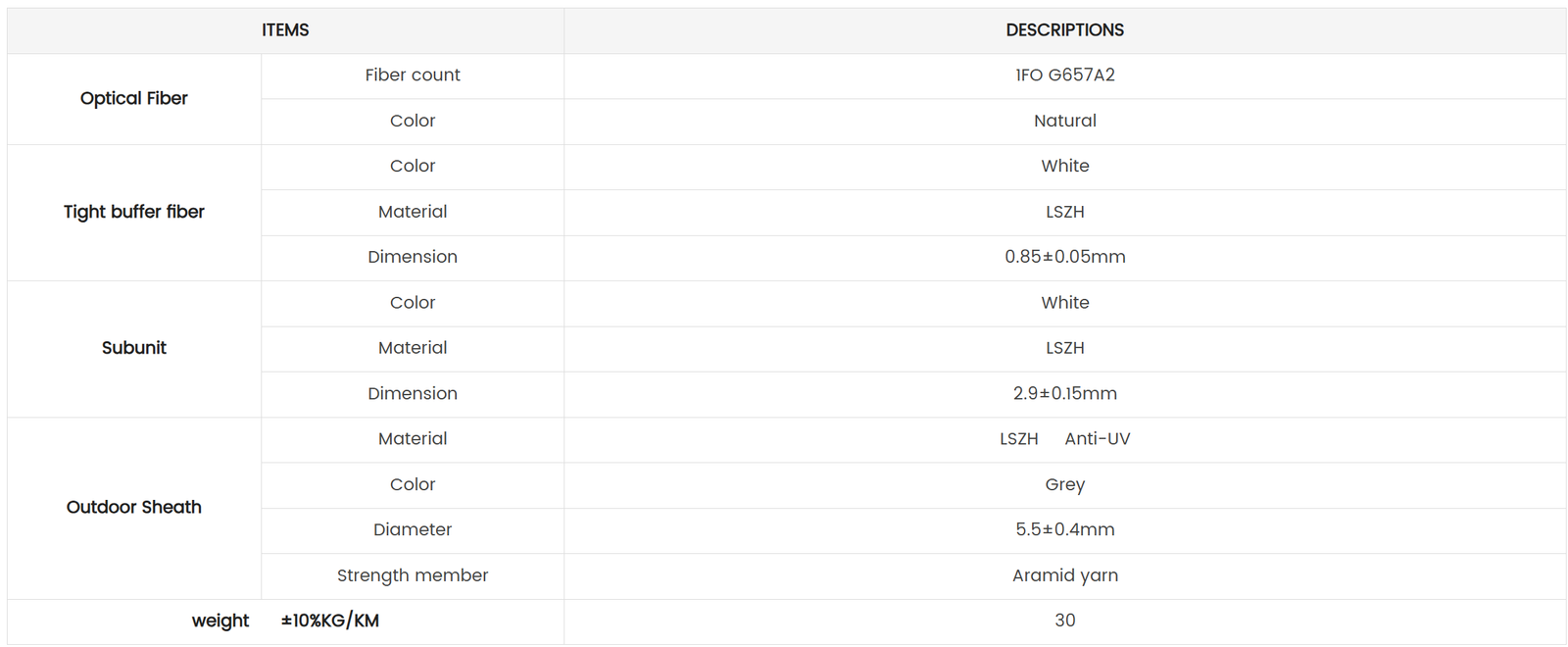

Technical specification

Item Description
Optical Fiber Fiber count 1FO G657A2
Color Natural
Tight buffer fiber Color White
Material LSZH
Dimension 0.85±0.05mm
Subunit Color White
Material LSZH
Dimension 0.45±0.05mm
Outdoor Sheath Material LSZH Anti-UV
Color Grey
Diameter 5.5±0.4mm
Strength member Aramid yarn
Weight ±10%KG/KM 30

Packaging & Shipping

Packing and Marking:

  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3,000m±2%; as required
  • 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
  • Manufacturing year and month Roll—direction arrow;
  • Drum length; Gross/net weight;

Packaging and Shipping:
