Cable Storage Assembly | |||||||||||||||||||||||||
 |  | ||||||||||||||||||||||||
1. Use: | |||||||||||||||||||||||||
| Cable Storage Assembly is used for storage of reserved optical fiber cable. it is divided into inserted type storage and outside coil type storage. | |||||||||||||||||||||||||
2. Model: | |||||||||||||||||||||||||
| Name | Model | Dimension | Collocation | Suitable Cable Range | |||||||||||||||||||||
| Diameter(mm) | Weight(kg) | ||||||||||||||||||||||||
| Cable Storage Assembly | ZC-TJY 660-T | 660 | 4.1 | Small splint | Applicable to OPGW optical cable | ||||||||||||||||||||
| ZC-TJY 900-T | 900 | 7.7 | Small splint | Applicable to OPGW optical cable | |||||||||||||||||||||
| ZC-TJY 1030-T | 1030 | 11.8 | Small splint | Applicable to OPGW optical cable (OD＞15mm） | |||||||||||||||||||||
| Cable Storage Assembly | ZC-TJY 660-H | 660 | 4.1 | Small splint | Applicable to ADSS optical cable | ||||||||||||||||||||
| ZC-TJY 900-H | 900 | 7.7 | Small splint | Applicable to OPGW optical cable | |||||||||||||||||||||
| ZC-TJY 1030-H | 1030 | 11.8 | Small splint | Applicable to OPGW optical cable (OD＞15mm） | |||||||||||||||||||||
| Explain: 1.T – G for tower – s * for pole – type of stainless steel band hoop 2.When the residual cable frame is used for the installation on the tower, two pairs of small splints are provided. When the residual cable bracket is used for pole installation, two sets of pole supports are provided. | |||||||||||||||||||||||||
3. Accessories for Cable Storage Assembly | |||||||||||||||||||||||||
 |  | ||||||||||||||||||||||||

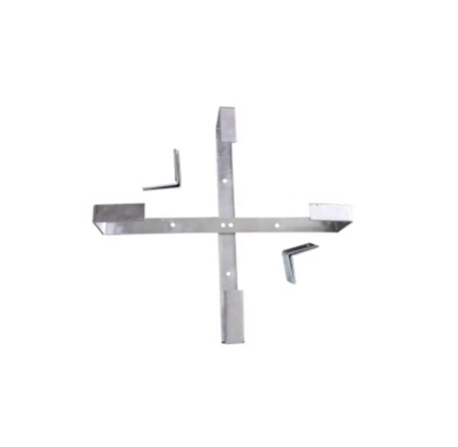

| Support for Pol | Small Splint | ||||||||||||||||||||||||
| Purpose: the pole support for the residual cable frame is used for fixing the residual cable frame on the pole; the small splint is used for fixing the residual cable frame on the tower. | |||||||||||||||||||||||||

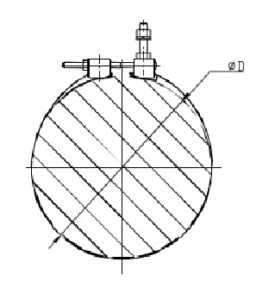

Specification of support for pole of cable support | |||||||||||||||||||||||||
| Name | Model | Core No. | Weight (kg) | Material | |||||||||||||||||||||
| Support for Pole | ZC-TJY-H1 | 150-310 | 0.48 | Stainless Steel Strip | |||||||||||||||||||||
| Support for Pole | ZC-TJY-H2 | 311-460 | 0.52 | ||||||||||||||||||||||
| Support for Pole | ZC-TJY-H3 | 461-600 | 0.57 | ||||||||||||||||||||||
| Support for Pole | ZC-TJY-H4 | 601-800 | 0.62 | ||||||||||||||||||||||
| Support for Pole | ZC-TJY-H5 | 801-1000 | 0.72 | ||||||||||||||||||||||

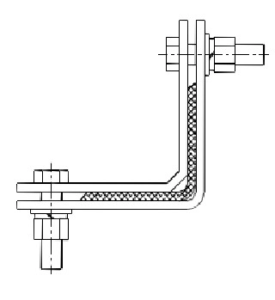

Specification of small splint | |||||||||||||||||||||||||
| Name | Model | Angle Iron Dimension for Iron Tower (mm) | Weight (kg) | Material | |||||||||||||||||||||
| Small Splint | ZC-TJB-70 | ≤70 | 1.02 | Hot dip galvanized steel | |||||||||||||||||||||
| Small Splint | ZC-TJB-100 | 71-100 | 1.22 | Hot dip galvanized steel | |||||||||||||||||||||
| Small Splint | ZC-TJB-150 | 101-150 | 1.61 | Hot dip galvanized steel | |||||||||||||||||||||
