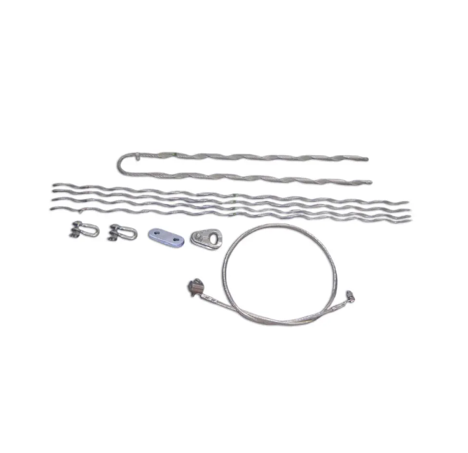

Preformed Dead-end for OPGW
■ Introduction:
Dead-end for OPGW is mainly used for the corner towers, the middle tower, and Terminal Tower successive connections. Screw Clamp materials, primarily for aluminum-clad steel wire, with a very strong resistance to tensile strength, protection, and support of fiber optic cable to play the role of damping. Clamp grip cable rated tensile strength of not less than 95%, fully meets the installation of mechanical properties of the power cable. Chang Chin-resistant fiber optic cable package included: outer preformed wire, twisted wire supporting the inner pre-connect fittings, and so on.
Preformed Dead-end has excellent fatigue resistance, and the simple structure, easy installation, and quick, no special equipment, significantly reduce construction costs.
■ Pictures and illustrations:

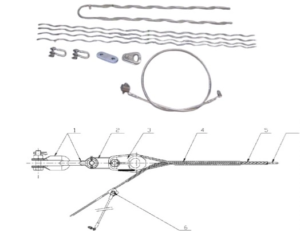

1. U-Clevis 2.PD-Clevis 3. Thimble 4. Dead-end Component 5. Structural Reinforcing Rods 6. Grounding Clamps

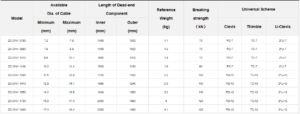

■ Model Specification:
Note:
1. Rods material: Aluminum clad steel wire.
2. The above configuration is conventional. If special configuration is required, consult the technical department of the company.
