Product feature

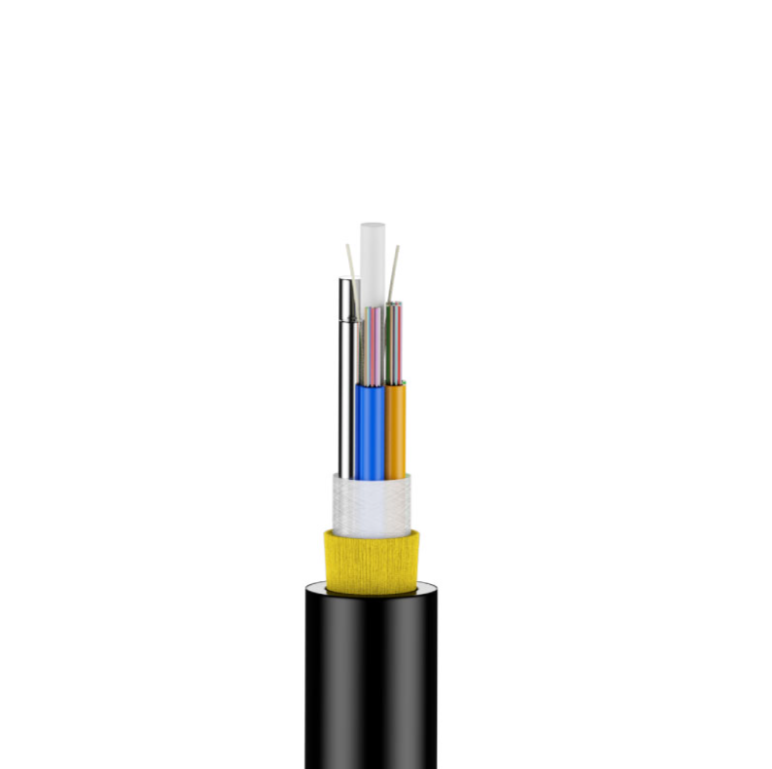

Two Jacket and Stranded loose tube design. Stable performance and compatibility with all common fiber types.
Track-Resistant outer jacket available for high voltage(≥35KV).
Gel-Filled buffer tubes are S-Z stranded. Instead of Aramid yarn or glass yarn, there is no support or messenger wire required. Aramid yarn is used as the strength member to assure tensile and strain Performance.
Lightweight and small diameters reduce the load caused by ice and wind and the load on towers and backdrops.
Large span lengths and the largest span is over 1000m.
Good performance of tensile strength and temperature.
| Technical specification | ||||||||
| Ref.Outer Diameter(mm) |
Ref.Weight(kg/km) | Rec. Daily Max. Working Tension(kN) |
Maxalloeable Working Tension(kN) |
Break Strength(kN) | Strength Member CSA(mm²) |
Modulus of Elasticity CSA(kN/mm²) |
Heat Expansion Coefficient Coefficient(x 10-6/K) |
|
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 |
