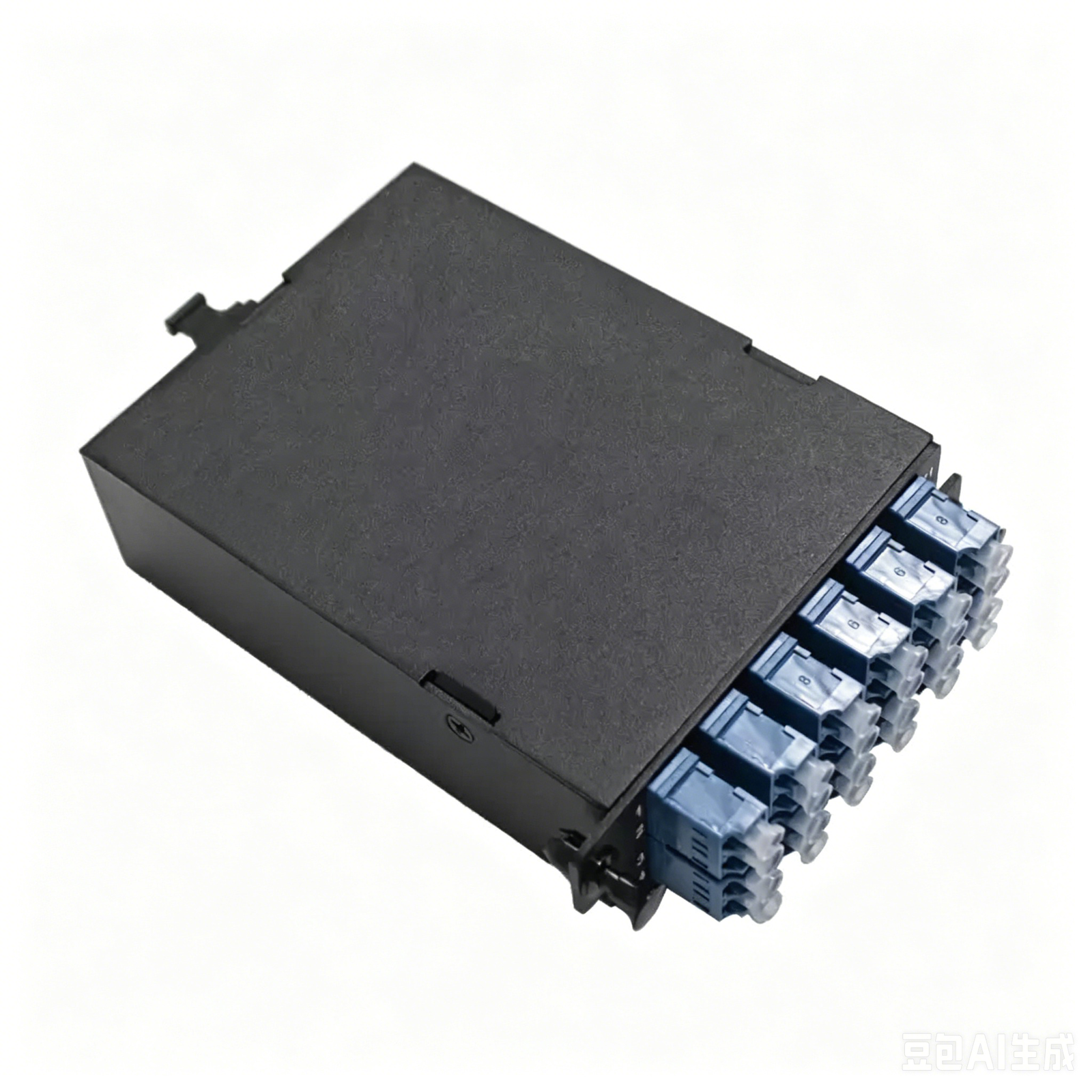

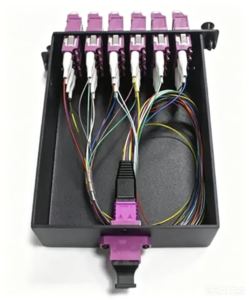

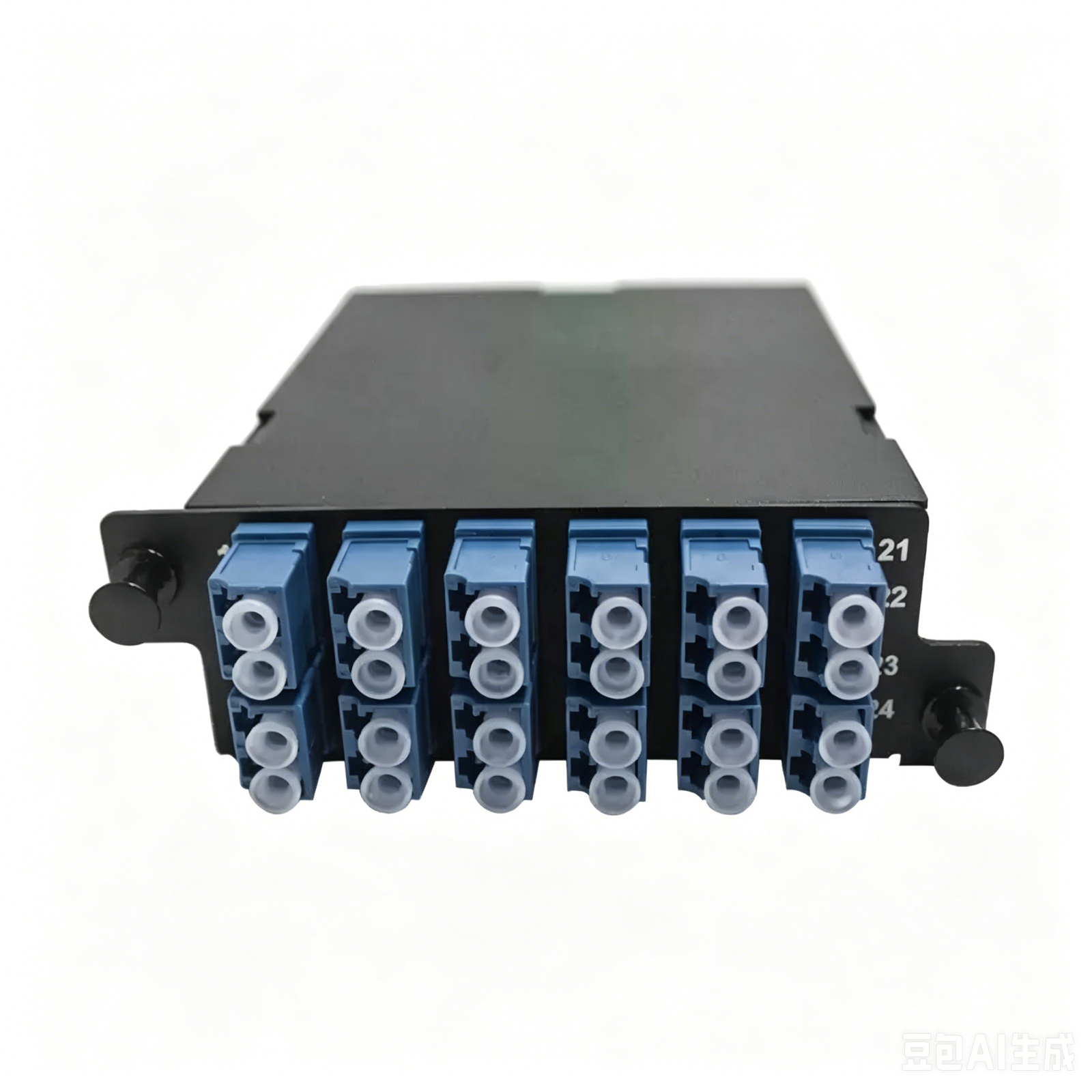

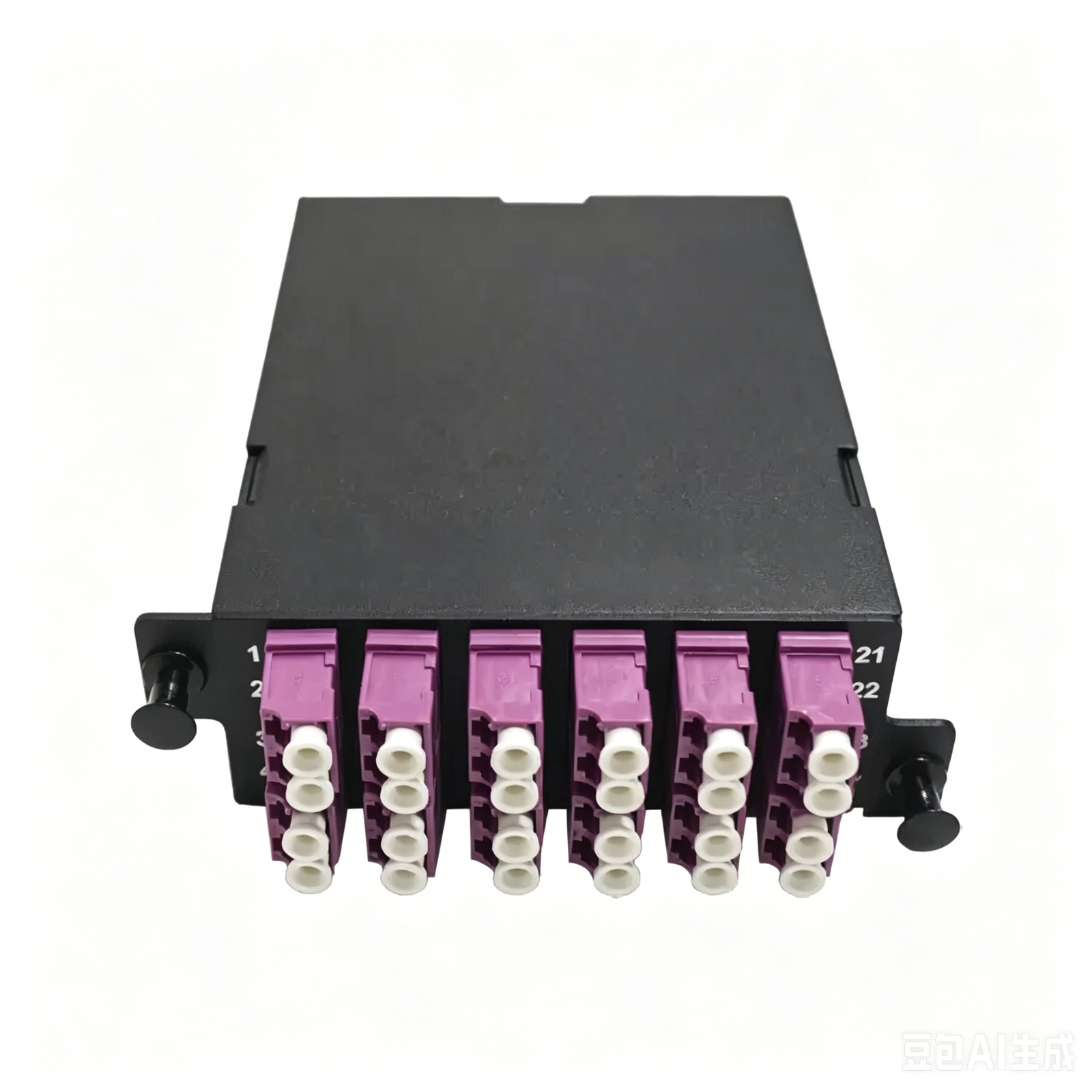

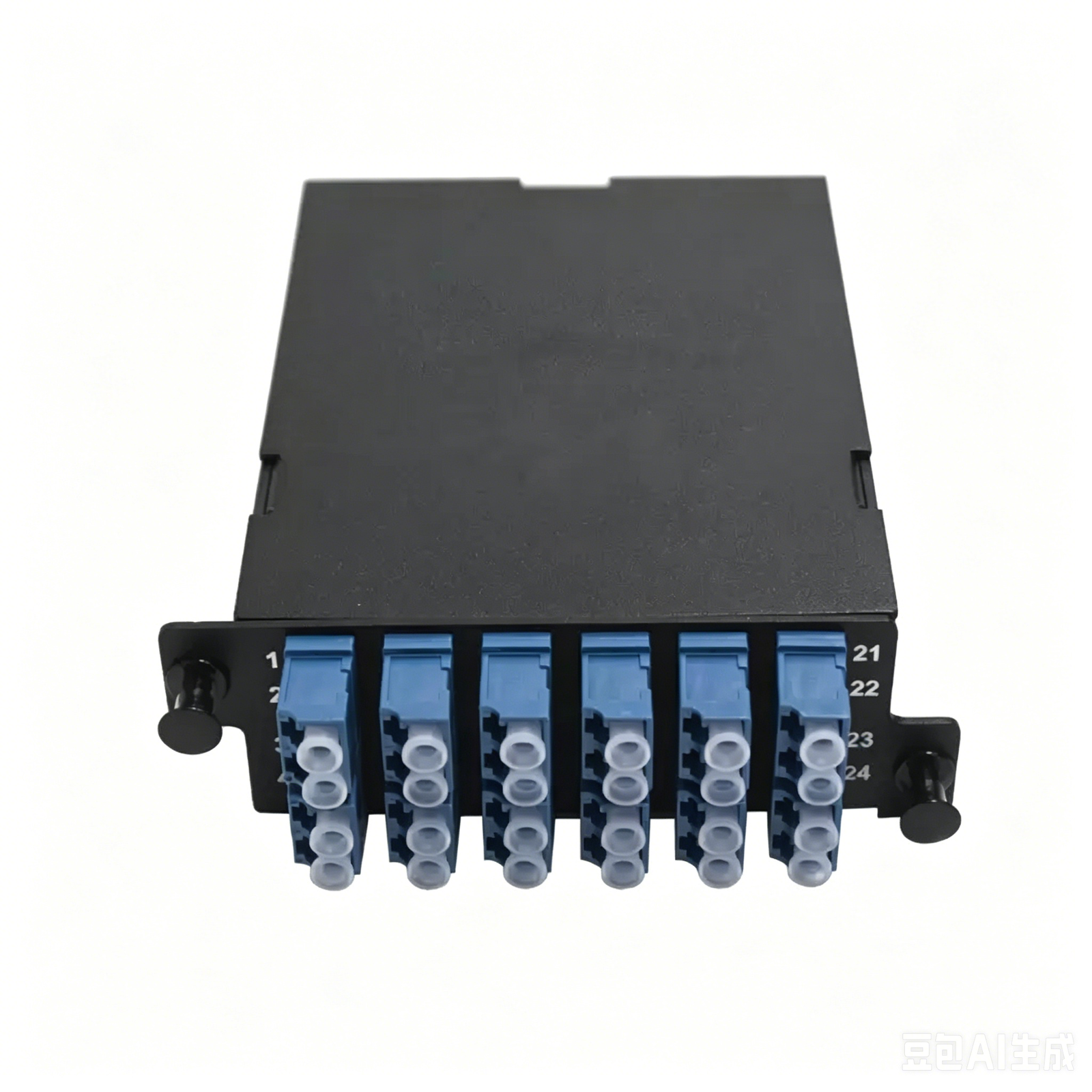

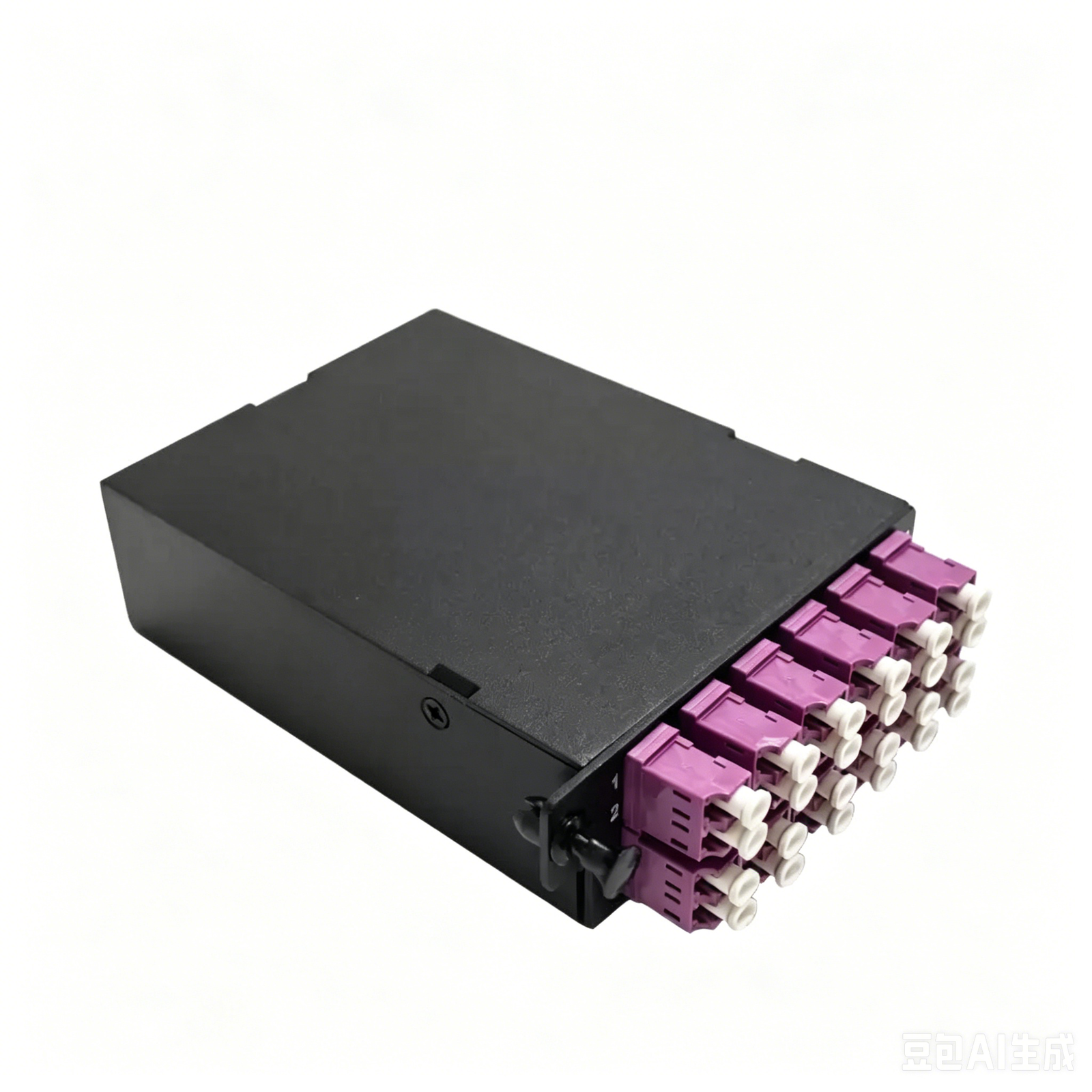

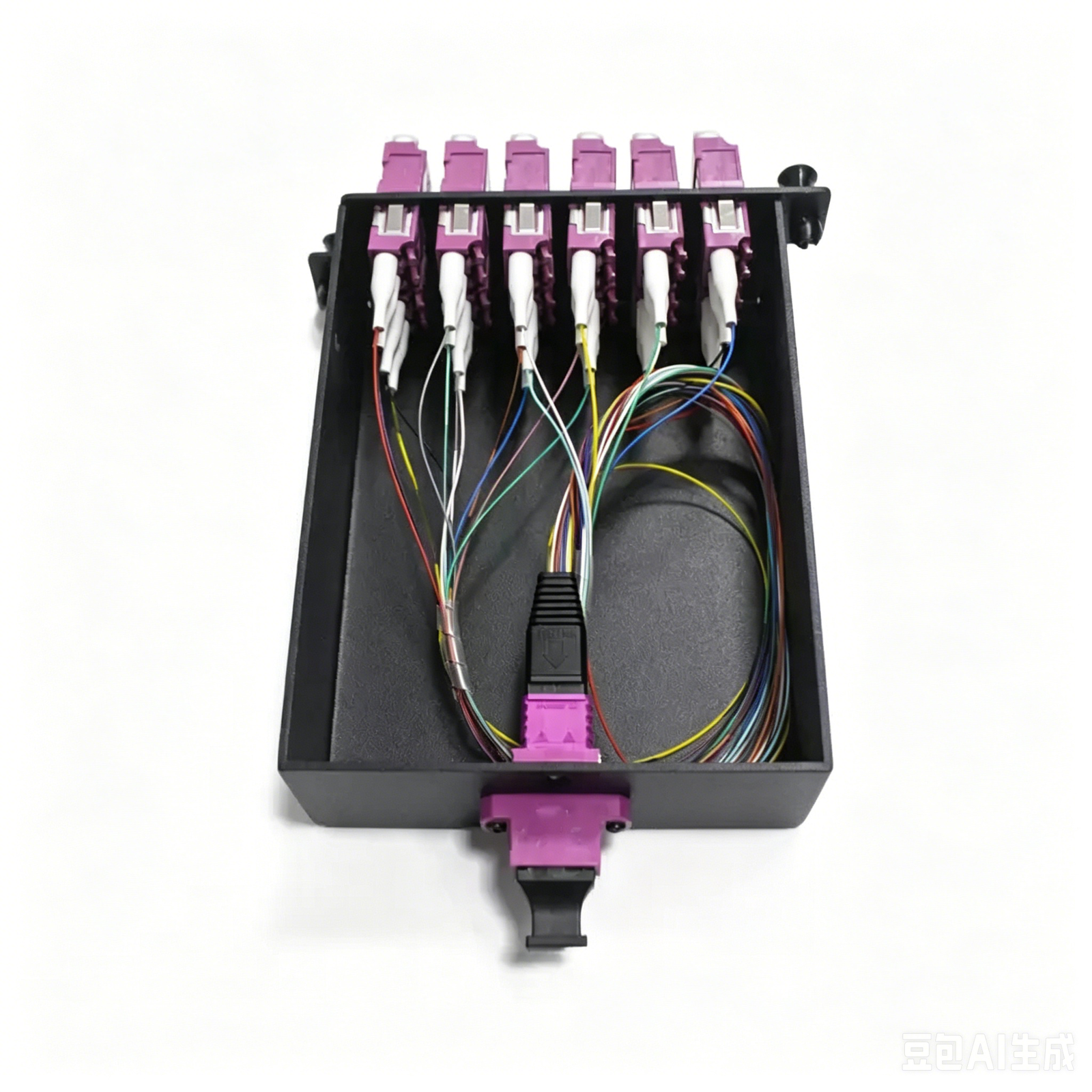

DescriptionFiber Optic Cassette is a pre-terminated, high-density solution for efficient fiber management. Available in LC, SC, and MPO/MTP configurations, it ensures low insertion loss and quick deployment. Designed for data centers, telecom, and FTTH networks, it fits standard 19″ rack enclosures for seamless integration. Its enclosed design protects fibers, ensuring durability and long-term performance.
Features- Compact cassette design for efficient fiber management and organization
- Pre-terminated and factory-tested for low insertion loss and high performance
- Available in various configurations (LC, SC, MPO/MTP) to meet different network needs
- High-density solution for data centers, telecom networks, and enterprise applications
- Plug-and-play connectivity for quick and easy installation
- Enclosed structure provides protection against dust and physical damage
- Compatible with standard fiber optic patch panels and enclosures
- IEC 61754-7, ANSI/TIA-568.3, ISO/IEC 11801, RoHS Compliant;
Specification| Connector Type | LC / SC / MPO / MTP |
| Fiber Type | Single-mode / Multimode (OM3, OM4) |
| Polarity Options | Type A, Type B and Type AF |
| Housing Type | Cassette |
| Port | 12Port/24Port |
| Operation temperature | – 40℃ ~ +80℃ |
| Mounting Compatibility | Standard 19” rack enclosures & patch panels |
Application- Data centers and high-density fiber networks
- Telecom
- FTTH (Fiber to the Home) and access networks
- LAN/WAN environments
