Suspension for ADSS
Suspension Set for ADSS pre-twisted wire with single-and double-twisted wire two kinds of pre-design, single-storey pre-twisted threads within the file folder for the 400m distance connections, double the pre-twisted threads are generally used for large file from the folder ( within 1000m) the connection between, may be based on actual need to select a different
installation method.

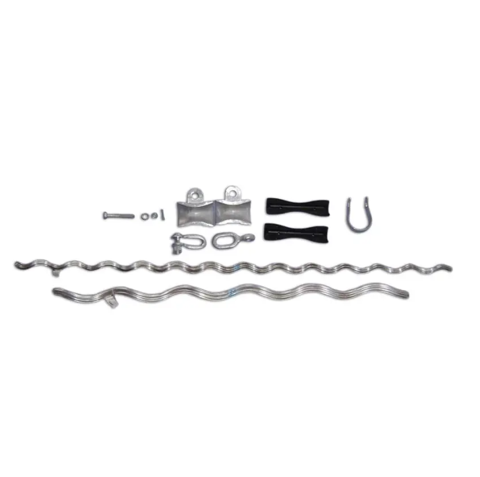

■ Pictures and illustrations:

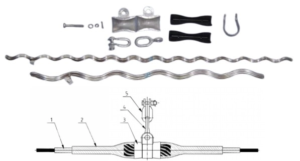

1. Structural Reinforcing Rods 2. Dead-end Component 3. AGS Clamp 4. Eye Chain Link(Type ZH) 5. U-Clevis

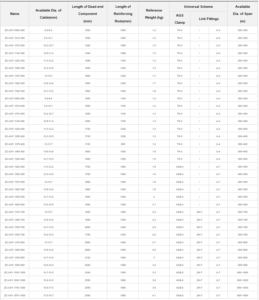

■ Model Specification (Span ＜ 200m):
Note:
1. The maximum unilateral suspension angle of a single suspension clamp is 15 ° – 18 °.
2. The above configuration is a conventional configuration. If special configuration is required, consult the technical department of the company.
