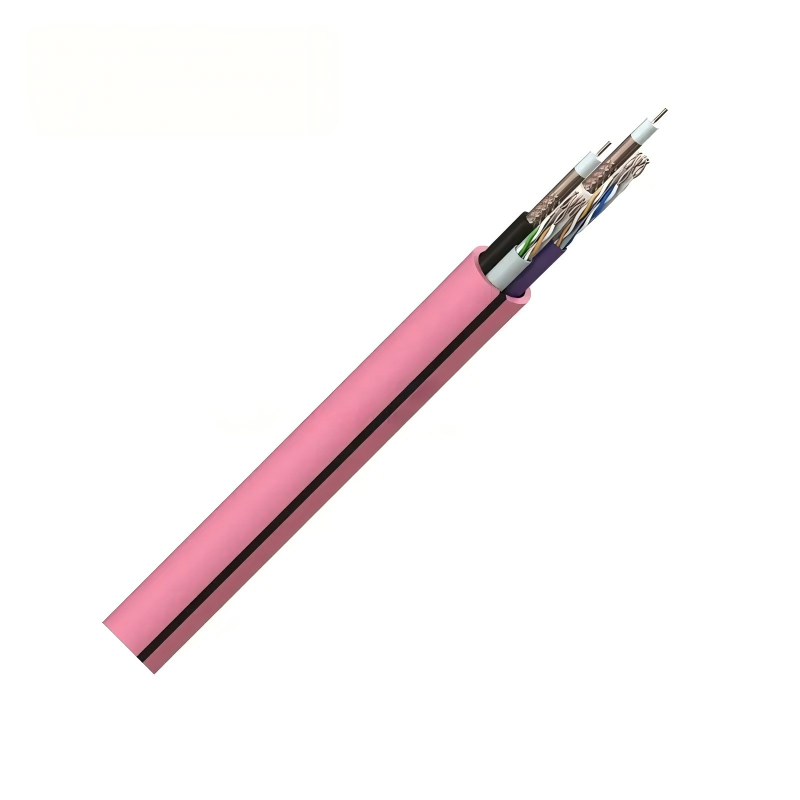

2× CAT 6 + 2× RG6(TV100) Coax PVC Cable

MCC3 Media Composite Cable

Construction：

2 x Cat 6 UTP
Conductor Material & SizeBare Copper, 23(1)AWG
Insulation MaterialHDPE
Number of Pairs4
Pair IdentificationWhite/Blue, Blue/White
White/Orange, Orange/White
White/Green, Green/White
White/Brown, Brown/White
Sheath MaterialPVC
Sheath Colour1 x Grey, 1 x Violet
2 x TV 100
Conductor MaterialBare Copper
Conductor Size1.02mm
Insulation MaterialFPE
Overall Screen 1Bare Copper Foil
Overall Screen 2Bare Copper Wire Braid, (≥ 55% Coverage)
Sheath MaterialPVC
Sheath Colour1 x Black, 1 xWhite

Overall Construction：

Sheath MaterialPolyvinyl Chloride (PVC)
Sheath ColourPink + Black Stripe

Electrical Characteristics:

Cat 6 UTP
Nominal Impedance100 ± 15 Ω (1-250MHz)
Max. Conductor Resistance@ 20°c≤ 9.50 Ω/100m
Max. Conductor Resistance Unbalanced≤ 5.0 %
Mutual Capacitance≤ 5.6 nF/100m
Capacitance Unbalanced to Earth≤ 330 pF/ 100m
Max. Delay Skew≤ 45 ns/ 100m
Voltage Rating30 V
Test Voltage2.5kV (AC)
2 x TV 100
Nominal Impedance75 ± 3 Ω
Max. Conductor Resistance@ 20°c≤ 23.5 Ω/km
Outer Conductor Resistance@ 20°c≤ 15 Ω/km
Capacitance53 ± 3 pF/m
NVP83 %
TV 100 Electrical Performance
AttenuationReturn Loss
Frequency
(MHz)		Attenuation
(dB/100m)		Frequency
(MHz)		Attenuation
(dB/100m)		Frequency
(MHz)		dB
51.686019.530 – 470≥ 23
504.6100021.5470 – 862≥ 20
1006.5175029.0862 – 2150≥ 18
2009.5215032.5
46015.0
Cat 6 UTP Transmission Performance
Frequency1410162031.2562.5100200250300400500MHz
Attenuation2.033.785.957.68.4710.6715.3819.828.9832.8534.041.147.1dB
Return Loss20.023.025.025.025.023.621.520.118.017.39.28.07.0dB
NEXT74.365.359.356.254.851.947.744.339.838.334.031.930.4dB
PS NEXT72.363.357.354.252.849.945.442.337.836.331.429.327.6dB
ELFEXT67.855.849.747.841.837.931.927.821.819.814.612.110.2dB
PSELFEXT64.852.844.840.738.834.928.924.818.816.811.69.17.2dB

Physical Characteristics:

Overall Diameter17.5 ± 1.0mm
Bend Radius15 x OD
Temperature Rating-10°C to 70°C
Weight220 kg/km

Standards:

Cat 5E UTP PVC
Manufactured in Accordance toTIA/EIA 568-C.2, ISO/IEC 11801
ApprovalHDBaseT

Overall Construction:

Flame RetardantBS EN 60332-1-2
RoHS3 CompliantYes
CE CompliantLVD (2014/35/EU), CPR (305/2011)
CPR ClassificationEca (EN50575:2014+A1:2016)
