Performance:
- Voltage Rating : 600V
- Temperature Rating : -40°C to +85°C
Construction:
Conductor:
- Bare Copper
Insulation:
- Solid Polyethylene
Shield:
- Aluminum Foil, Braided Copper Shield
Sheath:
- PVC (Polyvinyl Chloride)
Sheath Colour :
- Black
- White
- Customized
Standard:
- ISO 9001:2015 Certified
Application:

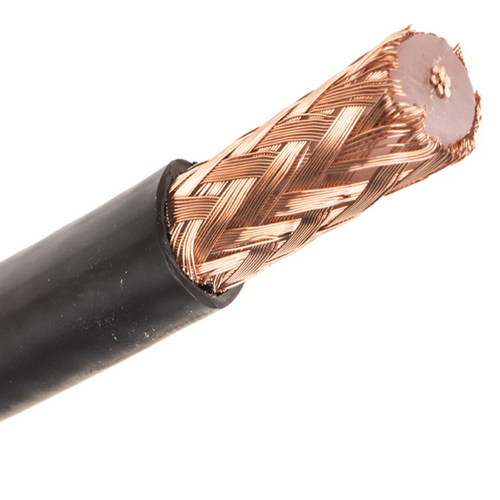

- RG213 Coaxial Cable is designed for applications that require high-power and low-loss signal transmission. It is commonly used in telecommunications, military communications, high-frequency radio equipment, and other demanding RF (Radio Frequency) applications. RG213 provides excellent shielding and robust construction, ensuring reliable signal transmission even in harsh environments.
Specification:
| Cable Type | RG213 Coaxial Cable |
| Conductor Material | Bare Copper |
| Conductor Size | 14 AWG |
| Shielding Material | Tinned Copper Braid |
| Shielding Coverage | 95% |
| Impedance | 50 Ohms |
| Nominal Capacitance | 29.6 pF/ft |
| Attenuation | 2.8 dB/100 ft at 1000 MHz |
| Velocity of Propagation | 66% |
| Return Loss | ≥ 23 dB |
| Operating Temperature | -40°C to +80°C |
| Insulation Material | Foam Polyethylene |
| Insulation Thickness | 0.285 inches |
| Jacket Material | PVC / Low Smoke Zero Halogen (LSZH) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
Packing & Delivery:
1、Packing by roll, drum, spool or customized;
2、Delivery by sea or air.
FAQ:
Q1: Are you manufacturer?
A1: Yes, we are the professional manufacturer of wire and cable for more than 10 years.
Q2: How about the delivery time?
A2: About 15 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
