Performance:
- Voltage Rating : 250V
- Temperature Rating : -55°C to +200°C

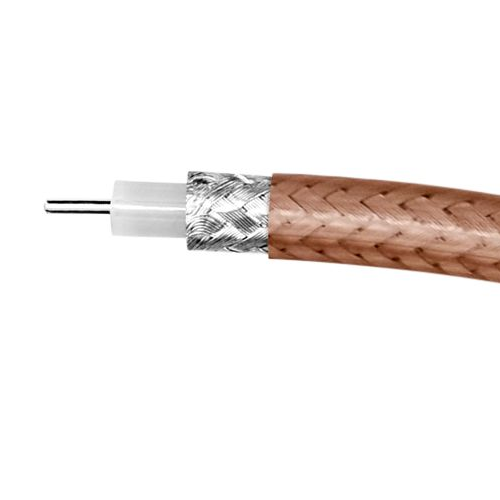

Construction:
Conductor:
- Silver-Plated Copper
Insulation:
- PTFE (Polytetrafluoroethylene)
Shield:
- Silver-Plated Copper Braid
Sheath:
- FEP (Fluorinated Ethylene Propylene)
Sheath Colour :
- White
- Customized
Standard:
- ISO 9001:2015 Certified
Application:

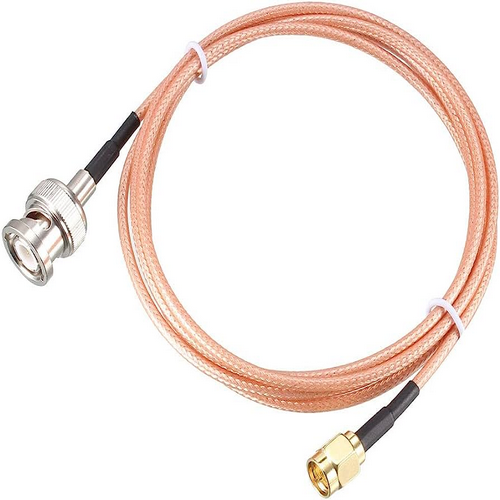

- RG316 Coaxial Cable is designed for applications requiring high-frequency signal transmission in harsh environments. It offers excellent flexibility and can withstand extreme temperatures, making it suitable for aerospace, military, and industrial applications. RG316 is commonly used in RF (Radio Frequency) systems, wireless communications, radar systems, and test equipment.
Specification:
| Cable Type | RG316 Coaxial Cable |
| Conductor Material | Silver-Plated Copper |
| Conductor Size | 26 AWG |
| Shielding Material | Silver-Plated Copper Braid |
| Shielding Coverage | 95% |
| Impedance | 50 Ohms |
| Nominal Capacitance | 32.5 pF/ft |
| Attenuation | 4.1 dB/100 ft at 1000 MHz |
| Velocity of Propagation | 69% |
| Return Loss | ≥ 20 dB |
| Operating Temperature | -40°C to +85°C |
| Insulation Material | PTFE (Polytetrafluoroethylene) |
| Insulation Thickness | 0.086 inches |
| Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
Packing & Delivery:
1、Packing by roll, drum, spool or customized;
2、Delivery by sea or air.
FAQ:
Q1: Are you manufacturer?
A1: Yes, we are the professional manufacturer of wire and cable for more than 10 years.
Q2: How about the delivery time?
A2: About 15 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
