Performance:
- Data Transfer Rate: Up to 100 Mbps
- Bandwidth: 100 MHz
- Voltage Rating: 300V
- Temperature Rating: -20°C to +60°C

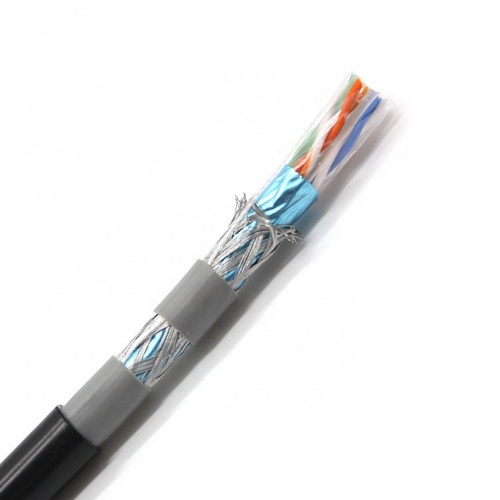

Construction:
- Conductor: Solid or Stranded Copper
- Insulation: Polyethylene (PE)
- Twisted Pairs: 4 pairs of twisted wires
- Shielding: Unshielded (UTP) or Foil Shielded (FTP)
- Core Identification
- Pair 1: Blue White/Blue
- Pair 2: Orange White/Orange
- Pair 3: Green White/Green
- Pair 4: Brown White/Brown
- Sheath: PVC (Polyvinyl Chloride)
- Sheath Colour : Blue, Gray, or Customized
Standard:
- ISO / IEC 11801, TIA 568C.2
- Flame Retardant according to BS EN/IEC 60332-1-2
Application:
- CAT5 Ethernet Cable is widely used for network connections in homes, offices, and small to medium-sized businesses. It provides reliable and cost-effective data transmission for applications such as internet browsing, email, and basic file sharing. CAT5 cables are suitable for local area networks (LANs), IP cameras, VoIP (Voice over IP) phones, and other Ethernet-based applications.
Specifications:
| Cable Type | Cat5 Ethernet Cable |
| Conductor Material | Copper |
| Conductor Size | 24 AWG |
| Pair Count | 4 pairs |
| Twisted Pair Structure | UTP (Unshielded Twisted Pair) |
| Impedance | 100 Ohms |
| Nominal Capacitance | 14.8 pF/ft |
| Maximum Frequency | 100 MHz |
| Attenuation | 22.0 dB/100 m at 100 MHz |
| Insulation Material | Polyethylene |
| Jacket Material | PVC / Low Smoke Zero Halogen (LSZH) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
