erformance:
- Data Transfer Rate: Up to 10 Gbps
- Bandwidth: 600 MHz
- Voltage Rating: 600V
- Temperature Rating: -20°C to +75°C

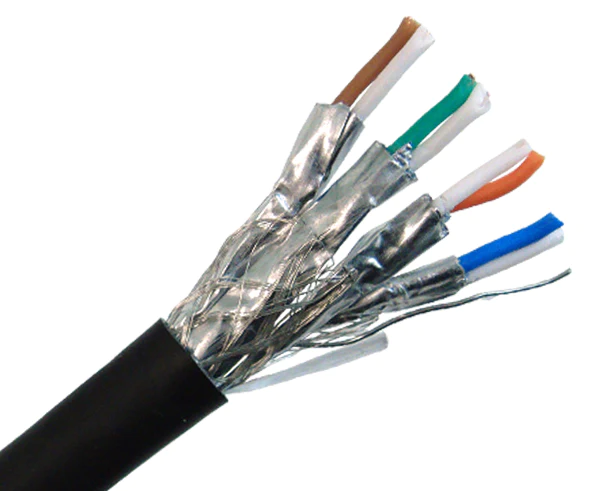

Construction:
- Conductor: Solid or Stranded Copper
- Insulation: Foamed Polyethylene (FPE)
- Twisted Pairs: 4 individually shielded pairs
- Shielding: Overall Foil Shielding (S/FTP) with additional individual pair shielding
- Core Identification
- Pair 1: Blue White/Blue
- Pair 2: Orange White/Orange
- Pair 3: Green White/Green
- Pair 4: Brown White/Brown
- Sheath: LSZH (Low Smoke Zero Halogen)
- Sheath Color: Blue, Gray, or Customized
Standard:
- ISO / IEC 11801, TIA 568C.2
- Flame Retardant according to BS EN/IEC 60332-1-2
Application:
- CAT7 Ethernet Cable is designed for high-speed and reliable network connections in demanding environments. It supports data transfer rates of up to 10 Gbps and provides excellent noise and interference resistance. CAT7 cables are commonly used in data centers, server rooms, high-performance computing, and other applications requiring high-speed data transmission and low latency. They are suitable for future-proofing network infrastructure and supporting emerging technologies such as 10GBASE-T Ethernet.
Specifications:
| Cable Type | Cat7 Ethernet Cable |
| Conductor Material | Copper |
| Conductor Size | 23 AWG |
| Pair Count | 4 pairs |
| Twisted Pair Structure | S/FTP (Shielded and Foiled Twisted Pair) |
| Shielding Material | Overall Foil Shield with Individual Pair Shielding |
| Impedance | 100 Ohms |
| Nominal Capacitance | 15.6 pF/ft |
| Maximum Frequency | 600 MHz |
| Attenuation | 16.8 dB/100 m at 600 MHz |
| Crosstalk | Next (Near-End Crosstalk): ≥ 70 dB |
| PS-NEXT (Power Sum NEXT): ≥ 67 dB | |
| ACR-N (Attenuation to Crosstalk Ratio Near): ≥ 50 dB | |
| ELFEXT (Equal Level Far End Crosstalk): ≥ 65 dB | |
| Insulation Material | Polyethylene |
| Jacket Material | PVC / Low Smoke Zero Halogen (LSZH) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
