Performance:
- Data Transfer Rate: Up to 40 Gbps
- Bandwidth: 2 GHz
- Voltage Rating: 300V
- Temperature Rating: -20°C to +75°C

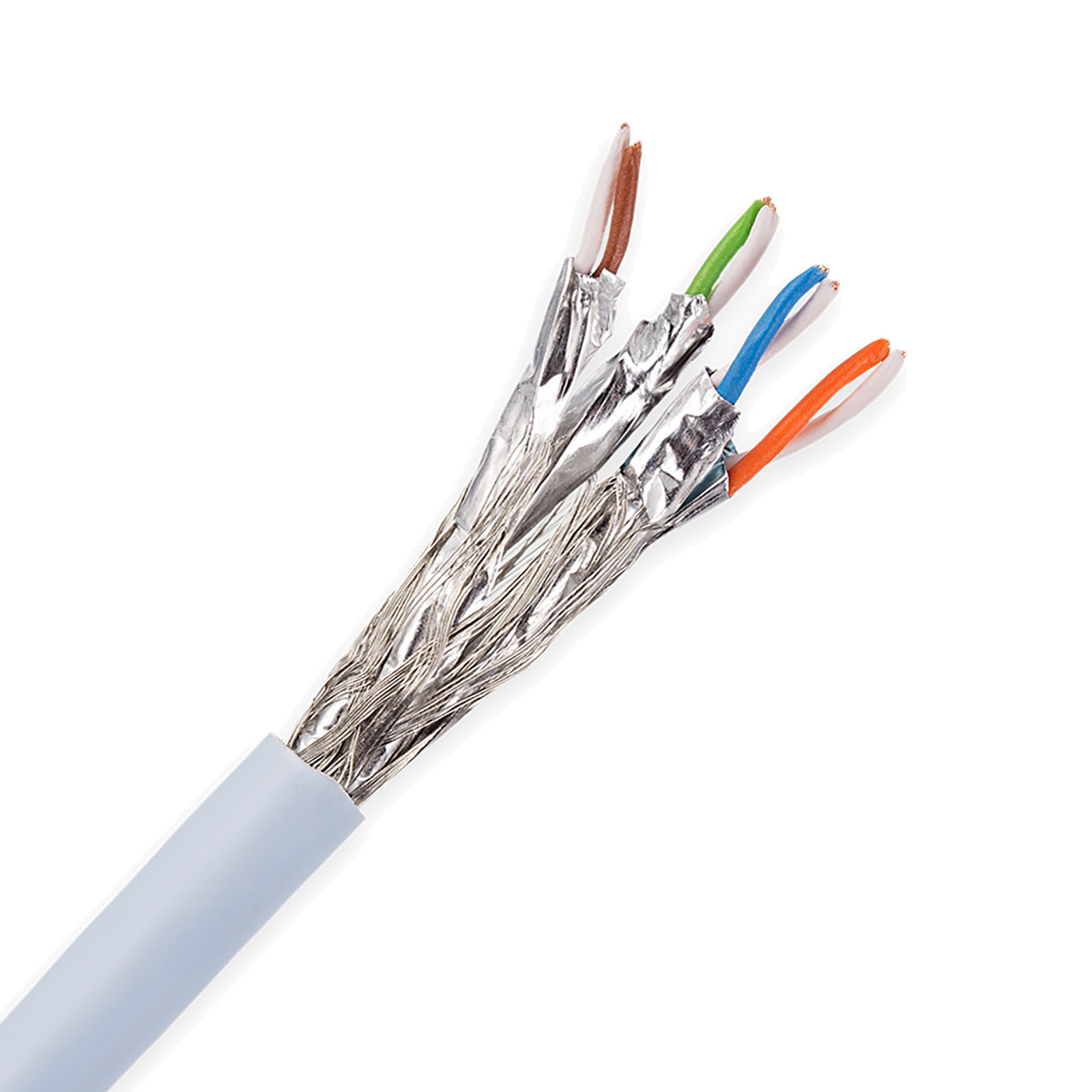

Construction:
- Conductor: Solid or Stranded Copper
- Insulation: Polyethylene (PE)
- Twisted Pairs: 4 individually shielded pairs
- Shielding: Overall Foil Shielding (S/FTP) with additional individual pair shielding
- Core Identification
- Pair 1: Blue White/Blue
- Pair 2: Orange White/Orange
- Pair 3: Green White/Green
- Pair 4: Brown White/Brown
- Sheath: PVC (Polyvinyl Chloride)
- Sheath Color: Blue, Gray, or Customized
Standard:
- ISO / IEC 11801, TIA 568C.2
- Flame Retardant according to BS EN/IEC 60332-1-2
Application:
- CAT8 Ethernet Cable is designed for ultra-high-speed and reliable network connections in demanding environments. It provides exceptional performance and bandwidth, making it suitable for applications such as data centers, server rooms, high-performance computing, and 25GBASE-T and 40GBASE-T Ethernet networks. CAT8 cables offer future-proofing for emerging technologies and support advanced networking requirements, including high-density data transmission and low-latency applications.
Specifications:
| Cable Type | Cat8 Ethernet Cable |
| Conductor Material | Copper |
| Conductor Size | 22 AWG |
| Pair Count | 4 pairs |
| Twisted Pair Structure | S/FTP (Shielded and Foiled Twisted Pair) |
| Shielding Material | Overall Foil Shield with Individual Pair Shielding |
| Impedance | 100 Ohms |
| Nominal Capacitance | 13.5 pF/ft |
| Maximum Frequency | 2000 MHz |
| Attenuation | 12.7 dB/100 m at 2000 MHz |
| Crosstalk | Next (Near-End Crosstalk): ≥ 90 dB |
| PS-NEXT (Power Sum NEXT): ≥ 87 dB | |
| ACR-N (Attenuation to Crosstalk Ratio Near): ≥ 70 dB | |
| ELFEXT (Equal Level Far End Crosstalk): ≥ 88 dB | |
| PS-ACR-F (Power Sum Attenuation to Crosstalk Ratio Far): ≥ 73.8 dB | |
| Insulation Material | Polyethylene |
| Jacket Material | PVC / Low Smoke Zero Halogen (LSZH) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
