Performance:
- Data Transfer Rate: Up to 10 Gbps
- Bandwidth: 250 MHz
- Voltage Rating: 300V
- Temperature Rating: -20°C to +75°C

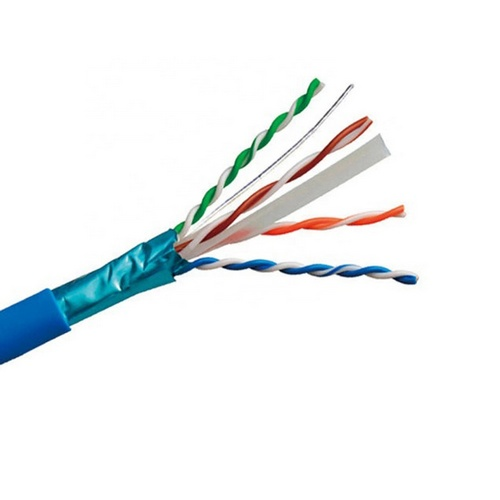

Construction:
- Conductor: Solid or Stranded Copper
- Insulation: Polyethylene (PE)
- Twisted Pairs: 4 pairs of twisted wires
- Shielding: Aluminum Foil, Braided Copper Shield
- Core Identification
- Pair 1: Blue White/Blue
- Pair 2: Orange White/Orange
- Pair 3: Green White/Green
- Pair 4: Brown White/Brown
- Sheath: PVC (Polyvinyl Chloride)
- Sheath Color: Blue, Gray, or Customized
Standard:
- ISO / IEC 11801, TIA 568C.2
- Flame Retardant according to BS EN/IEC 60332-1-2
Application:
- CAT6 Ethernet Cable is designed for high-speed and reliable network connections. It supports data transfer rates of up to 10 Gbps, making it suitable for demanding applications such as video streaming, online gaming, and large file transfers. CAT6 cables are commonly used in local area networks (LANs), home networks, office networks, data centers, and other Ethernet-based applications.
Specifications:
| Cable Type | Cat6 Ethernet Cable |
| Conductor Material | Copper |
| Conductor Size | 23 AWG |
| Pair Count | 4 pairs |
| Twisted Pair Structure | UTP (Unshielded Twisted Pair) |
| Impedance | 100 Ohms |
| Nominal Capacitance | 15.6 pF/ft |
| Maximum Frequency | 250 MHz |
| Attenuation | 19.8 dB/100 m at 250 MHz |
| Crosstalk | Next (Near-End Crosstalk): ≥ 43 dB |
| PS-NEXT (Power Sum NEXT): ≥ 41.3 dB | |
| ACR-N (Attenuation to Crosstalk Ratio Near): ≥ 29 dB | |
| Insulation Material | Polyethylene |
| Jacket Material | PVC / Low Smoke Zero Halogen (LSZH) |
| Jacket Thickness | 0.032 inches |
| Brand | Customizable |
